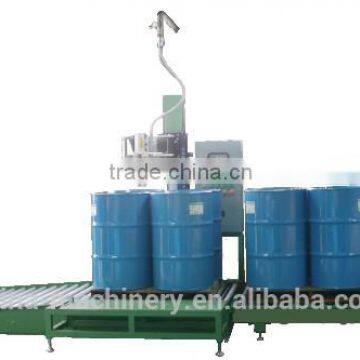

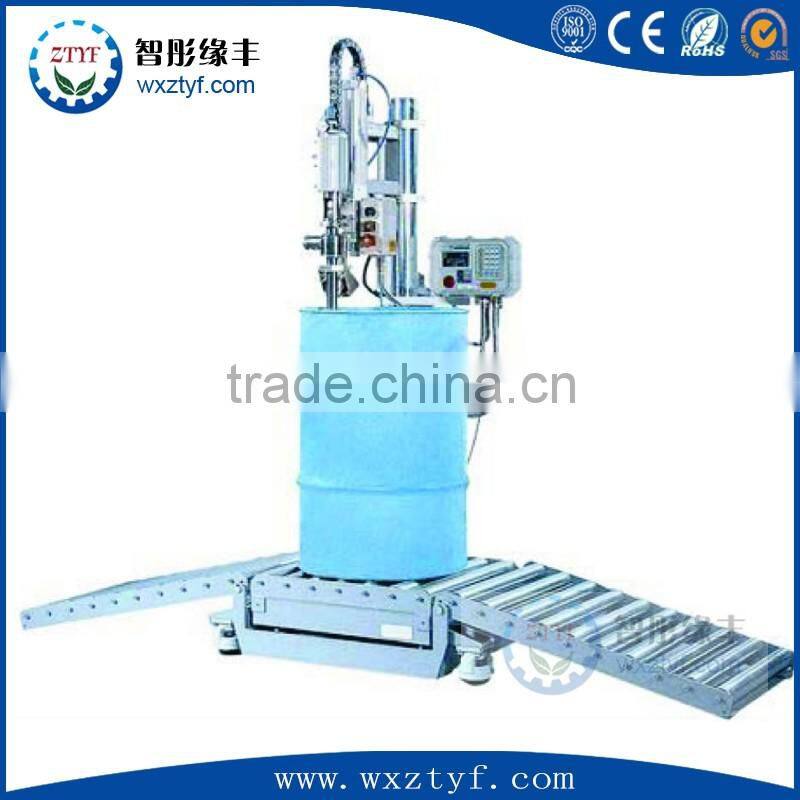

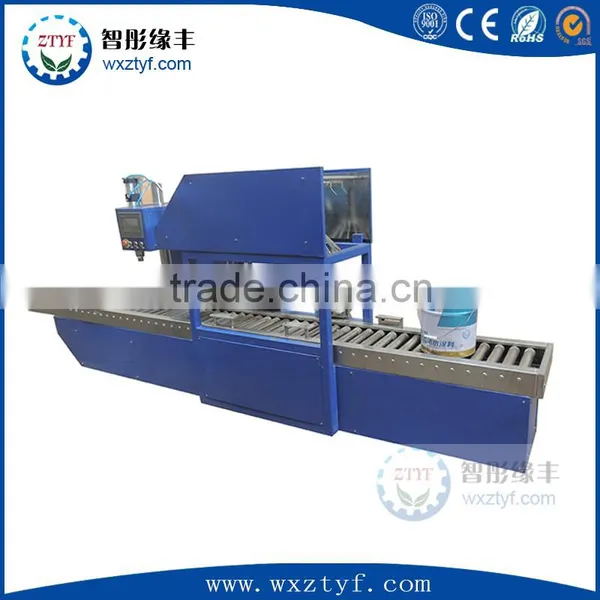

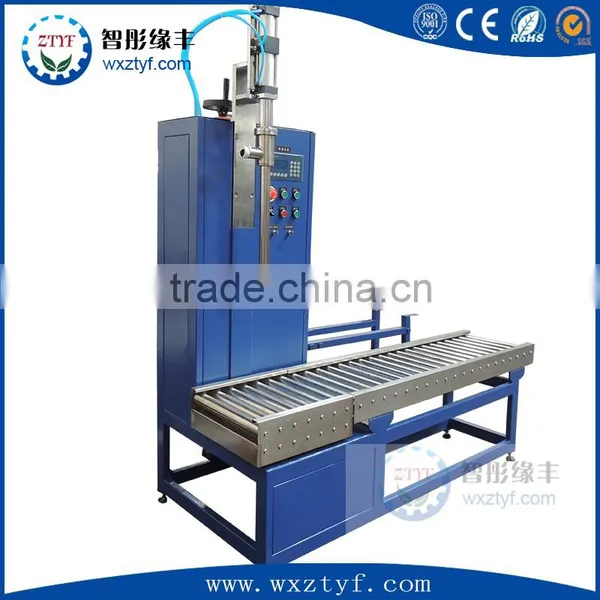

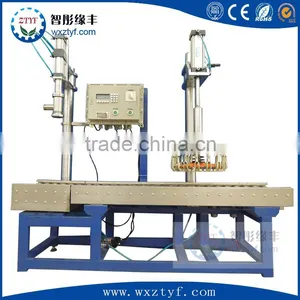

Pneumatic Weighing Type Semi-auto Paint Liquid Filling Machine

GS-TL-01 Drum filling equipment

Pneumatic Weighing Type Semi-auto  Paint Liquid Filling Machine Using Areas:

It is mainly used in paint, ink, paint, asphalt, glue, lubricants, petrochemicals, fine chemicals and other industries for liquid, fluid, paste product filling.

Main features:

Using weighing filling, high accuracy is not affected by the material. By the fast increase and slow feeding valves plus composition, both to improve filling speed but also improve filling accuracy, measurement error of less than 10 g / barrel. Filling head adopts anti-drip device, filling out materials without bubbles, good effect. Automatic control of material feed unit can be equipped with a screw cap.

Type:

From the different ways of filling into submerged, splash style and hinder drawing three. From the nature of the filling material distinction explosion-proof type and general type two kinds.

The basic structure:

Semi-automatic filling machine by feeding system, weighing system, consisting of four parts closure system, rack, pneumatic control systems. Feeding system through the cylinder by a solenoid valve, respectively, to perform fast and slow feed. By the load weighing system bracket, the sensor and the weighing station components. Weighing station through the sensor directly to the rack link. Stand by capping capping system, capping the cylinder cover and clip or gland plate components.

Filling range: 1-10kg, 10-50kg, 50-90kg, 100-300kg, 200-1000kg

Filling speed: 1610-240 barrels / hour

Filling error: ± 0.2%

Power: 220V, 50 / 60Hz (can be customized according to customer requirements)

Gas source: Flow 0.1m3 / min

Pressure 0.4 ~ 0.6MPa

Operating temperature: 0 ℃ ~ 40 ℃

Rail transport: no power track, length 1300mm

Note: * When are subject to high temperature, high pressure, flammable, explosive, corrosive and other conditions, must provide detailed data to be customized selection.
