♦Specifications
paint filling machine Used in the quantitative filling of chemical, oil, asphalt, glue ,white glue bricating greaseand ,ect
he paint filling machine consists of feeding system, weighing filling system, stainless roller system, sealing system, rack, pneumatic control, electrical control and other systems.
The weighing system consists of weighing support, sensor, weighing platform. The feeding valve consists of two filling valves (Fast Fill and Slow Fill) which not only can speed up filling speed but also filling accuracy. In the adjustment range of the filling quantity, you can set the filling weight and other weight parameters willfully.
Semiautomatic Filling Machine(Weighing Type )adopts gravimetric method to measure, by weighing sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipped with a pump in the front end of the feeding port, or pressuring the material tanks to sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. The equipment has advantages of high filling efficiency and small filling error.
Semiautomatic Filling Machine (Weighing Type ) is widely used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc.. It is not only suitable for the filling of liquid, but also for filling of ointment product.
Introduction

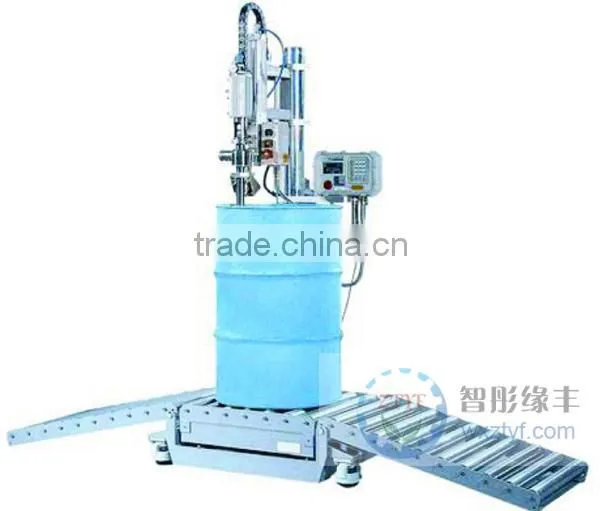

Liquid Filling Machine (Drum) is mainly used in industries such as coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fine chemical etc. It is suitable for filling liquid, ointment products.
Features
It adopts weighing type filling, so the filling accuracy is high and the filling will not be affected by different materials. It consists of two filling valves (Fast Fill and Slow Fill), which only can speed up filling speed but also increase filling accuracy. Its measure error is ±0.2%. Filling head adopts anti-drip device. The filled materials are without bubbles generated and with good effect. Material filling is automatically controlled. Pneumatic lid-clamping and lid-pressing device are optional.
Specification
- Power supply:220V,50/60Hz
- Filling speed:10-100 drums/h
- Filling error:±0.2%
- Air Consumption:Flux 0.1m3/h, pressure 0.4~0.6MPa
- Working temperature:0°C~40°C
- Inlet:DN50~DN100
- Filling range:50-1000L
- Materials:Wetted part of SS304 or SS316L
- Environment requirement:Explosive proof or Non explosive proof

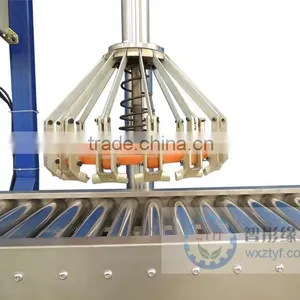

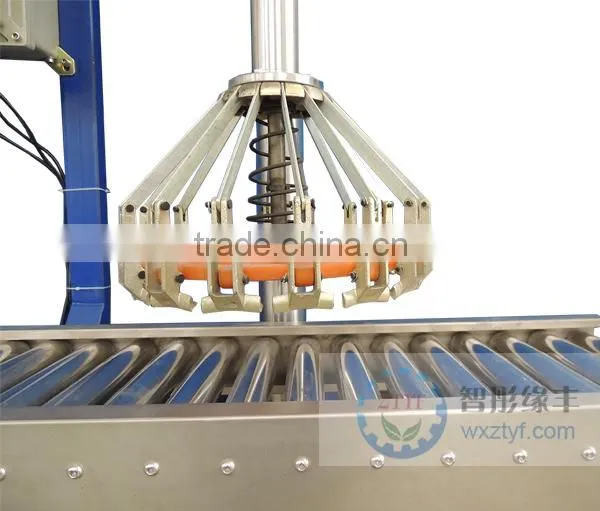

- Capping device:Pneumatic lid-spinning device
Application
Coating, paint, printing ink, dye, pigment, adhesive, pesticide etc
Factory production view :
