Features
Our Electric pickup truck has following features:
- Independent suspension, helix spring and shock absorber
- Digital meter with headlights, turn signals, brake lights
- Radio and MP3 receiver, optional CD player
- Four wheel hydraulic drum brake and foot parking brake
- Curtis controller and Trojan Battery are imported from US manufacturer directly
Application
Our Electric pickup truck can be used in many places.
- Resort
- Hotel
- Theme Park
- Amusement Park
- Residential Community
- Campus
- Station, Port
- Any place where a green, quiet and cost effective vehicle is needed
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor | Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 2 |
Range (loaded) (km)* |
up to 90 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4 |
| Max.climbing ability(loaded) | up to 25% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 530 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 3750x1400x1810 (LxWxH) |
| Min.ground clearance (mm) | 140 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 1160 |
| Rear wheel tread (mm) | 1150 |
| Item | Description |
| Frame & Chassis | Welded steel framework with sand blasting and painting |
| Body | FRP and Plastic |
| Roof | FRP with steel frame, with roof handle |
| Windshield | Laminated glass with wiper |
| Roof supports | Steel |
| Seat | Reborn sponge with artificial leather, high back, with formed armrest |

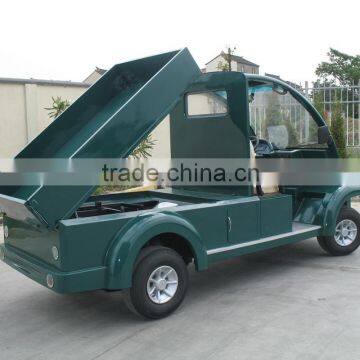

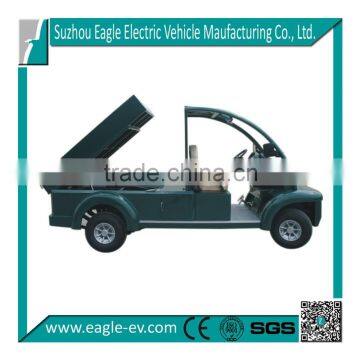

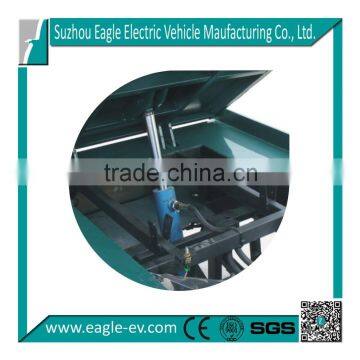

| Rear cargo box | Steel, rear fender foldable, with hydraulic lifting function |
| Floor | Bamboo floor with Skidproof leather |
| Dashboard | FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc.. |
| Side rear view mirror | 2pcs |
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | including switch for headlight, turning light, wiper and horn |
| DC/DC converter | 48V/12V |
| Digital Meter | with Current meter, voltometer, speedometer, odometer and various indicators |
| Audio system | Radio with MP3 receiver and 2 waterproof speaker |
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, steel differential case, 12.49:1 gear ratio |
| Wheel & Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Inner rear view mirror | 6 | CD player |
| 2 | Seatbelt (2-point or 3-point) | 7 | Wired mircophone |
| 3 | Battery watering pipe | 8 | Solar panel (built in) |
| 4 | Water pump (handle) | 9 | 10x6 aluminum rim |
| 5 | Rain cover |
We provide many color options to our Electric pickup truck, customized color is available with extra cost.
| Item | Pure white | Pure black | Red |
|
Body (exclude roof) |
|
||
| Metallic green | Champagne | Navy blue | |
| |||
Electric pickup truck will be packed in steel crate
| Container loading qty | Assembled | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 | |
| 40'HQ | 2 |
Our main products category includes
| Electric Golf Cart | Electric Golf People Mover | Electric Utility Vehicle |
| Electric sightseeing bus (shuttle bus) | Electric Personal Carrier | Electric Hunting buggy (Lifted Car) |
| Electric Industrial Truck | Electric Garbage Truck | Electric Fire Truck |
| Electric Hotel/Resort Car | Electric Classic Car | Other Special Vehicle |
- One of the first movers of low speed 4 wheel electric vehicles business in China;
- Private company with capital of USD16,000,000.00;
- Founded in 1999 with more than 400 employees including more than 70 engineers;
- ISO9001, IS14001, SGS, WMI certified;
- Annual sales volume of more than 10,000 to more than 80 countries around the world;
- 20,000 square meters workshop with 3 production lines
Find some photos below for your reference! You can view our Company Profile for more information!
Suzhou Eagle has passed and got the certificates of ISO9001-2008 for quality management system and ISO14001-2004 for environmental management system.This golf cart has pass CE (EMC) test.
1. What is your lead time for production?
The typical lead time of our vehicles is 2-3 weeks.
2. What kind of warranty Eagle provides?
We provide 13 months warranty to the vehicles sold from the shipping date. At the same time, we will provide some FOC spare parts for rapid worn parts.
3. What kind of payment methods can you accept?
Normally we can accept T/T and L/C at sight.
4. What is your MOQ?
We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.
5. Can I put my own Logo on the vehicles?
Yes, you can put your own Logo on the vehicles.
6. Do you provide OEM service?
Yes, we do provide OEM service. However, we will require minimum 500 units vehicles yearly for OEM project.
7. Can you customize the vehicles according to our special request?
Yes, we can customize the vehicles according to your request unless the customization is not related to the chassis and mold of any parts.
8. Do you supply spare parts if I buy your vehicles?
Yes, we supply all the spare parts used in our vehicles at reasonable price and lead time. Furthermore, for the model which we stopped production, we even supply spare parts in 5 years from the year we stopped it.
9. Do you provide after service if I buy your vehicles
We will provide spare parts and technical support for after service. However, if any parts need to replace, you will need to do this yourselves, we will provide instruction if needed.
10. Do you provide spare parts book and operational manual?
Yes, we provide them. The operational manual will be sent together with the vehicles. The spare parts book will be sent via email separately.
11. What is the order procedure?
The typical order procedure is as following.
You send us the PO with all your request;
We send you back the International Sales Contract, Sales Confirmation and Proformal Invoice ;
You signed back the International Sales Contract and Sales Confirmation;
You arrange the down payment or issue the L/C (send us the draft first for confirmation before original one is issued);
We arrange the production after receive the down payment or original L/C;
We book the space according to the estimated finish date of the vehicles;
You arrange the balance payment before container loading if the payment term is T/T in advance;
We send you the shipping documents after shipping date;
You arrange the balance payment if the payment term is L/C at sight.
12 Do you provide Trade Assurance via Alibaba?
Yes, we do. Trade Assurance order is welcomed!
