Features

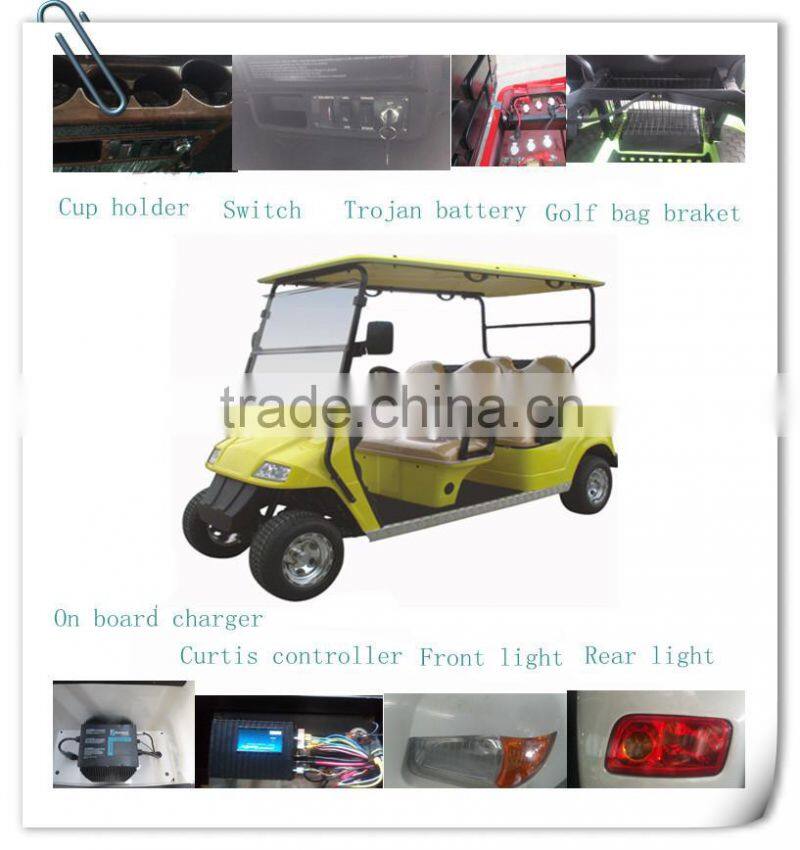

Our 4 seat electric golf cart EG2048K has following features:
- Elegant shape design with all around coating chassis
- Front independent suspension and rear taper leaf spring and shock absorber
- LED taillight and front working light
- High/ Low headlight
- Curtis Controller and Trojan Battery are imported from US manufacturer directly
Application
Our 4 seater electric golf cart can be used in many places.
- Golf Course
- Resort
- Hotel
- Theme Park
- Amusement Park
- Garden
- Residential Community
- Inside factory
- Shopping mall
- Musuem
- Campus
- Station, Port
- Any place where a green, quiet and cost effective vehicle is needed.
| Specifications | Model | EG2048K |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available | |
| Battery | Trojan battery | |
| Motor | ADC motor or Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, | |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 100 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4.5 | |
| Max. climbing ability (loaded) | Up to 25% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 320kgs | |
| Dimensions | Overall dimensions (mm) | 3110X1180X1890 |
| Min. ground clearance (mm) | 120 | |
| Wheelbase (mm) | 2450 | |
| Front wheel tread (mm) | 855 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Injected plastic | |
| Electric system | Lighting system and horn | Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake | |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated, | |
| Wheel & Tyre | Alumimum wheel & 205/50-10 Tyre | |
| Options | Hinged Windshield | |
| Stainless steel package | ||
| Meter(available for 48V system) | ||
| 2 point seat belt | ||
| Formed seat&backrest vinyl | ||
| Wood finish Package | ||
| Inner & Side rear view mirror | ||
| Solar Panel | ||
| Cooler | ||
| on-body charger | ||
| Right hand drive system | ||
| 4-wheel hydraulic brake system | ||
| Enclosure | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
We provide many color options to our 6 seat club car golf car, customized color is available with extra cost.
| Item | Pure white | Pure black | Red |
|
Body (exclude roof) |
|
||
| Metallic green | Champagne | Navy blue | |
| |||
| Container size | Assembled | Disassembled | Refer pic |
| 20'ft | 2 | 4 | |
| 40'ft | 4 | 12 | |
| 40'HQ | 4 | 18 |
- One of the first movers of low speed 4 wheel electric vehicles business in China;
- Private company with capital of USD16,000,000.00;
- Founded in 1999 with more than 400 employees including more than 70 engineers;
- ISO9001, IS14001, SGS, WMI certified;
- Annual sales volume of more than 10,000 to more than 80 countries around the world;
- 20,000 square meters workshop with 3 production lines
- 18 sales persons and 20 after service people to support customers
Find some photos below for your reference! You are view our Company Profile for more information!
Suzhou Eagle has passed and got the certificates of ISO9001-2008 for quality management system and ISO14001-2004 for environmental management system.This golf cart has pass CE (EMC) test.
1. What is your lead time for production?
The typical lead time of our vehicles is 2-3 weeks.
2. What kind of warranty Eagle provides?
We provide 13 months warranty to the vehicles sold from the shipping date. At the same time, we will provide some FOC spare parts for rapid worn parts.
3. What kind of payment methods can you accept?
Normally we can accept T/T and L/C at sight.
4. What is your MOQ?
We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.
5. Can I put my own Logo on the vehicles?
Yes, you can put your own Logo on the vehicles.
6. Do you provide OEM service?
Yes, we do provide OEM service. However, we will require minimum 500 units vehicles yearly for OEM project.
