Specifications
led tube shell connector1.300-2400mm
2.5-44W
3.DLC ETL VDE TUV SAA C-Tick CE ROHS IP65
4.50000H

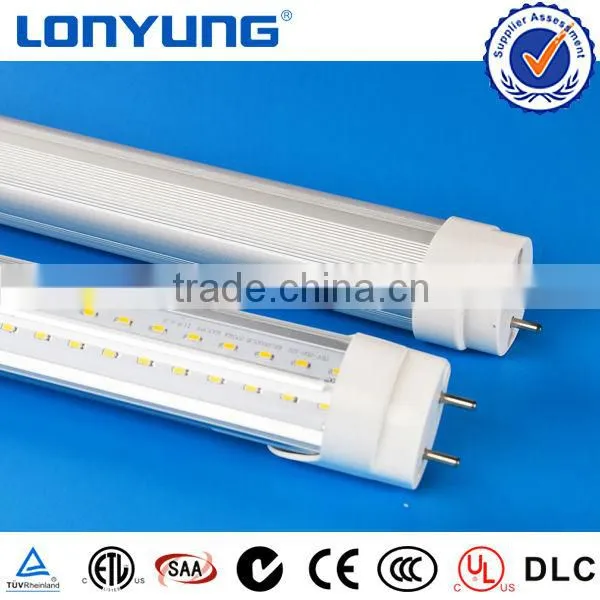

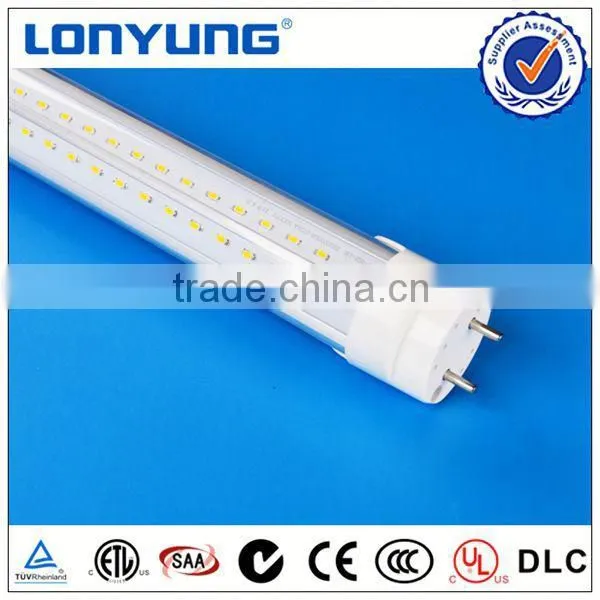

T8 led v-type tube light led tube shell connector ETL TUV SAA C-Tick CE ROHS Approved
Features
- Good heat dissipation and excellent driver
- BV DLC ETL TUV SAA C-tick CE RoHS Certification Approval
- High quality & competitive price
- Energy saving up to 80% high intensity
- Inner power efficiency more than 87%
- Constant current driver with heat protection systerm,can work under unstable voltage
- Isolated power supply is available
- Minimum maintenance costs
- No Modification, no need rewire
- No RF interference, No flickering or buzzing
- Solid State, high shock/vibration resistant
APPLICATION
- Houses, offices, exhibitions, meeting room
- hotels, restaurants, schools, factories, hospitals
- workshops, storages, roads, streets, etc
Description : |
T8 Led Tube |
Color Temperature : |
2700K - 6500K |
Led Model : |
SMD3014 |
Beam Angles: |
120degree |
Input Voltage : |
100-240V / 100V-277V |
Material: |
Aluminum |
Diffuser : |
PC White or PC Transparent |
Power Efficiency: |
>85% |
Power Factor : |
>0.9 |
LED color index (CRI): |
Ra > 75 |
Working Temperature: |
-30°C - 60°C |
Average lifetime: |
50000hours |
Certification : |
ETL DLC TUV SAA C-tick CE RoHs IP65 |
| LED V-Type Tube | |||||
|---|---|---|---|---|---|
| Model No | Type | Watt | LED Chip Qty | Luminous Flum | Size |
| LY-T8L600-10W V | T8 | 10W | 132PCS | 1000Lm | 602L *28W*32H( mm) |
| LY-T8L900-15W V | T8 | 15W | 192PCS | 1500Lm | 908L*28W*32H( mm) |
| LY-T8L1200-20W V | T8 | 20W | 312PCS | 2000Lm | 1212L*28W*32H(mm) |
| LY-T8L1500-24W V | T8 | 24W | 360PCS | 2400Lm | 1513L*28W*32H(mm) |
| Voltage: 100V / 120V / 100V-240V / 220V-260V /277V | |||||
| LED Chipset: Lumenmax SMD 3014 Chip | |||||
| Color Temprature: 2700-3500K Warm white / 4000-4500K Natual white / 6000-6500K Cool white | |||||
| Materials: AL + Fireproof PC Cover --Clear or Frosted ; G13 Base | |||||
Packing list
Length(mm) |
Gift Box Size ( L*W*H )mm |
Carton(L*W*H) mm |
Qty/Carton ( Pcs ) |
N.W.(g) |
G.W.(KGS) |
LY-T8L600- 10WV |
613*36*32mm |
628*340*200mm |
50 |
220 |
17.00 |
LY-T8L900-15WV |
980*36*32mm |
995*201*200mm |
50 |
303 |
19.00 |
LY-T8L1200-20WV |
1285*36*32mm |
1295*210*200mm |
20 |
403 |
21.00 |
LY-T8L1500-24WV |
1524*36*32mm |
1540*210*200mm |
20 |
505 |
23.00 |
Our Factory :
About us (Professional factory)
*We are the ISO9001:2008 professional Led manufacturer in China and has 6 years
*Experience in R&D produce full range of Led tube.
*All our products are passed CE,RoHs,SAA,ETL,ULcertificates
*spread throughUSA,Canada,Germany,U.K. and Australia,etc.
....
....
