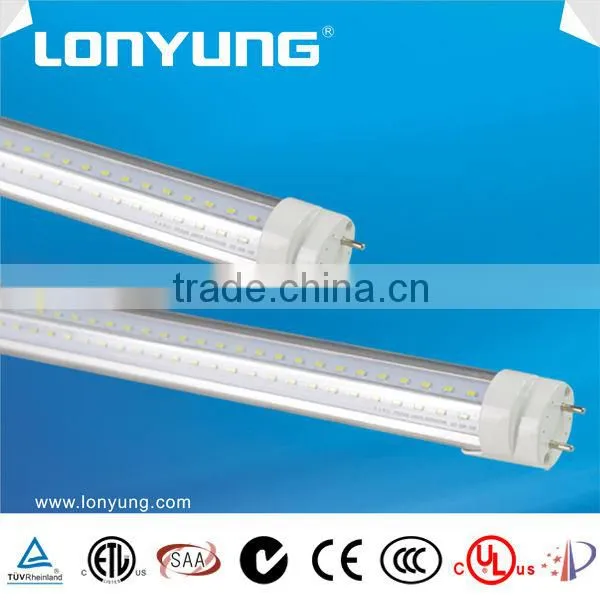

High brightness wide beam angle 240 degree ul t8 led tube

Specifications

wide beam angle 240 degree ul t8 led tube
1,ETL CE SAA C-tick TUV listed
2,factory price
3.lifespan:50,000hours

High brightness wide beam angle 240 degree ul t8 led tube



 1:Amercian,Canada Europe Market ETL UL SAA TUV CE RoHS Approval

 directly install with 100V 120V 220V 230V 240V  277V Power

 2:China Patent No: 201120066365.6,201130043458.2 ,had applied PCT patent

 one city will be one customers,agent,distributor





Specification:

Power Consumption:	18W
Colour Temperature:	2700-6500K
Luminous Flux:	1800LM
LED Model:	3014
Beam Angel:	120°
Input Power:	AC100-240V
Frequency:	50-60Hz
Power Factor:	>0.95
Power Efficiency:	>87%
Main Material	PC Optics & Aluminum
Outline Dimension:	Φ28(D)x1202(L)
Socket:	G 13
lifespan:	>50000Hours
Replace:	Fluorescent tube 36W
Warranty:	2-3years by customers request
Patent No.	2011103739811.0



All Sizes:



Model	Size	LED Qty	CCT	Power	Voltage	LM
LYT8DL600-9W1	600mm	96pcs SMD	2700-6500K	9W	AC100-240V	900LM
LYT8DL900-13W1	900mm	120pcs SMD	2700-6500K	13W	AC100-240V	1300LM
LYT8DL1200-15W1	1200mm	160pcs SMD	2700-6500K	15W	AC100-240V	1500LM
LYT8DL1200-18W1	1200mm	192pcs SMD	2700-6500K	18W	AC100-240V	1800LM
LYT8DL1200-21W1	1200mm	216pcs SMD	2700-6500K	21W	AC100-240V	2100LM
LYT8DL1500-22W1	1500mm	240pcs SMD	2700-6500K	22W	AC100-240V	2200LM
LYT8DL1800-25W1	1800mm	256pcs SMD	2700-6500K	25W	AC100-240V	2500LM



*About us*



For more than 4 years,we are leading a high-tech enterprise and a leader manufacturer in researching & development,manufacturing and after-sales servicing of led application lights,providing a wide range of led lights;LED T5 T8 T10 Tubes,flood light,street light,down lights,PAP lights,etc.Our products have received warm welcome and wide popularity all over the world ,particularly in Europe ,America,Australia...





*About our products*

 /High brightness

/Good heat dissipation and excellent driver

/CE, RoHS,UL,ETL,SAA,C-tick Certification

/High quality & competitive price

/No RF interference

/Energy saving up to 65% high intensity

/Special different view angles mixing lighting design

/Inner power efficiency more than 87%

/Constant current driver with heat protection systerm,can work under unstable voltage







*Aging test more than 72 hours*
