Specifications
Meeting geothermal heat pump1.14-years heat pump manufacturing experiences
2.Copeland scroll compressor
3.CE RoHS certified
geothermal heat pump,ground source heat pump work,heat pump for heating

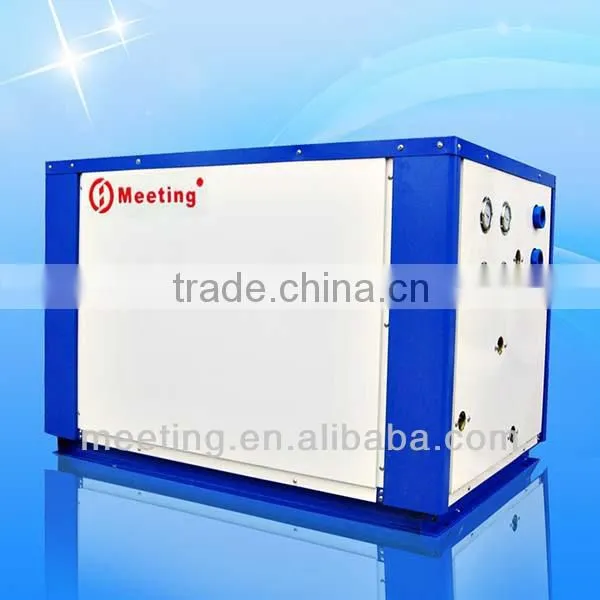

MEETING heat pump for heating & hot water 36 to 84kw geothermal heat pump
Meeting geothermal source heat pump: Groundwater and soil temperature is relatively stable, water source heat pump running more stable and durable, can be used for winter heating and domestic hot water.
Meeting heat pump MDS100D, MDS200D parameters
| MODEL | Unit | MDS100D | MDS200D | |||
| Rated heating capacity | KW | 38 | 76 | |||
| Hot water supply | L/h | 850 | 1700 | |||
| Average heating input power | KW | 8.8 | 17.6 | |||
| Rated heating input current | A | 18 | 35 | |||
| Max outlet water temp | °C | 60 | 60 | |||
| Cooling capacity | KW | 28 | 56 | |||
| Power | V/Hz | 380V/50 | 380V/50 | |||
| Noise | Db(a) | 55 | 58 | |||
| Dimension | W*D*H | mm | 1030*685*720 | 1260*850*860 | ||
| Packing size | W*D*H | mm | 1100*755*865 | 1350*910*1020 | ||
| Unit weight | KG | 360 | 620 | |||
| Refrigerant | R417A/R407C | R417A/R407C | ||||
| Working air temp range | °C | (-40°C)—45°C | (-40°C)—45°C | |||
| compressor | Type | Copeland | Copeland | |||
| water source heat exchanger | Type | Plate heat exchange | Plate heat exchange | |||
| Pipe size | DN | 32 | 63 | |||
| Hot water side heat exchange | Type | Coil heat exchanger | Coil heat exchanger | |||
| Water flow | L/H | 10000L/h | 22000L/h | |||
| Water pressure down | Kpa | 50 | 55 | |||
| Pipe size | DN | 32 | 50 | |||

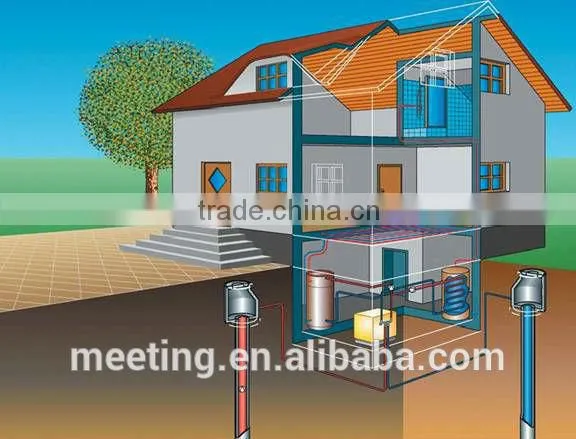

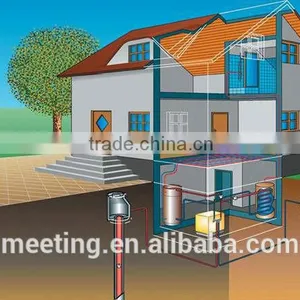

Simple installation of Meeting heat pumps
Heat pump product features
- European square integral design, the appearance is more beautiful and atmosphere.
- Heating source is available from groundwater, waste heat and water of chilled water tower.
- It is the EU most commonly used heating machine.
- Water source heat pump is widely used in villa, hotel, hospital, school, sauna center, beauty salon, greenhouse, plant food, laundry, factory, school etc.
Specifications of Meeting geothermal heat pump components

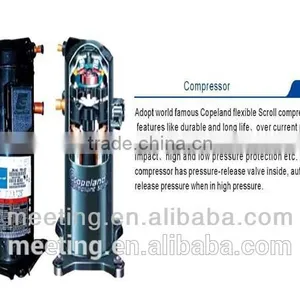

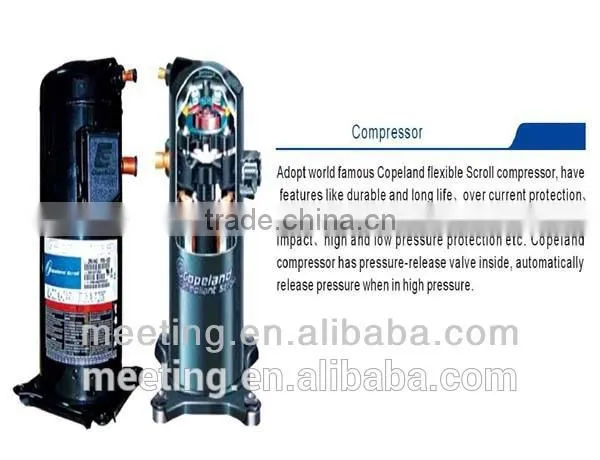

- Copeland scroll compressor, the best and most stable compressor in the world, over current protection, high/ low pressure protection, etc.
- Plate exchanger used in ground source/ geothermal heat pump; shell tube exchanger in water source heat pump, suitable choice to meet different requirements
- Coil exchanger is adopted in hot water side, American internal and external thread pipe technology with high heat exchanging capacity and long working life features
- Intelligent control system has on/off time clock, different hot water supplying setting, etc features – easily to operate and save your time. With automatic defrosting function, could still work in low temperature weather
- R410a, R407c, the most used and environmental friendly refrigerant
Optional:
- R407c, R417a refrigerant is available according to customers’ requirements.
- Stainless steel cabinet is available
----------------------------------------------------------------------------------------------------------------------------------------------------
Components of heat pump
Commercial terms
1> Packing: Standard Export Packing (Ply wooden case)
2> Payment term: 30% T/T Of Total value as deposit to start the produce, And 70% the balance before shipping
3> Delivery time: within 15 to 20 days after receive the deposit
4> MOQ=5pcs.

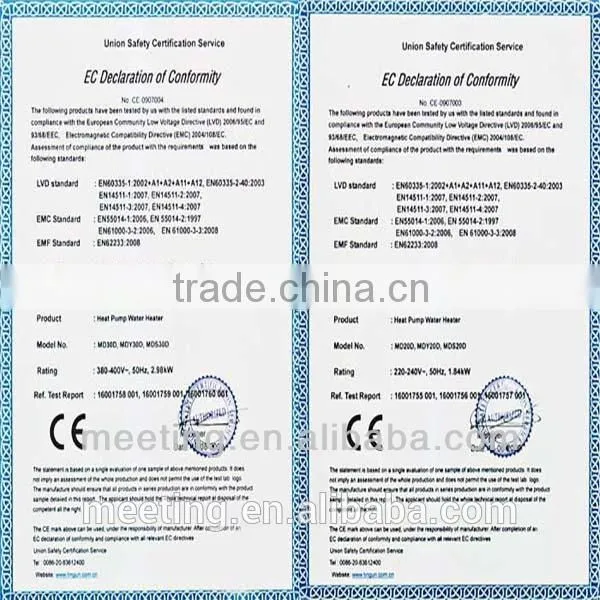

Certificates for Meeting heat pumps
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
