mini ice maker,White, transparent or colored Block Ice Machine
- 5 Set / Sets per Month
- Guangzhou Shenzhen etc
- T/T
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 5ton/day | Place of Origin: | Guangdong, China |
Brand Name: | Meeting | Model Number: | MD30D | Ice Shape: | Ice Block |
Voltage: | 220V/380V | Power(W): | 10kw | Dimension(L*W*H): | 5.0*2.3*1.3 |
Weight: | 1500kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Meeting Ice Maker Machine technical specifications:
1. Block ice machine, daily output from 1ton to 100tons.(1t=1000kg)
2. Block ice temperature: -10°C
3. Block ice sizes can be customized.
Meeting block ice machine MD series is new type mahine with high efficientcy units, which mainly aiming at Africa, Middle East and Oceania. This machinery unit adopts the integrated design, easy to install, users only need to connect the power. and ice tank adopt Polyurethane foam technology, it promises a good heat insulation and prevent defects of foam uneven.Moreover, it is designed according to the theoretic fluid to make the flow stable.
Model | Whole input power | Water cooled condensor power | Compressor | Block ice weight | Ice supply quantity | Daily output | Evaporating temp | Condensation temp | Whole unit dimension | Block ice dimension |
NO | KW | KW | Brand | KG | (Piece/Time) | (T/D) | ℃ | ℃ | L*W*H(M) | L*W*H(M) |
MD5D | 10 | 0.22 | Copeland | 100 or Customized | 50 | 5 | -10℃ | +40℃ | 5.0*2.3*1.3*1/Set | 1*0.22*0.5 |
MD10D | 20 | 0.44 | Copeland | 100 or Customized | 100 | 10 | -10℃ | +40℃ | 5.0*2.3*1.3*2/Set | 1*0.22*0.5 |
MD20D | 40 | 0.88 | Copeland | 100 or Customized | 200 | 20 | -10℃ | +40℃ | 5.0*2.3*1.3*4/Set | 1*0.22*0.5 |
MD30D | 60 | 1.32 | Copeland | 100 or Customized | 300 | 30 | -10℃ | +40℃ | 5.0*2.3*1.3*6/Set | 1*0.22*0.5 |
MD50D | 100 | 2.2 | Copeland | 100 or Customized | 500 | 50 | -10℃ | +40℃ | 5.0*2.3*1.3*10/Set | 1*0.22*0.5 |
MD100D | 200 | 4.4 | Copeland | 100 or Customized | 1000 | 100 | -10℃ | +40℃ | 5.0*2.3*1.3*20/Set | 1*0.22*0.5 |
Machine running condition:
Water temperature: 21Centi degree;
Evaporate temperature: -10Centi degree;
Condensing temperature: +40Centi degree;
Ambient temperature: +25Centi degree;
There will be in a small range of production due to the difference of water temperature and ambient temperature.
Project Display:

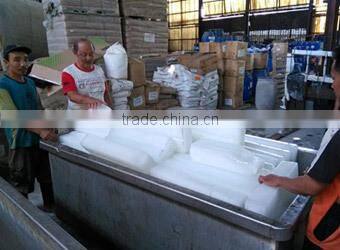

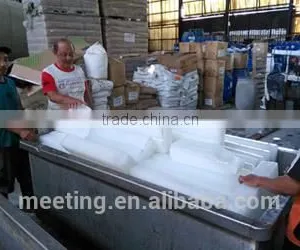

5 Ton Ice Block Machine in Indonesia

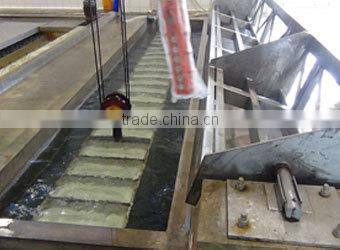

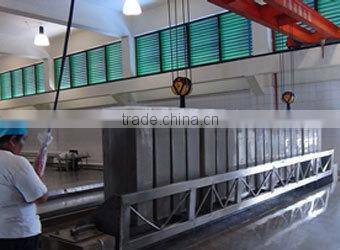

Malaysia-100tons-ice-block-machine project
Product Quality:
1.Stainless steel ice module shell is beautiful, anti-corrosive, easy washable, with durability craftwork and efficient insulation properties.
2.Spray ice mold ice making, now is the world's more advanced ice making method .The ice is crystal with fine texture and long-lasting cooling effect.
3.Adjustable ice block : Adjust ice block thickness to adapt to ice usage of different occasions .
4.Fully automated control: Adopt advanced COMS integrated circuit .Water supply, ice making,ice take-off, erro protection etc are completed automatically .Usage is safe and convenient .
5.Energy-saving .Our equipment saves 33% more on power than similar products
6.Adopt EU most advanced ice making technology with reasonable design and outstanding performance
7.Main body and ice tank are module combined so that it is easy to transport and install and to save energy in winter when it is not the climax of ice using .
8. With long time performance check and adjustment before delivery ,we ensure the outstanding performance of equipment.
Product Advantages:
1.Electronic control system adopts brand new energy-saving technology .Water supply, drainage,ice making are all fully automated. No need of special person operation .Secured use .
2.Condensing system and condensing sensor are scientifically combined ,as a result that it can adapt to different ambient temperature and make ice faster .
3.Zero fluorin polyurethane foaming to make the cooling effect better .
4.According to customer’s environment and condition of use ,we design the equipment .It would meet the ice making need and at the same time ,it saves customers’ cost and save on power bills .Offer the best ice making solution .
5.Adopt PLC program control. Erro alarm data would appear on the control screen directly .When the ice maker has problems and make alarms, customers can obtain error cause and solution directly so that they can solve the problem timely .
6.Remote control system use internet and wireless communication technology to monitor the ice maker working status. Achieve remote erro diagnose and data collection . Know the working state of ice maker and related historical data any time .
7.With long time performance check and adjustment before delivery ,we ensure the outstanding performance of equipment.
Service Advantages:
a.Professional technical service staff ,fast service respond .
b.Offer free easy broken parts for spare use
c.Through years work, we have perfect after-sales service team to offer customers convenient service
d.Auto erro diagnose system .The first time the problem occur,we can find out the problems and offer solutions .7*24h after-sale service call to off you technical consult and service any time .
e.Professional on site training service .When our technicians install the equipment on site , we would carefully and patiently explain to customers ice maker daily attentions and issues, as well as solutions to common problems of maintenance. Thus customers could fully master the use of our equipment.
f.According to customer’s need, we could offer special technical training service.
