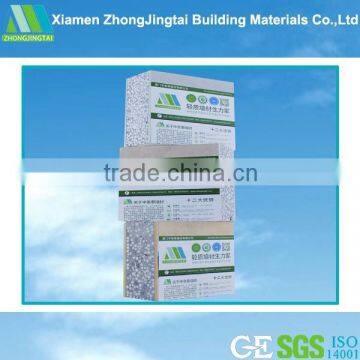

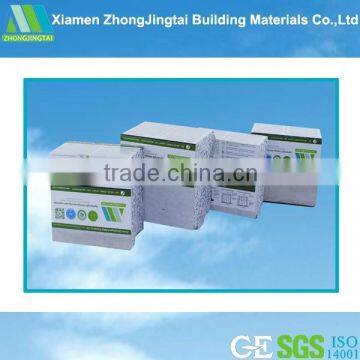

Small prefab houses Light weight compound fireproof thermal insulation foam
Specifications
| Items(mm) | single(Pc) | Load by 20'GP | ||||||
| m3 | Kg/pc | kg/2 | Qty(pc) | m2 | Tons | |||
| 2270*610*75 | 0.10 | 65 | 52 | 252 | 349 | 17 | ||
| 2270*610*90 | 0.12 | 73 | 60 | 216 | 299 | 17 | ||
| 2270*610*100 | 0.14 | 79 | 65 | 198 | 274 | 17 | ||
| 2270*610*120 | 0.17 | 90 | 74 | 162 | 224 | 16 | ||
| 2270*610*150 | 0.21 | 106 | 88 | 126 | 174 | 15 | ||
| 2270*610*180 | 0.25 | 123 | 102 | 108 | 150 | 14 | ||
| 2440*610*120 | 0.18 | 95 | 69 | 132 | 196 | 14 | ||
| 2440*610*150 | 0.22 | 112 | 76 | 102 | 152 | 12 | ||
| 2440*610*180 | 0.27 | 130 | 88 | 90 | 134 | 13 | ||
Product Description
1. Specification
Name |
Specification (mm) |
Weight (kg/m2) |
Allowed Tolerance (mm) |
Packing (pcs and m2 per 20' FCL) |
Light Weight Compound Sandwich Panel |
2270x610x60 |
45~48 |
Length ± 5 |
315pcs, 436m2 |
2270x610x75 |
50~53 |
252pcs, 349m2 |
||
2270x610x90 |
55~58 |
207pcs, 287m2 |
||
2270x610x100 |
60~65 |
189pcs, 262m2 |
||
2270x610x120 |
65~75 |
153pcs, 212m2 |
||
2270x610x150 |
80~90 |
126pcs, 175m2 |
2. Advantages
| features | more detail | ||||||||||||
| 1 | green | 100% free of harmful substances and are of A non-radioactive products, standard GB6566-2001. | |||||||||||
| 2 | lightweight economic | The volume-weight only 750-800kg/m3 , the weight of 75mm thickness ZJT board is 60kg/m2, equal to 1/6 of brick weight, 1/7 of 120mm thickness masonry. | |||||||||||
| 3 | increase valid space | the thickness of ZJT wall decreases 85mm by using 75mm thickness ZJT boards. Thus, valid space increases 1/m2 per 11.8mm. in other words, it can increase 6/m2 per 100/m2 . |
|||||||||||
| 4 | moistureproof waterproof | will keep dry and leave no stains. During humid days, the boards will not condense water either. suitable to be installed in such wet areas as kitchens, bath rooms, basements because of its moistureproof and waterproof. | |||||||||||
| 5 | fireproof | Fireproof limit of ZJT boards is more than 4 hours and does not emit toxic gases under 1000 degree. The nonflammable performance reaches national A-class standard. | |||||||||||
| 6 | heat insulation | ZJT board is composed of special material to keep heat and thermal within a favorable condition. At same time, the ZJT boards are able to adjust moisture automatically and keep moisture at a balance level. | |||||||||||
| 7 | sound insulation | The raw materials of ZJT boards have good performance in sound insulation. ZJT board with 90mm thickness gains sound insulation of 42dB. | |||||||||||
| 8 | walls can be nailed and grooved | ZJT board can be grooved to have conductor arrangement or nailed to hang heavy object. The surface of ZJT board is smooth enough to make finisher processing directly with tile, wall trim and so on. | |||||||||||
| 9 | good integration | By using steels at the joints, the strength of walls is high enough to do partition in large story height and long span structures and it anti-seismic performance is several times higher than masonry. | |||||||||||
| 10 | easy and fast construction | It can be cut to adjust length and width at will. The process of installation is easy and fast, without the need of plastering. | |||||||||||
Remark: All kinds of panels can be customized by customers' specific requirements,such as density and length of panel.
3. Composition

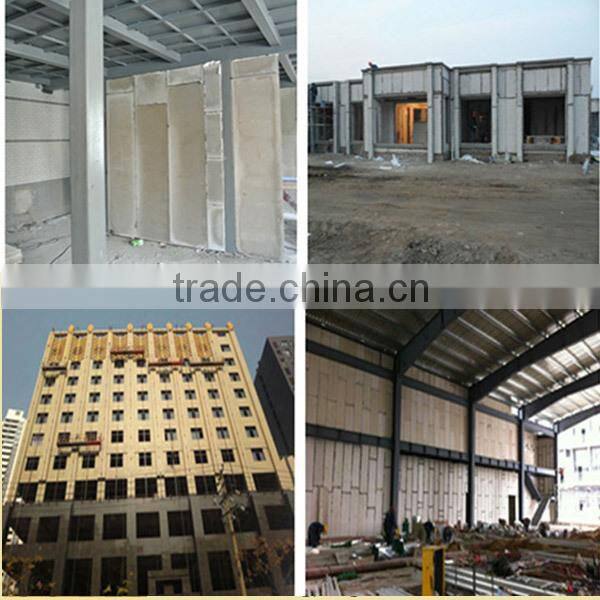

4. Usage of the panel

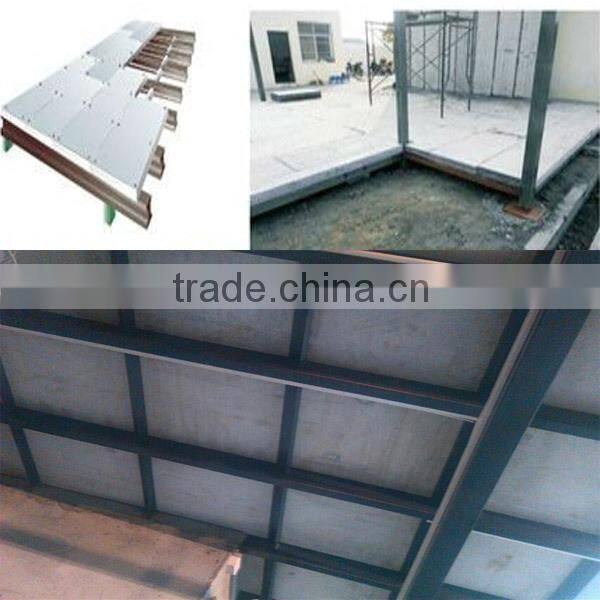

- Floor System
- light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.

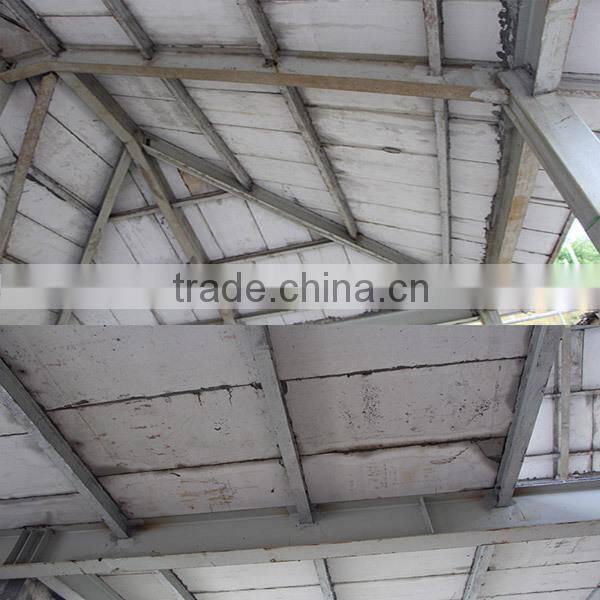

- Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.

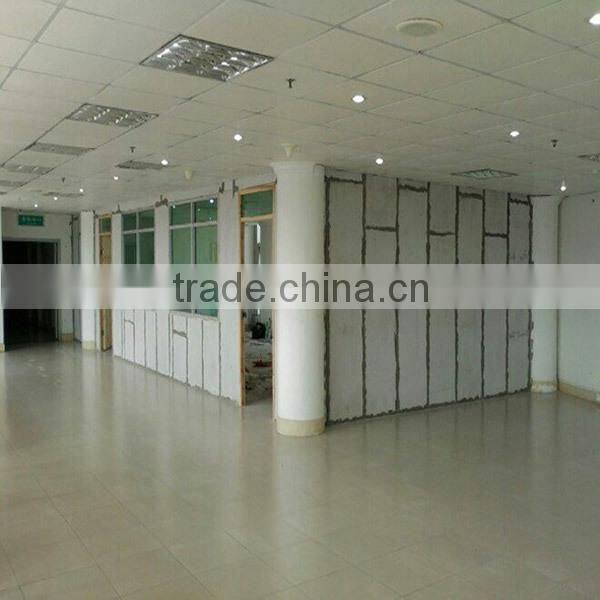

- Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.

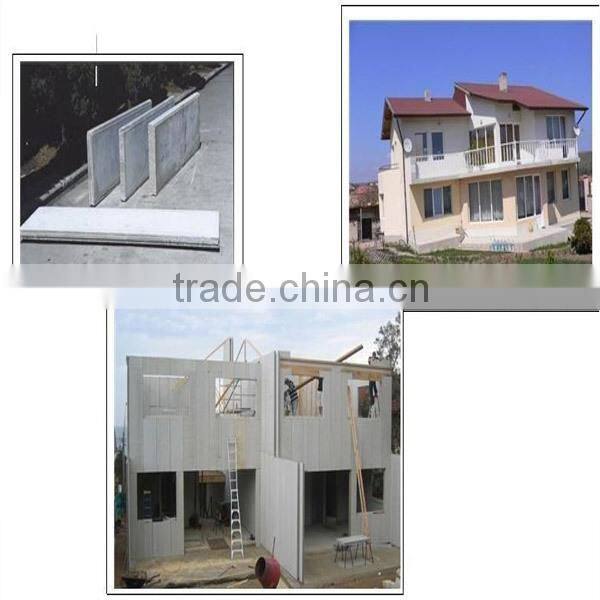

- Exterior Wall System
- Villa
light weight compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.

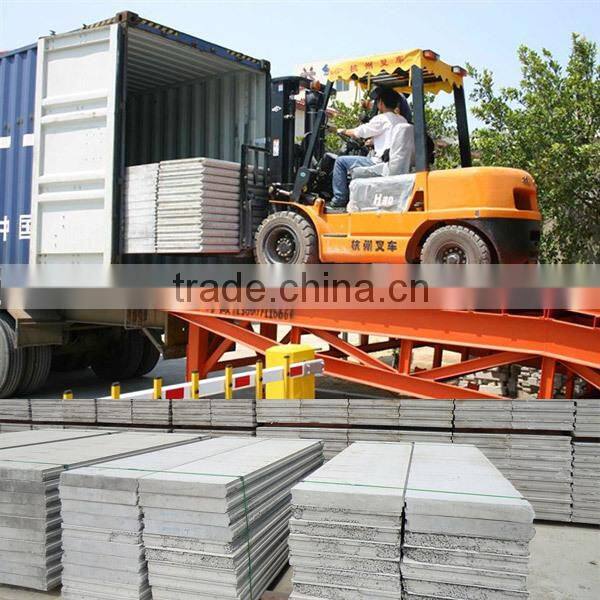

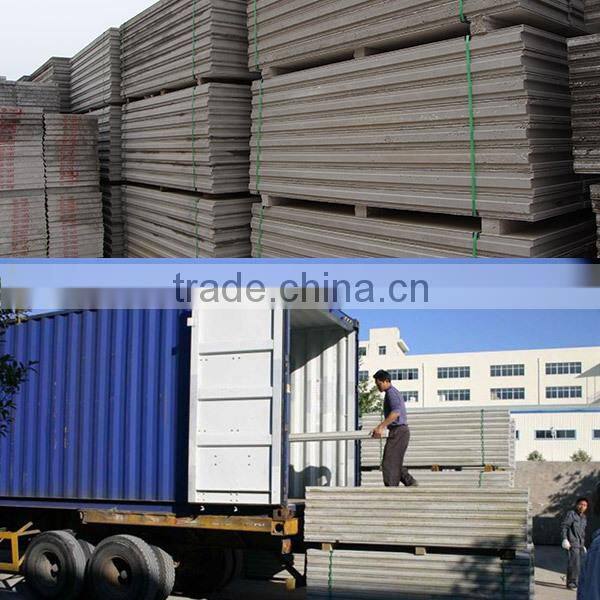

Packaging & Shipping

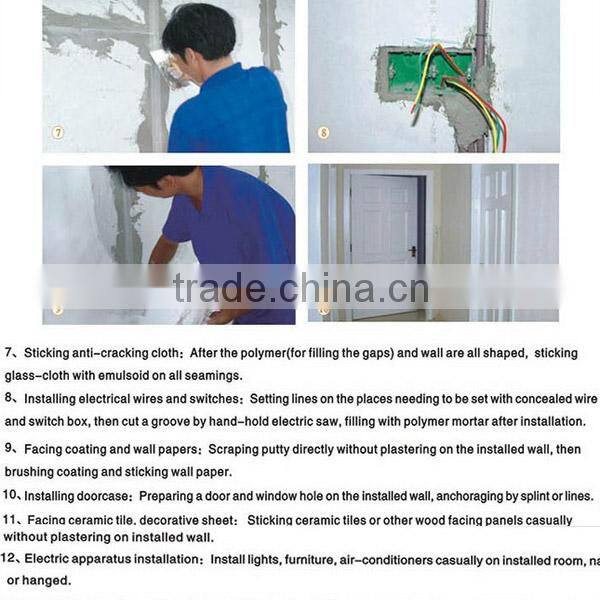

Installation process
Our Services
Xiamen ZhongJingtai building materials Co., Ltd, a comprehensive enterprise, specializes in developing and producing the new energy-saving wall materials. Located in the beautiful city, Xiamen, ZJT has modern working environment and production base. The factory is located in Quanzhou and its annual production capacity is more than two hundred million square meters.

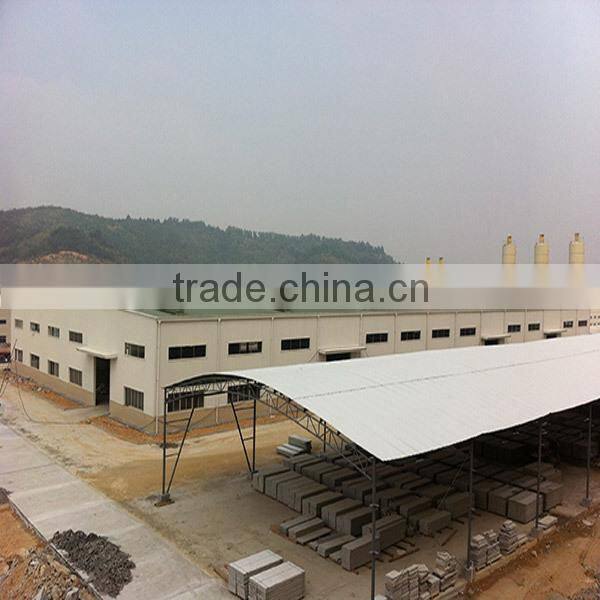

1. Office and Factory

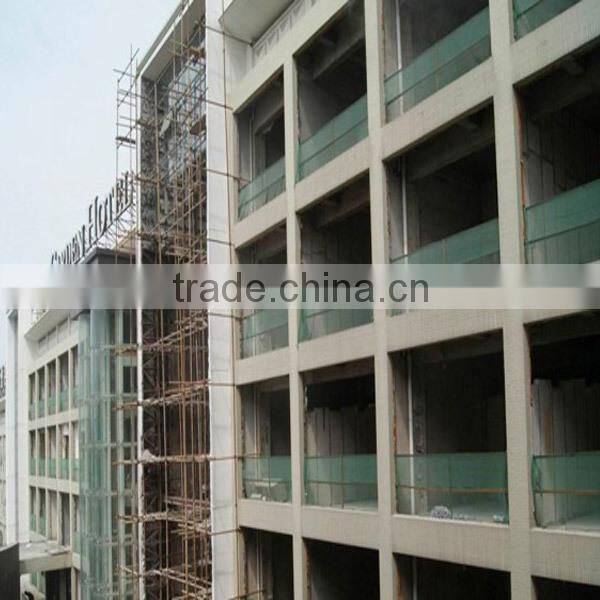

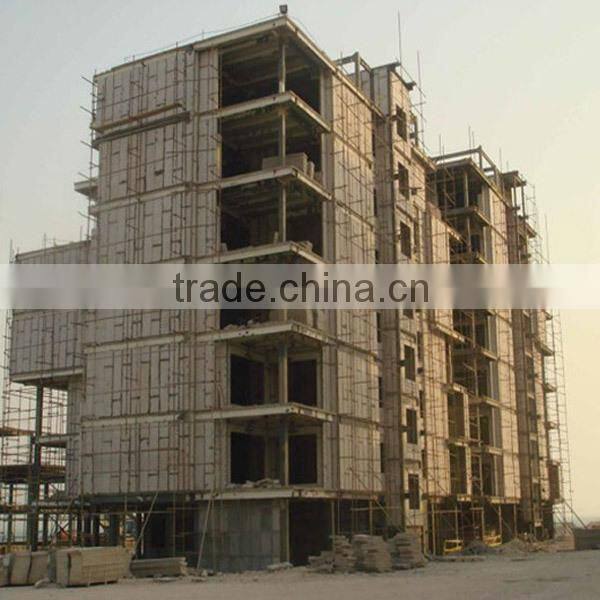

3. Project cases
4. FAQ
Q1. What kind of materials with your products?
A: EPS, cement, sand, addtivity material, calcium silicate board for
surface.
Q2.Trade Informations
FOB, CIF, EXW etc.
5. Contact information
Xiamen ZhongJingtai Building Materials Co.,Ltd
Address:Unit 2A, Lianchang Building, No.6-8 Huli Avenue, Huli District, Xiamen, China
Web: /
Skype: rose47991
Tel: 86-592- 5216902
Fax: 86-592-5216319
