2270mm length light weight prefabricated steel fence

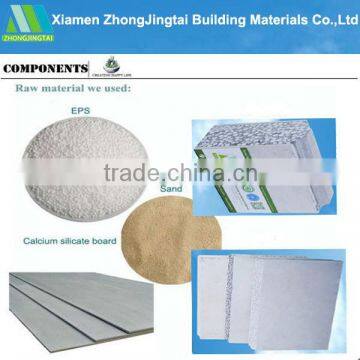

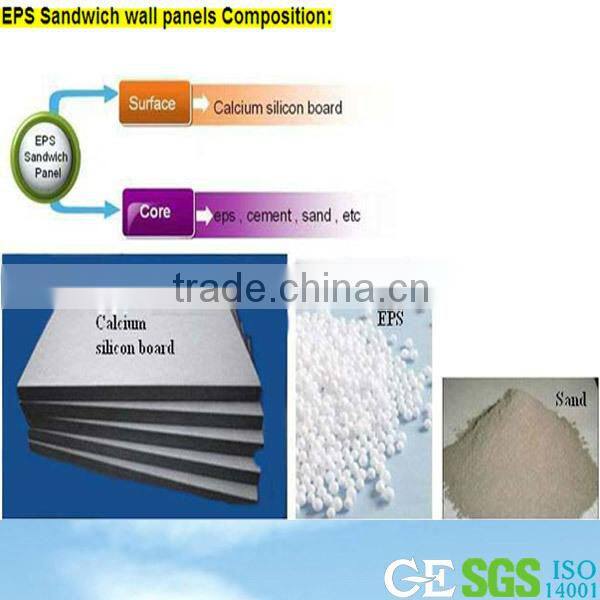

1. Panel Composition:
Surface: Fibre reinforced calcium silicon board or cement calcium board
Core: cement, EPS, sand and fly ash.
2. Panel Specifications (L*W*T):
2440/2270mm*610mm*(60,75,90,100,120,150,180 mm)
Standard Specification |
(Pcs/M2 )/20GP |
2270mmx610mmx60mm |
306pcs/ 424 m2 |
2270mmx610mmx75mm |
252pcs/ 349 m2 |
2270mmx610mmx90mm |
216pcs/ 299 m2 |
2270mmx610mmx100mm |
198pcs/ 274 m2 |
2270mmx610mmx120mm |
162pcs/ 224 m2 |
2270mmx610mmx150mm |
126pcs/ 174m2 |
3. Panel Applications:

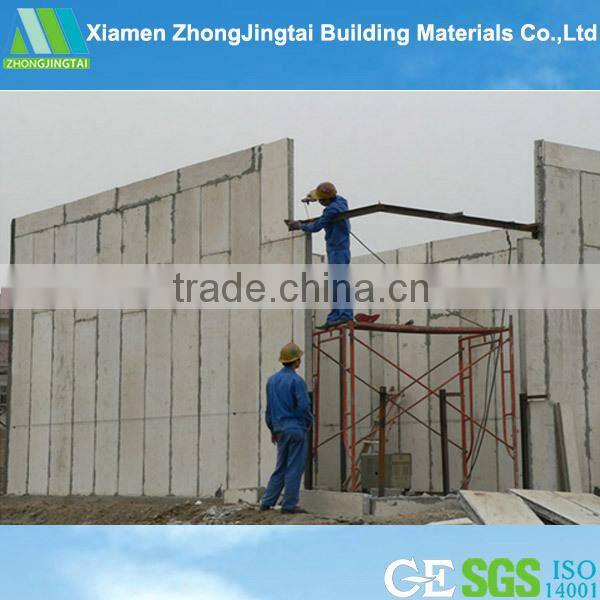

1) • Interior wall, Partition wall & exterior wall:
It has been widely applied to interior partition of high-rise buildings, with the advantages of excellent fire-proof, best hanging force and easy installation.

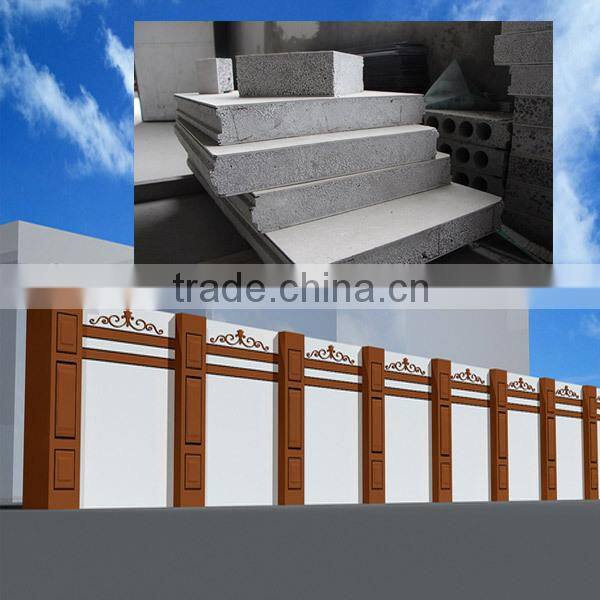

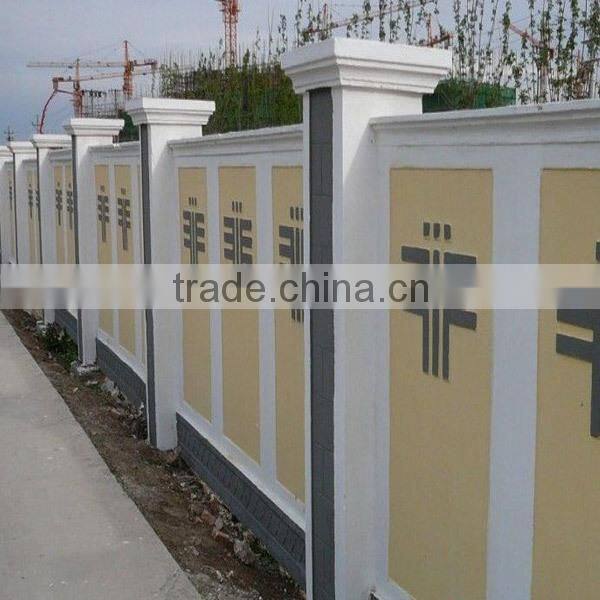

Fence
2) Floor System:
It's much suitable for the floor plate of factory, workshop, warehouse, etc.

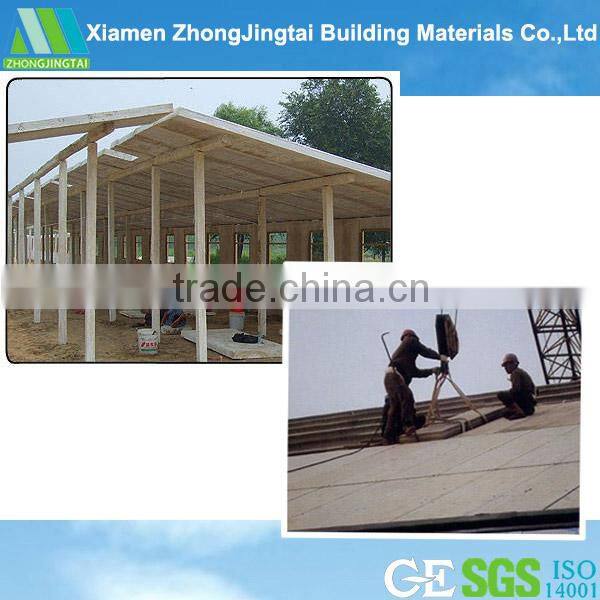

3) Roof System:
Solving the problem of roof leakage, reducing the use of roof beam-column and improving security.
4. Characteristics and Advantages of the panel:
| features | more detail | ||||||||||||
| 1 | green | 100% free of harmful substances and are of A non-radioactive products, standard GB6566-2001. | |||||||||||
| 2 | lightweight economic | The volume-weight only 750-800kg/m3 , the weight of 75mm thickness ZJT board is 60kg/m2, equal to 1/6 of brick weight, 1/7 of 120mm thickness masonry. | |||||||||||
| 3 | increase valid space | the thickness of ZJT wall decreases 85mm by using 75mm thickness ZJT boards. Thus, valid space increases 1/m2 per 11.8mm. in other words, it can increase 6/m2 per 100/m2 . |
|||||||||||
| 4 | moistureproof waterproof | will keep dry and leave no stains. During humid days, the boards will not condense water either. suitable to be installed in such wet areas as kitchens, bath rooms, basements because of its moistureproof and waterproof. | |||||||||||
| 5 | fireproof | Fireproof limit of ZJT boards is more than 4 hours and does not emit toxic gases under 1000 degree. The nonflammable performance reaches national A-class standard. | |||||||||||
| 6 | heat insulation | ZJT board is composed of special material to keep heat and thermal within a favorable condition. At same time, the ZJT boards are able to adjust moisture automatically and keep moisture at a balance level. | |||||||||||
| 7 | sound insulation | The raw materials of ZJT boards have good performance in sound insulation. ZJT board with 90mm thickness gains sound insulation of 42dB. | |||||||||||
| 8 | walls can be nailed and grooved | ZJT board can be grooved to have conductor arrangement or nailed to hang heavy object. The surface of ZJT board is smooth enough to make finisher processing directly with tile, wall trim and so on. | |||||||||||
| 9 | good integration | By using steels at the joints, the strength of walls is high enough to do partition in large story height and long span structures and it anti-seismic performance is several times higher than masonry. | |||||||||||
| 10 | easy and fast construction | It can be cut to adjust length and width at will. The process of installation is easy and fast, without the need of plastering. | |||||||||||

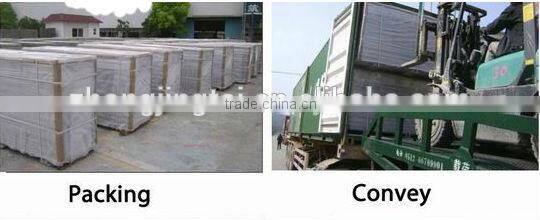

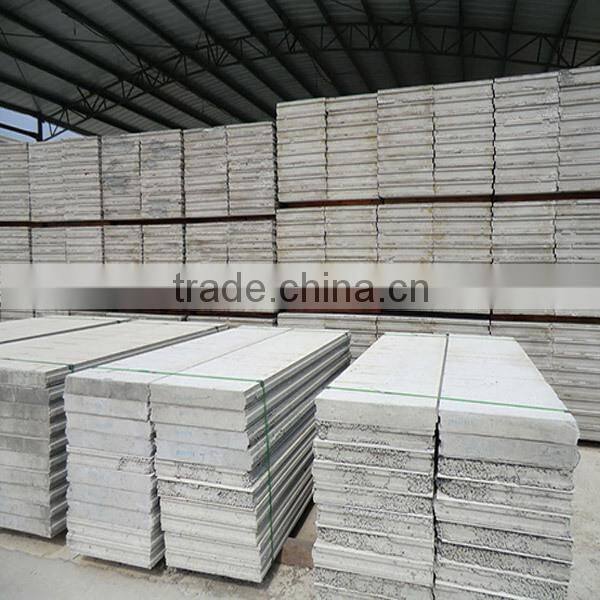

5. Packing and loading:
6. About ZJT
Professional manufacturer of sandwich panels (with patent), prefab house/villa.

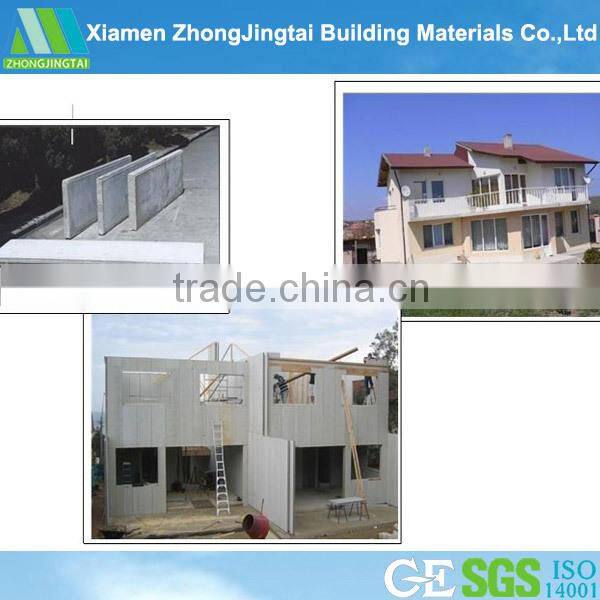

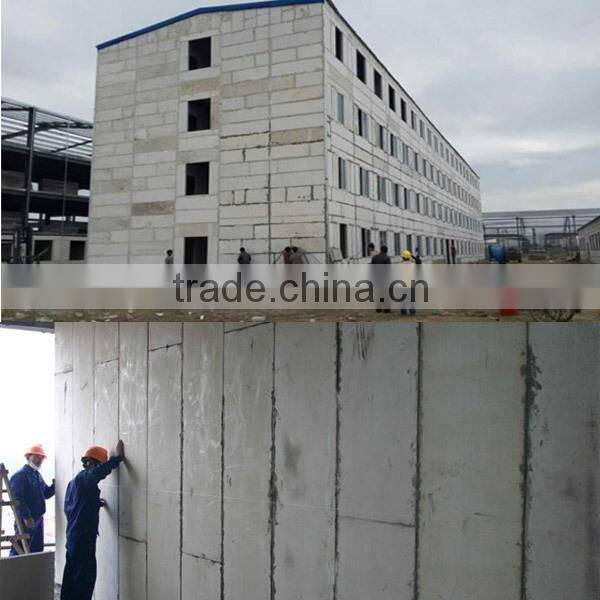

ZJT Projects:
School Project:
Hotel Project:

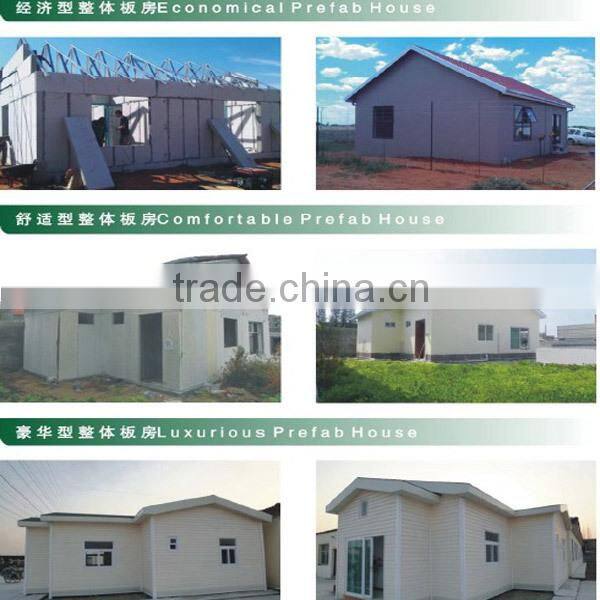

Pre-fab House Project:
Remarks: Panel Production Line and Integrated Housing System are also available.
Any question or further information, just feel free to contact with us. We will come back with satisfactory service!
Contact Person: Alice Skype: rose47991 Mobile: 86-592-5216902
Web.:

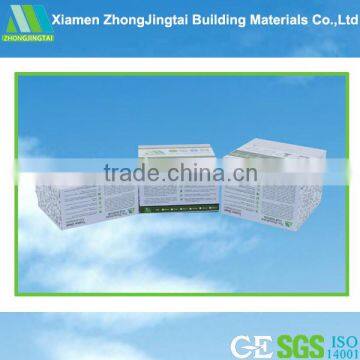

Free panel sample & installation video can be sent for your further study!
