Specifications
Light weight
Fast installation
Safe,solid,green
Energy&area saving, water&fire proof
Heat Insulation,anti-earthquake
Product Description

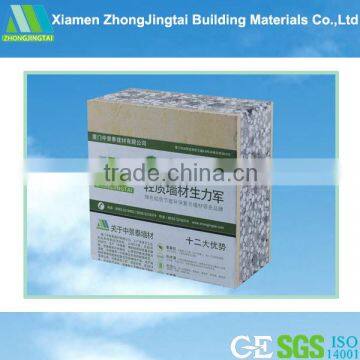

1.Product name : simple steel structure villa house plans light steel structure villa steel structure villa

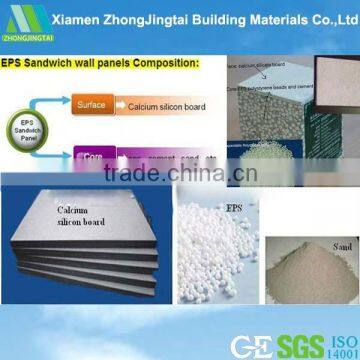

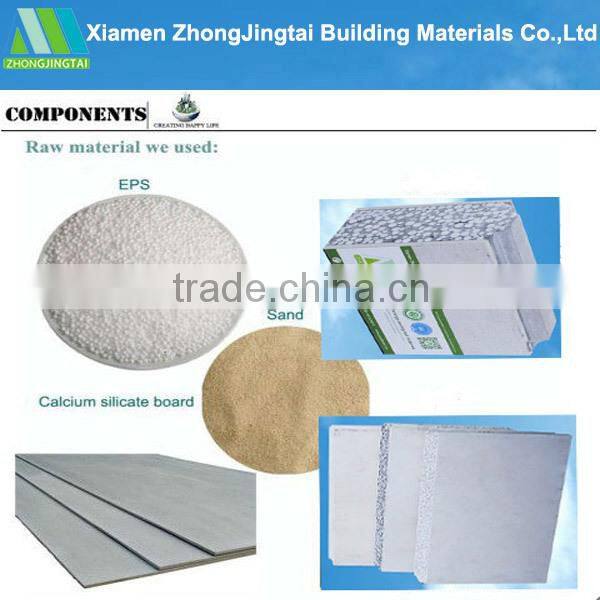

2.Composition: Fibre reinforced calcium silicon board or fiber cement board as panel, with cement, EPS, Fly ash as fillers and forming by one time compound.
3.Dimension(L*W*T): 1500-3000x610x60,75,90,100,120,150,180mm,general length:2270mmm,Max length : 3000mm
4. Technology Index:
|
Item |
National Standards |
Testing Indexes |
||||
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
||
1 |
Anti-impact Capacity/times |
≥5 |
≥5 |
≥5 |
≥8 |
≥10 |
≥15 |
2 |
Anti-bending damage load/times over deadweight |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥4 |
≥5 |
3 |
Compressive strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥5 |
≥5 |
≥5 |
4 |
Softening coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
5 |
Surface density g/m2 |
≤70 |
≤90 |
≤110 |
≤55 |
≤70 |
≤85 |
6 |
Moisture rate a/% |
≤12/10/8 |
≤10/9/7 |
||||
7 |
Drying shrinkage value /mm/m |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.45 |
≤.0.5 |
≤0.5 |
8 |
Hanging Force/N |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
≥1500 |
9 |
Sound insulation capacity in the air /Db |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
10 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥2.5 |
≥3 |
≥4 |
11 |
Heat transfer coefficient w/m2.k |
|
|
≤1.0 |
|
|
≤1.0 |
12 |
Radioactivity Limit |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
13 |
IRa (Inner radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
14 |
Ir (Outer radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |

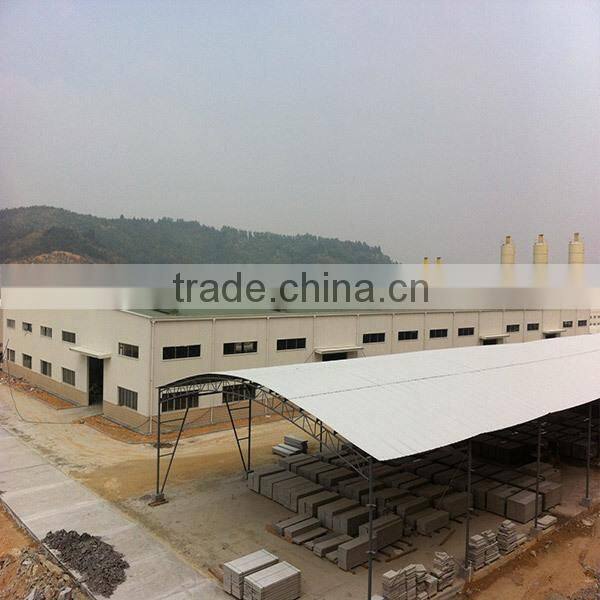

5. Factory ( Professional Manufacturer)

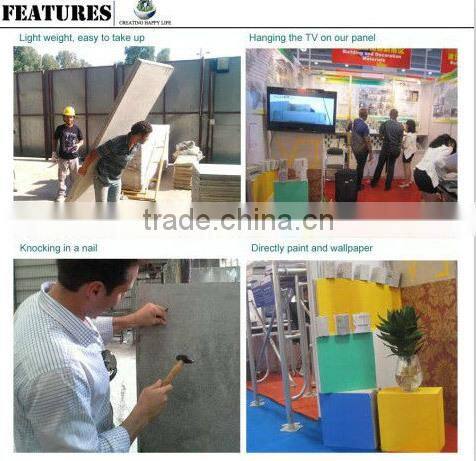

6. Features of Sandwich Panels
Heat insulation and preservation :The feature of energy saving of boards is mainly reflected in it’s heat preservation and insulation ,the major material is polystyrene grains and other anit-freezing and heat preserving environmental protection materials.
Water-proof& fire-proof: the face panel of energy-saving boards on both side are 4.5mm calcium silicate fire proof boards and the main material is a mixture of cement ,sand ,fly ash and so on.tests have shown that energy saving boards have a fire proof limit of 4 hours against a high temperature of 1000°C and the incombustibility has reached National A level,besides ,these materials doesn’t give out toxic gas and perfectly meet the international environmental standard ,the tests also prove the water containers can be made by this panel with no need for plastering and the containers have no leakage at all .
Sound insulation and absorption: the inside constructional material ( EPS polystyrene grain ) function well in sound insulation and sound-absorbing .
Easy construction and time saving: For the same construction work that takes 12 people and 60 minutes to complete with traditional blocks ,only 3 people and 60 minutes will do Jinyi boards ,thus can save a lot of labor and time cost the construction part .
High Intensity and quake proof: The energy saving boards are all with high intensity and the earthquake resistance can reach 8.5 magnitudes ,the shock resistance index is several times higher than other wall material , the boards can be nailed directly and with expansion bolt to lift and hang heavy things ,the also can be covered by ceramic tile ,wall paper and wood panel ,coating.
Space and cost saving: The thickness of energy boards are between 60mm to 180mm ,compared with traditional blocks ,the building area is largely increased ,in the mean time ,the weight of boards is only 1/12 that traditional wall body ,which saves the cost on construction structure a lot .
Packaging & Shipping

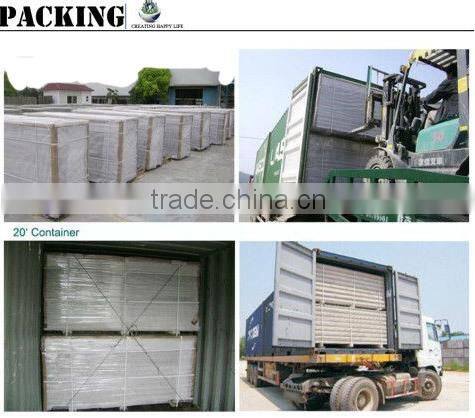

1. Packing of Sandwich Panels

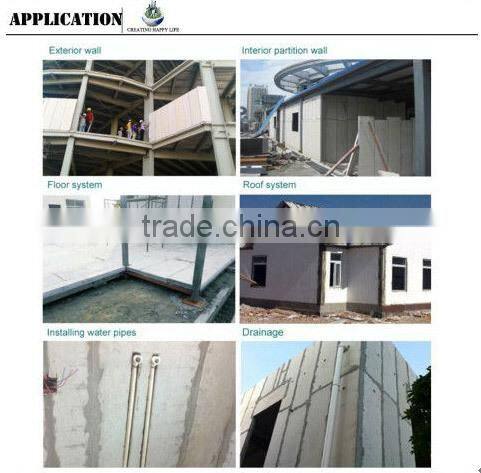

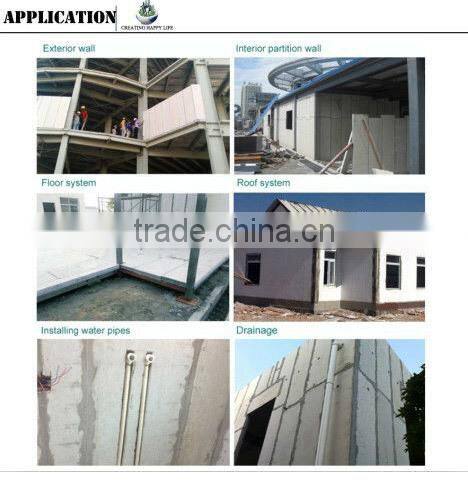

2. Application of Sandwich Panels

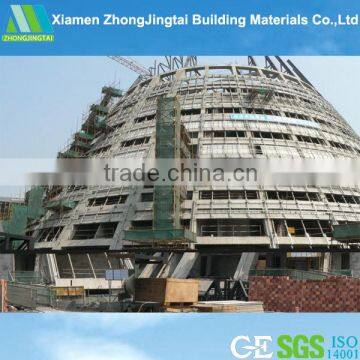

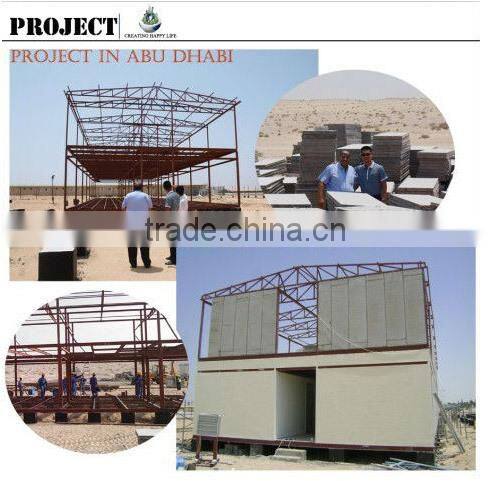

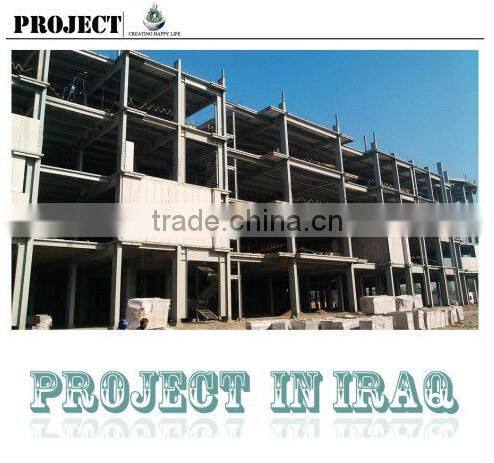

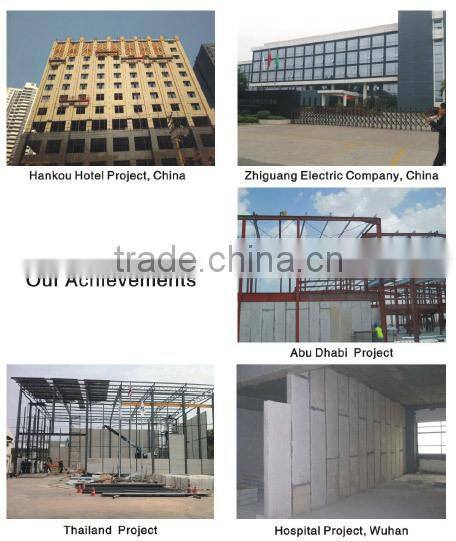

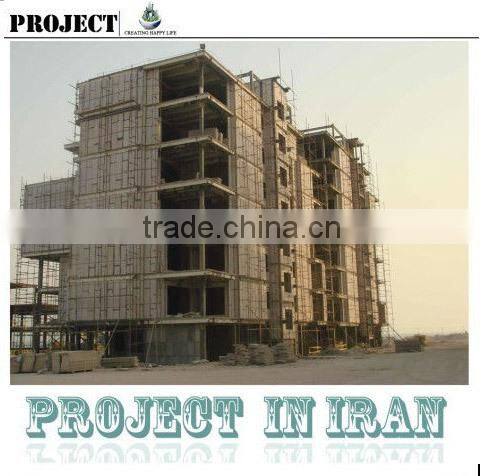

3. Projects of Sandwich Panels
Our Services
We are also the professional supplier of EPS sandwich panel
We Zhongjingtai will provide the turn key service to you --- our valuable customers !
If you are interested in us ,please don't hesitate to contact us !
Xiamen ZhongJingtai Building Materials Co.,Ltd
Contact Person : Ms.Alice
Contact number: +86 - 592 - 5216902
Skype : rose47991
