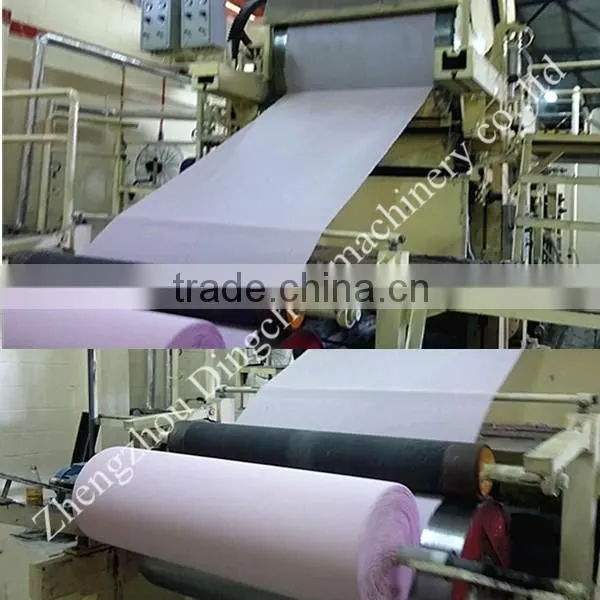

recycle paper scrap toilet tissue paper making machine
Technical parameter:
Output paper: toilet paper, tissue paper, napkin paper
Paper grams: 18--30g/m2
Net paper width: 1092mm
Cylinder mould width: 1450mm
Working capacity: 1.8--2 T/D
The gauge: 1800mm
Pressure style: mechanical pressure
Driving style: AC frequency converter, sub-step driving
Machine shape: square box type
Pulp hanging style: down side hanging pulp
Main structure:
1. The cylinder wire section:φ1000mm×1450mm cylinder mould one set, φ350mm×1500mm couch roller one set, the Rubber hardness is Shore 380±2. Equipped with net-cage one set.
2. The dryer part: φ1500mm×1450mm dryer one set, φ350mm×1500mm touch roller one set, the Rubber hardness is Shore 950±2. mechanical pressure.
3. The reeling section:φ500mm×1450mm paper reeling roller one set, equipped with roll stand, roll bar two sets each.
All the configuration:

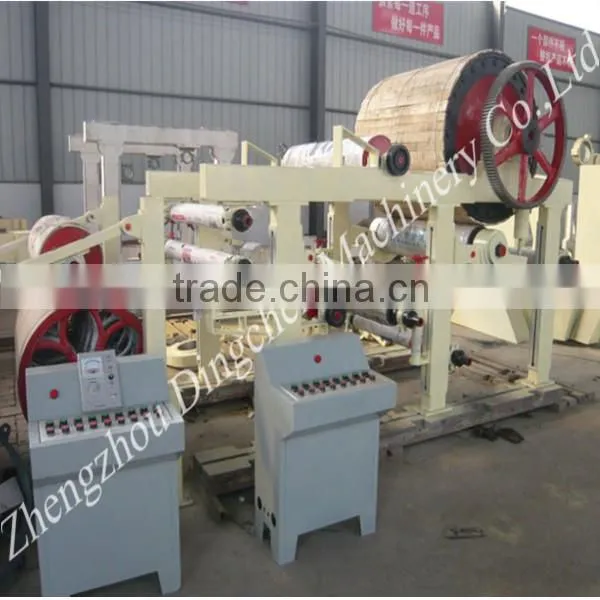

| The 1092mm toilet paper machine | one set |
| Dryer gas hood | one set |
| Exhaust fan | one set |
| 13 type vacuum pump | one set |
| Suction box | two sets |
| Net cage | one set |
| Frequency transducer | one set |
| All the working table, staircase, handrail | whole set |
| Grinder | one set |
| 8m conveyor | one set |

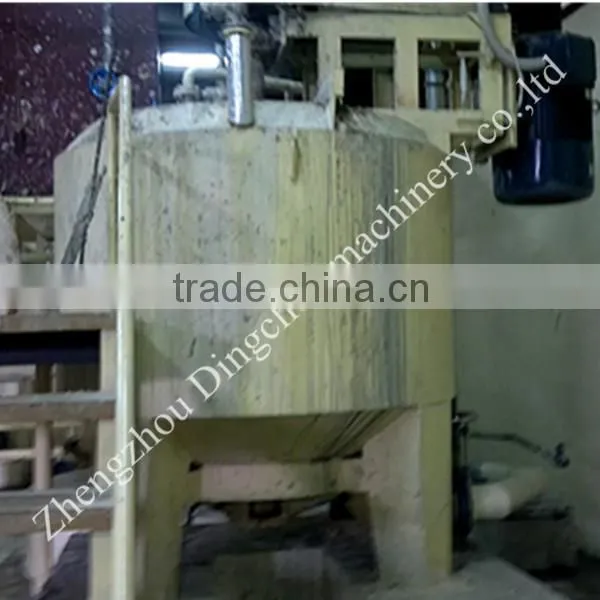

| High speed pulper | one set |
| 2m³ hydra-pulper | one set |
| 0.9m2 vibrating screen | one set |
| 50type pressure screen | one set |
| Double-entry pump-100 | one set |
606 sand remover 2 pieces |
one set |
| 350 fiberizer | one set |
| 35m³ potcher | one set |
| Φ700 propeller | three sets |
| Anti-corrosion pump | one set |
| 400type cutting machine | one set |
| Pulp-pump-100 | four sets |
| Pulp-pump-150 | three sets |
| Chemical box φ1500mm×1400mm | four sets |
| 1092mm rewinding machine | one set |
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers’ consistent affirmations.
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
