we are a professional paper machine manufacturer
here,you can get the whole production line
we promise you good quality machines cause we do only one thing---paper machine
so welcome to visit and negotiate

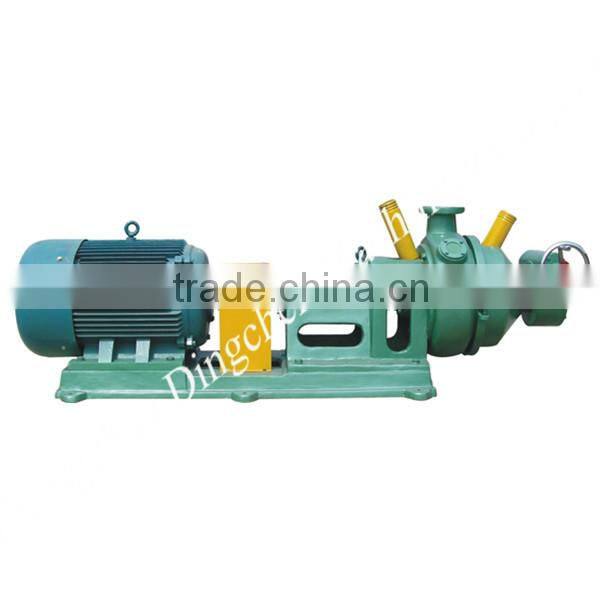

Double disk refiner
| Type | 380 | 450 | 550 | 600 |
| Diameter of disc(mm) | Φ380 | Φ450 | Φ550 | Φ600 |
| Capacity(t/d) | 6-20 | 8-40 | 25-80 | 40-120 |
| Pulping density(%) | 2-5 | 2-5 | 2-5 | 2-5 |
| Feeding pressure(Mpa) | 0.1-0.3 | model | 0.1-0.3 | 0.1-0.3 |
| Equipment power(KW) | 37 | 75-110 | 132-160 | 160-250 |

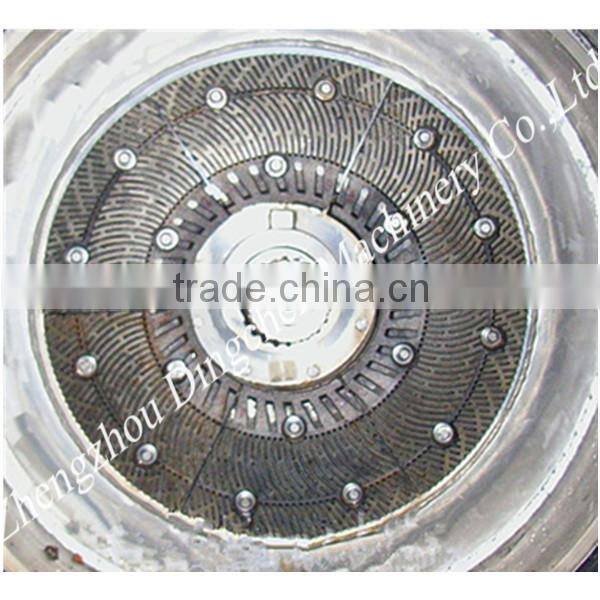

Double disc pulp refiner machie struction:double disc pulp refiner consists of the pulping room,a transmission struction,a base,motors and so on.pulping room is fixed on the casing and the movable seat on two fixed disk and mounted on a rotating disk of the two rotating disc,forming two pulping zone.Through replacing different tooth grinding,to meet the various requirements of striking pulp.
This double disc refiner is used for continus ous refining kinds of paper pulp,and straw ,wood , reed ,bamboo,rag and waste paper pulp.This machine is a pulping machine of coarse and correct gringding in papermaking and wastesd paper remaking thick liquid. It has the advantage of high poroduction efficency and low power consumption.
nical consultation
2.detailed design of factory or workshop
3.training engineers and workers
4.supplying spare part for long time
5.installing and testing the whole production line
6.good after-sale and in-sale servcie
