Disc Pulp Thickener Machine of Fluting and Kraft Paper Production Line

Disc Pulp Thickener Machine of Fluting and Kraft Paper Production Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Pulping Equipment
Computerized:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Pulping Equipment
Computerized No
Place of Origin China
Brand Name Dingchen
Model Number decker thickener
Voltage 220/380v/variable voltage
Power(W) 4kw
Dimension(L*W*H) 1500*3000MM
Certification ISO9001:2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Disc pulp thickener machine of fluting and kraft paper production line

 ZNP Series Disc type thickener for paper making from waste paper:



Used for washing and thickening the low consistency pulp in the paper pulp-making industry.



1.Disc thickener is mainly used to wash and thicken pulp in pulping and papermaking process.

2.Its working principle is to dewater by gravity through the level difference between pulp out

  of disc wire and white water in the disc.

3.The pulp at the consistency of 0.8~1.2% enters the vat and then is attached to disc sector.

4.The white water in the disc flows to the ends of hollow shaft through.guide slot and then

   discharge out.

5.Pulp attached on disc sector is knocked off by high pressure shower.



Main specification:

Type

ZNP

2508

ZNP

2510

ZNP

2512

ZNP

2514

ZNP

2516

ZNP

3510

ZNP

3514

ZNP

3512

ZNP

3516

Diameter of Filtering plate   (mm)Φ2500Φ3500
Amount of disc (n)81012141610121416
Nominal area (m2)6075901051201501801020
Concentration of Input Pulp(%)0.8-1.2
Concentration of Output Pulp(%) 3.5-4.5
Product capacity ONP(t/d)0.9-1.2t/(m2.d)
Product capacity Aocc(t/d)1.5-2.4t(m2.d)
Product capacity(Kw)111518.52230

 Disc pulp thickener machine of fluting and kraft paper production line

Disc pulp thickener machine of fluting and kraft paper production line

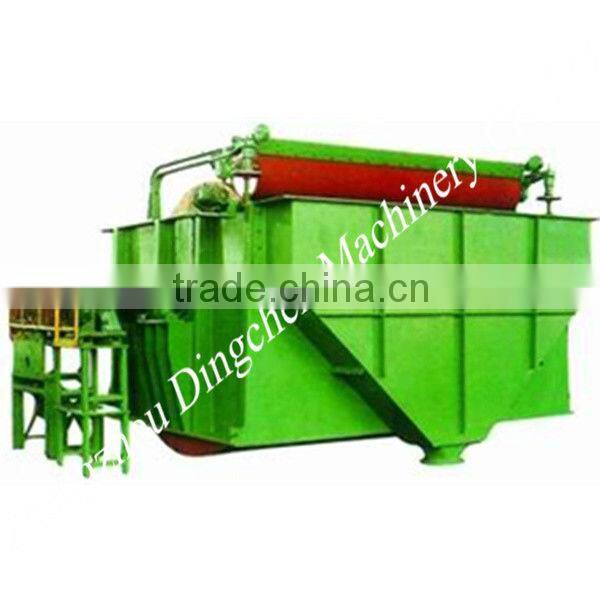

Disc pulp thickener machine of fluting and kraft paper production line

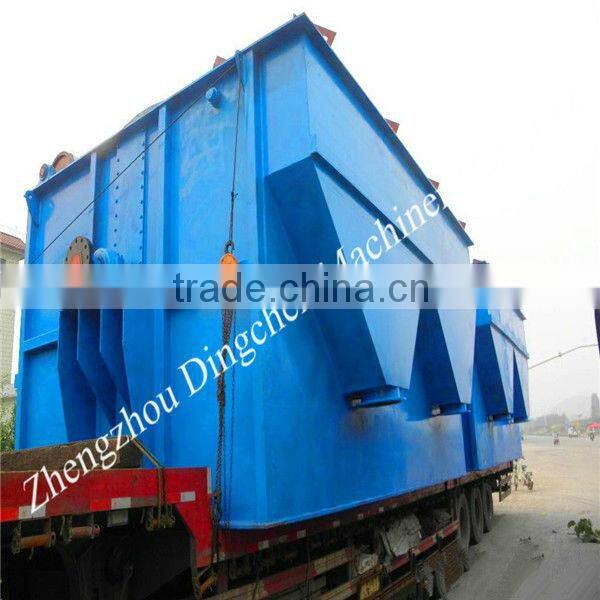

Disc pulp thickener machine of fluting and kraft paper production line

Disc pulp thickener machine of fluting and kraft paper production line
