Paper pulp hydrapulper:
1. Low noise
2. Convinient in maintenance
3. Good performance
4. Stable operat

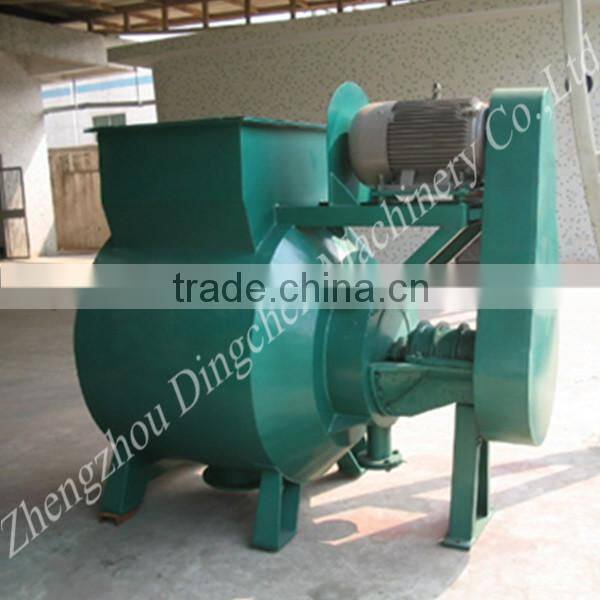

ZGS series Paper pulp hydrapulper
Usage:
This equipment is mainly used to degrade pulp board, waste paper and broken paper, deinking and pulp purification.
Our products include paper making machines, pulp making machine, parts and paper
Processing machines such as kraft paper machines, corrugated paper machines, tissue
Paper machines, cultural paper machines, newspaper machines, fiber separator,
Hydrapulper, rewinder, napkin folder, tissue slitter, paper core making machine and so on.
Our factory gathers and trains many essential technicians and management system to
Ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Syria, Egypt, Mongolia,
Pakistan, Bangladesh, Jordan, Russia, Indonesia and so on. We win high praise from
Clients at home and abroad for our sophisticated craft, high quality and excellent function.
| Item parameter model | ZGS 1 | ZGS 2 | ZGS 3 | ZGS 5 | ZGS 8 | ZGS 10 | ZGS 15 | |||||||
| Effective volume M 2 | 1 | 2 | 3 | 5 | 8 | 10 | 15 | |||||||
| Production capacity t/d | 3-4 | 6-8 | 9-12 | 15-20 | 24-32 | 30-45 | 40-80 | |||||||
| Pulp concentration% | 8~15% | |||||||||||||
| Cell body diameter mm | 1200 | 1550 | 1800 | 2200 | 2500 | 2800 | 3500 | |||||||
| Impeller diameter mm | 440 | 440 | 680 | 720 | 820 | 860 | 1050 | |||||||
| Impeller rotation speed r/min | 440 | 440 | 400 | 380 | 340 | 320 | 280 | |||||||
| Pulp discharging door diameter mm | 108 | 159 | 219 | 219 | 219 | 250 | 250 | |||||||
| Dilution door diameter mm | 50 | 89 | 89 | 89 | 108 | 108 | 108 | |||||||
| ZGS Energy-saving type | Model | Y160L-6 | Y180L-6 | Y200L 2 -6 | Y225M-6 | Y280S-6 | Y280M-6 | Y315S-6 | ||||||
| Power kw | 11 | 15 | 22 | 30 | 45 | 55 | 75 | |||||||
