JM-4600 Agile CATV Modulator / Catv / 1 Channel Headend SAW Filtered TV Modulator Electronics for Telecommunications

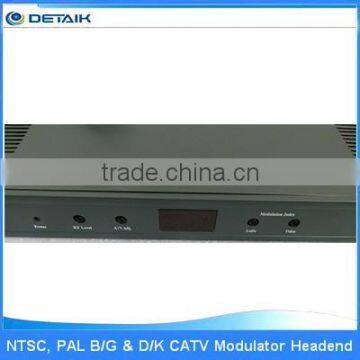

JM-4600 Agile CATV Modulator / Catv / 1 Channel Headend SAW Filtered TV Modulator Electronics for Telecommunications photo-1

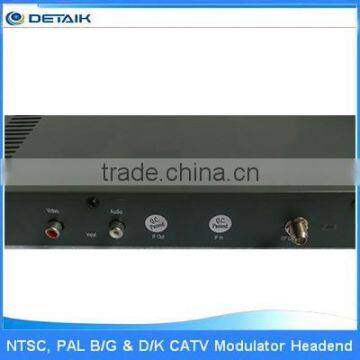

JM-4600 Agile CATV Modulator / Catv / 1 Channel Headend SAW Filtered TV Modulator Electronics for Telecommunications photo-2

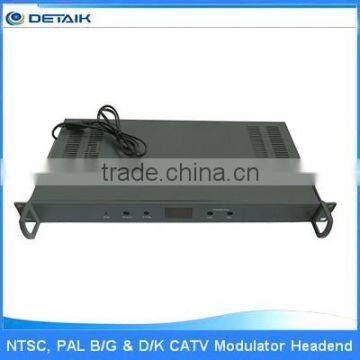

JM-4600 Agile CATV Modulator / Catv / 1 Channel Headend SAW Filtered TV Modulator Electronics for Telecommunications photo-3
JM-4600 Agile CATV Modulator / Catv / 1 Channel Headend SAW Filtered TV Modulator Electronics for Telecommunications photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JM / Detaik / OEM
Model Number:
JM-4600 Modulator
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / HongKong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JM / Detaik / OEM
Model Number JM-4600 Modulator

Specifications

JM-4600 The Agile TV Modulator / catv / headendchannel modulator system fixed by the 4-channel modulator, headend for catv.

JM-4600 Agile TV Modulator / catv / catv headend 1 Channel
SAW Filtered TV Modulator  Electronics for Telecommunications
I.Features



Professional high performance

Full channel agile mid-Frequency

Used in 48MHz 870MHz CATV adjacent channel

and UHF Broadcast  transmission system, CATV(2-134 channels),

Out- band restriction can be up to above  60dB

134 programmable channels

Digital display on front panel





II.- Specification



Output frequency range        48MHz - 871MHz

Video modulation                    87. 5% (Video input level 1Vp-p)

Video in-band flatness             <2dB

Differential gain                       <5%

Differential phase                    <

Video S/N                              >52dbB

Chr / Lum Delay                      |D| £45 ns

Audio Pre weighted                 50ps

Audio carrier modulating Fre.bias       ± 50KHz (Audio input level 0dBm ± 6dB)

Harmony wave distortion            £1%

Audio S/N                           ³ 58dB

RF output reflection loss             VHF: ³12dB

                             UHF : ³ 10dB

Image carrier Fre.Accuracy VHF : £ ±5KHz

                             UHF : £ ± 10KHz

Image carrier output level     110dBmV

Image / audio carrier power ratio (VIA     10~20dBcontinuously adjustable)

Spurious output restriction ratio           ³60dB

Image Audio carrier space          4500KHz± 3KHz

Adjacent Channel restriction                £ 45dB

Condition temperature                   5ºc~ 40ºc

Relative humidity                         £ 85%

Air pressure                         88k Pa~106k Pa

Power supplying Voltage                   90-264V± 10%

Frequency                                  50Hz± 2Hz

Power consumption                    15W

JM-4600 Agile CATV Modulator / catv / 1 channel headend
