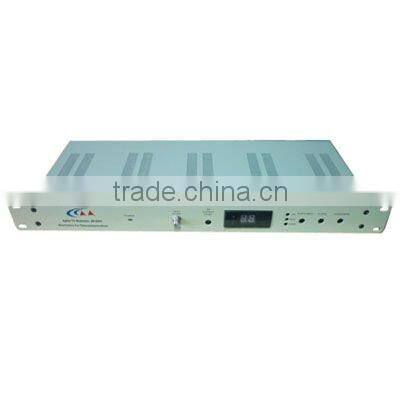

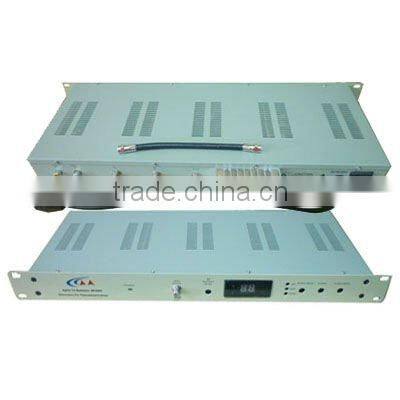

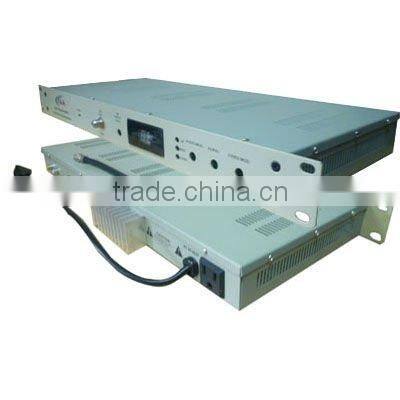

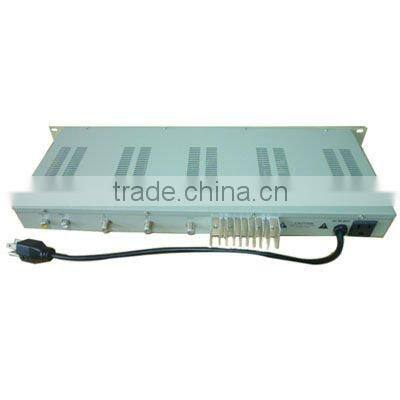

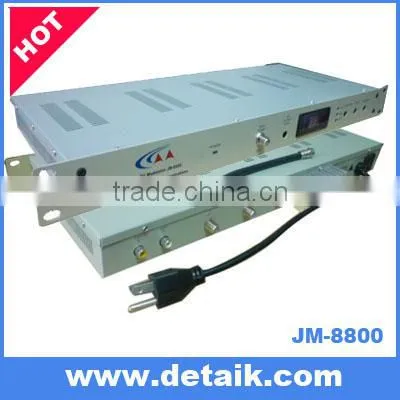

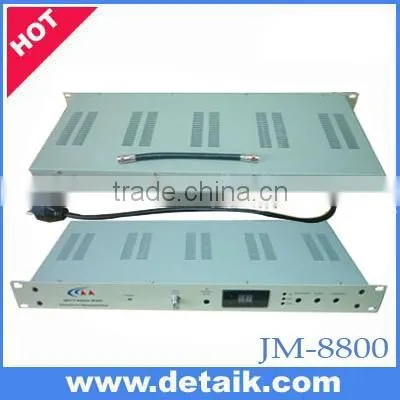

JM-8800 Modulator SAW Filtered TV Modulator Electronics for Telecommunications
Specification:
Agile adjacent TV modulator for all Channels, using high-reliability vestigial sideband filters, intermediate frequency modulation signal processing and its parasitic output rejection is greater than 60dB; four re-locked PLL frequency, stable performance and reliable; RF amplification using high-quality module components, non-linear distortion, to ensure high output level; microcomputer CPU controlled, programmable 101 channels, two LED displays the real channel, with additional (PAL-D / K system) channel instructions, and there is broken electric memory function; RF output level of up to 115dBμV (M), has an excellent linearity of audio and video; the back panel with composite IF input, output interface,suitable for Scrambling, descrambling system. receiver
Output frequency range |
MHz |
48-871PAL-D/K DS01DS58,Z01Z43Continuously adjustable PAL-B/G E02E63,S01S41 |
RF output level |
dBµV |
115M |
Parasitic output rejection ratio |
dB |
≥60(Maximum output frequency) |
RF output return loss |
dB |
≥13 |
Video transfer system |
% |
87.5(Video input level 1Vp-p) |
Video-band flatness |
dB |
±1.2 |
Differential gain |
% |
≤3 |
Differential Phase |
° |
≤3 |
Video signal to noise ratio |
dB |
≥60 |
Color / light time delay difference t |
ns |
|τ|≤45 |
Image / sound carrier power ratio (V / A) |
dB |
1020 Continuously adjustable |
