Specifications
1.Industrial grade motherboard2.2*DDR3,2G(Default),support up to 8G
3.The Chipset of Intel G41+ICH7

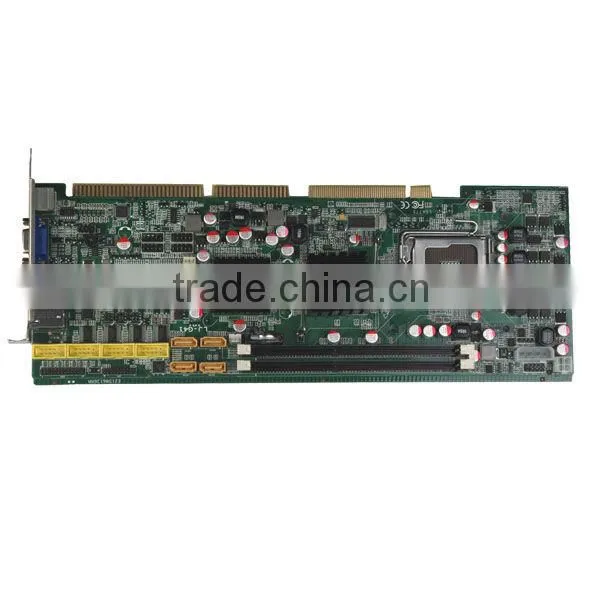

Industrial Full Size Card,LJ-G41,Supporting Core2 Quad/ Core2 Duo/Celeron Processor
Introduction
1. PICMG 1.0 form factor
2. LGA775 Intel Core 2 Extreme/Quad/Duo and Celeron processor supports up to 1333 MHz FSB
3. Dual-channel DDR3 800/1066MHz supports up to 8 GB
4. High performance PCI Express Gigabit Ethernet controller
5. Four SATA II with Intel Matrix Storage Manager support Raid 0, 1, 5 and 10
6. LingJiang One Key Recovery solution allows you to create rapid OS backup and recovery
Specification
CPU: LGA 775 Intel® Core™2 Extreme/Quad/Duo, Celeron with a
1333/1066/800MHz FSB support
System Chipset:Intel® G41+ ICH7R
BIOS:AMI bios
Ethernet:Dual PCIe Realtek 8111CP GbE controller
I/O Interface:2 x RS-232 1 x IDE 1 x LPT 1 x FDD
1 x KB/MS by 6-pin header
4 x SATAII with Intel RAID 0,1,5 and 10
8 x USB 2.0 (2 on bracket, 4 by pin header, 2 to backplane via Golden Finger)
Digital I/O: 8-bit digital I/O, 4 input/ 4 output
Super I/O: ITE IT8718F
Infrared: 1 x Infrared by 5-pin pin header
Audio:5.1 channel audio kit with Realtek ALC655 AC'97 codec7.1 channel HD
audio kit with Realtek ALC883 codec supports dual audio streams
Display Interfaces:Intel® GMA X4500VGA display output up to 2048x1536
Watchdog Timer:supports 1~255 sec. System reset
Power Supply:ATX Power
Power Consumption:3.3V/0.53A, 5V/6.2A, 12V/0.11A, Vcore_12V/2.91A (Intel Core™2 Duo
E8500 3.16GHz 1333MHz FSB CPU with 2x2GB DDR3 1333MHz)
Operation Temperature: -10°C ~ 70°C
Humidity:5% ~ 95% non-condensing
Dimensions:338.3 mm x 122 mm
