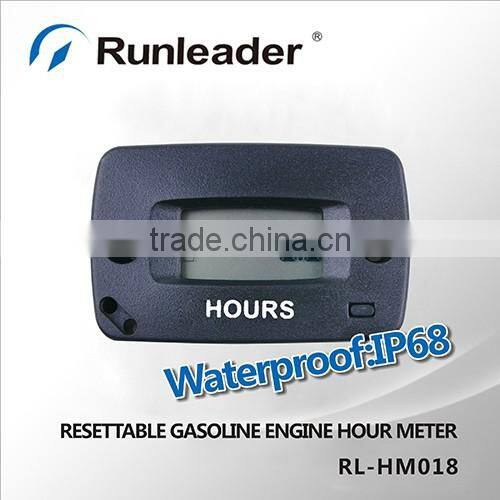

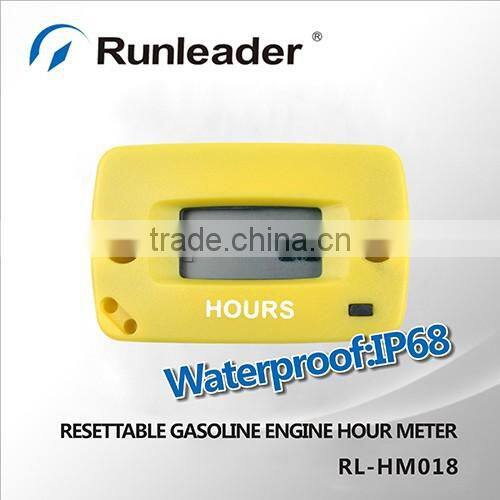

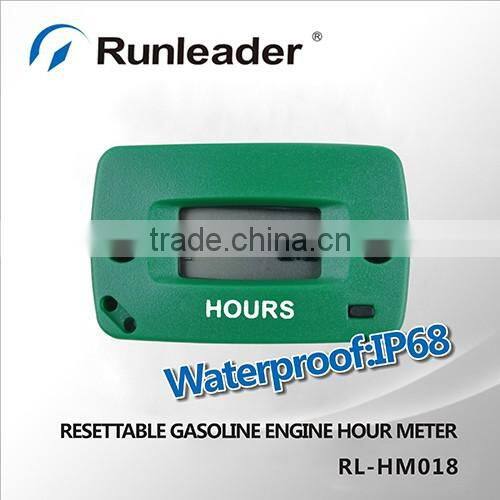

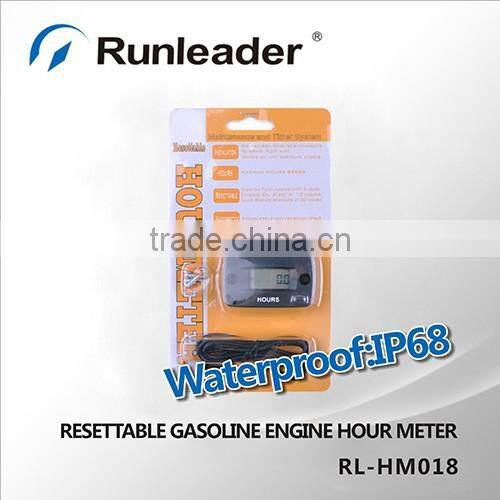

100% Waterproof Digital Hour Meter For Motorcycle,Motocross,ATV,Dirt Bike,Snowmobile,Generator,Marine,Ski
Feature:
Installation:No battery required-connects to spark plug wire.
Works on any gasoline engine.
Hours:Maximum hours 99999.
Resettable:Clean air filter flashes every 5 hours.
Change oil alert at 10 hours.
Valve service reminder at 20 hours.

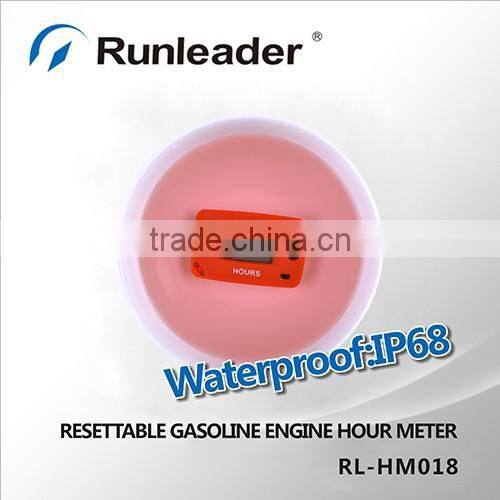

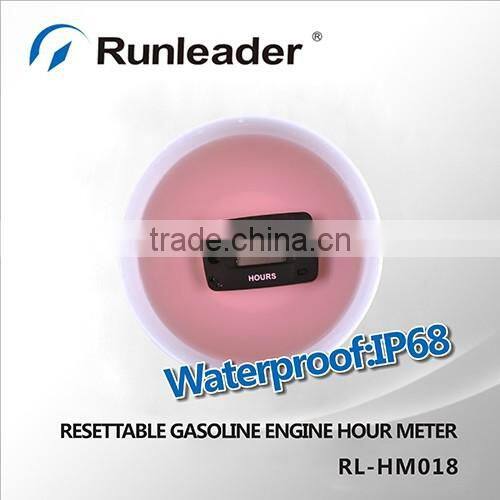

Waterproof:Completely waterproof,IP68.
Use for:motorcycle,ATV,marine or any gasoline engine 2&4 stroke.
Service on time,every time!Every 5 hours of operation clean air filter will flash,every 10 hours of running change oil will flash,at 20 hours of operation the meter will flash valve service.All functions count down showing you balance of time before scheduled service.Functions are re-settable when you hold the button down for 5 seconds.
It can be erased with the reset button.Meter include total hours accumulated mode that is non-erasable.

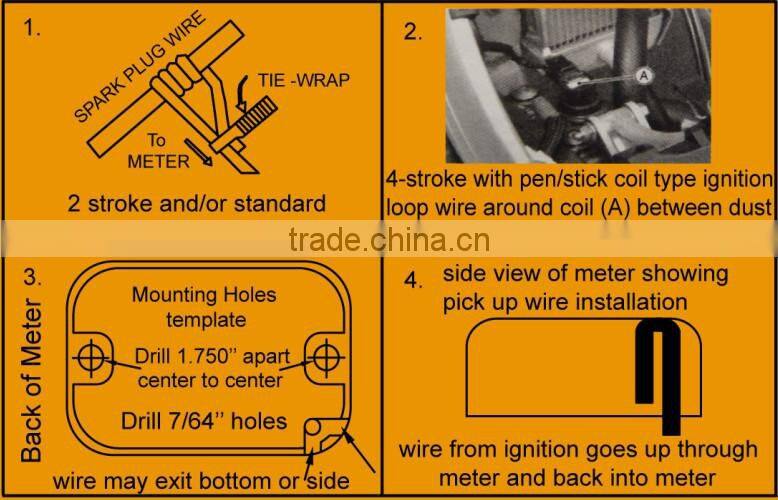

Installation:
1.Choose a location where pick-up wire(included) will reach from the meter to the spark plug.
Motorcycles mount on frame gusset behind steering stem with two sides tape or screws(included).
Caution:Do not mount meter where surface exceeds 125°F
2.If you choose a drill 7/64 holes for mounting screw do not drill into gas tank,Engine crankcase or oil
res-coir frames.If in doubt contact your local dealer.
3.Loop pick-up wire into meter through holes.
Fasten the meter to mounting surface with tape or screws.Route wire to spark plug wire and loop around outside of spark plug wire.
If your engine has a pencil/stick type coil ignition wrap the pick up wire from the meter around the dust boot of
the coil where it sits on top of the spark plug.Test installation by engine hour glass icon on meter will blink if
installed correctly.It is OK trim.

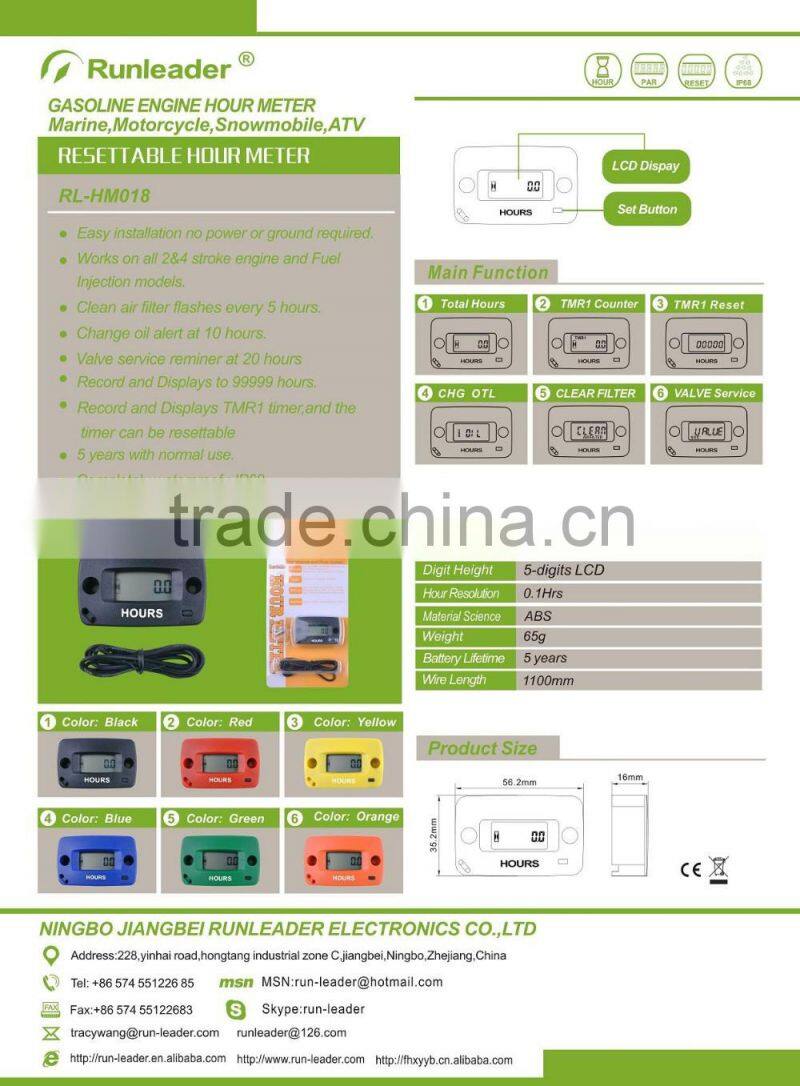

Specification:
Competitive advantage:
1. Waterproof
2. Inductive
3. No power required
4. Resettable

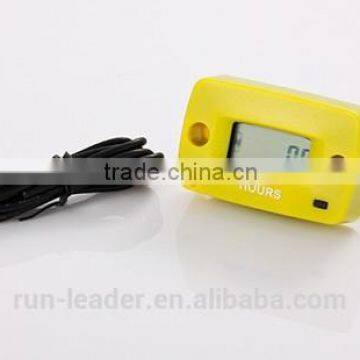

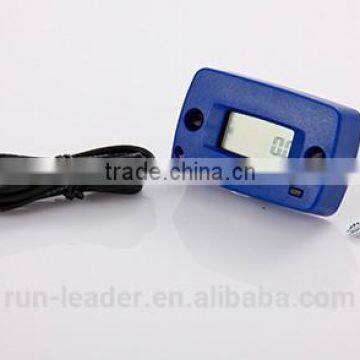

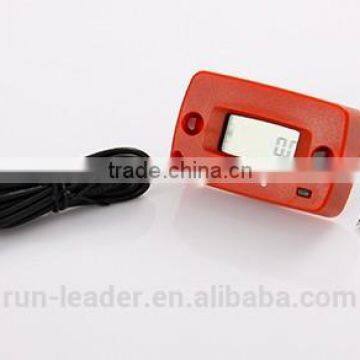

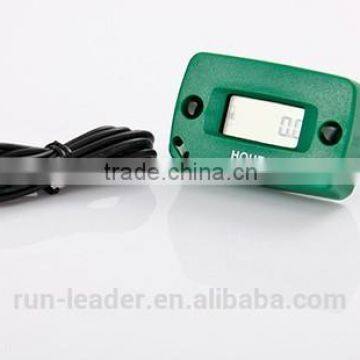

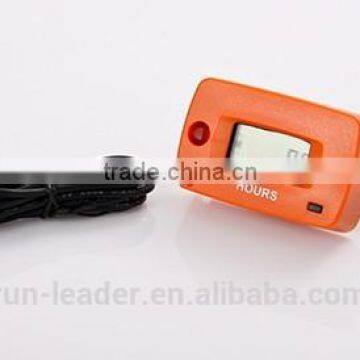

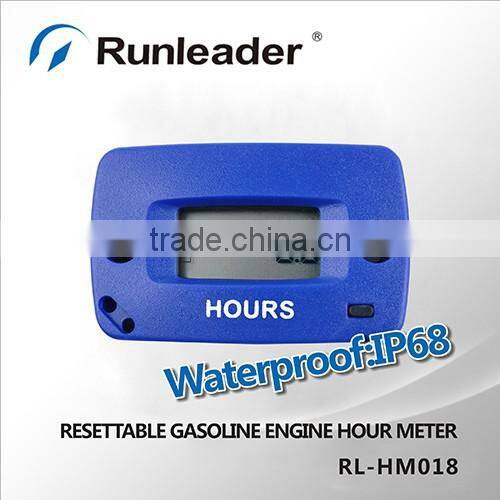

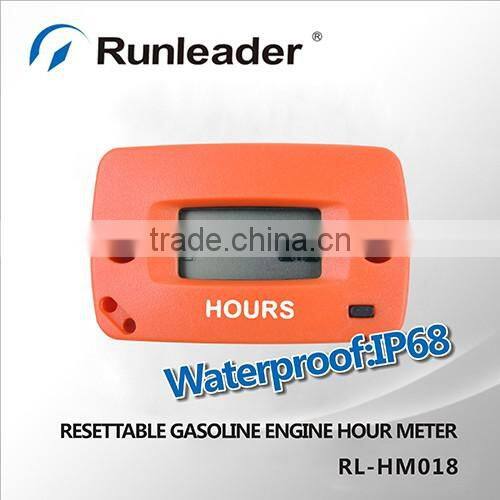

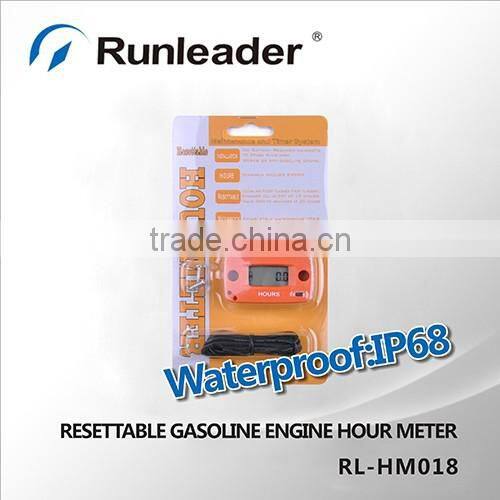

Pictures:
CE&ROHS:
About us:
Ningbo Jiangbei Run Leader Electronics Co., Limited is a manufacturer of tachometers, hour meters, counters, battery indicators, temperature gauges and so on, with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in motorcycles, snowmobiles, ATV, tractors, boats, generators and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
