China Supplier Resettable Digital Waterproof Maintenance Reminders Hour Meter For Motorcycle ATV Petrol Mini Bike Jet Ski
Hour Meter Features:
1.Easy Installation no power required.
2.Works on all 2&4 stroke engine and fuel Injection model.
3.Record and Display to 99999 hours.Displays total hours when engine is off.
4.The maintenance interval timer can be setting.
5.Total Hours can be resettable.
6. IP68 Waterproof.
Waring:
Turn engine off.Disconnect spark plug wire from spark plug.
De-energize the starting system on engines equipped with starters.

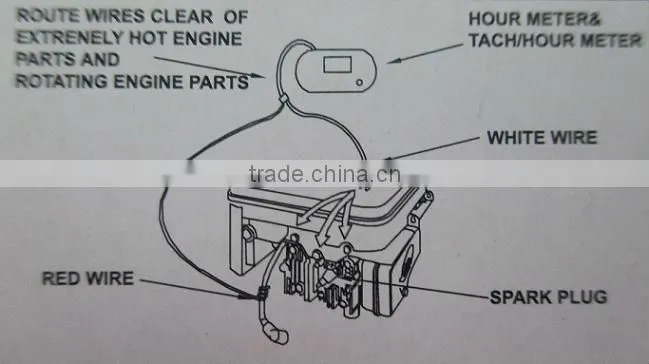

Hour Meter Installition:
Wire routing:
Route the wire with existing equipment wire harness or wrap around and tape to metal supports. After
connections are made ,wrap up any excess wire and tape.
Caution:
Keep all wires clear of extremely hot engine parts, such as exhaust area, and keep clear of any rotating parts. Cuts or burn to the wires can cause a short and the hour meter will stop working.
Red wire installation:
Wrap around an insulated section of spark plug wire 3-4 times, as shown.
Do not wrap the wire too close to where the spark plug and wire connect, vibration may cause it to come in
contact with the metal portion of the spark plug.
White wire installation:
Attach using a bolt from the engine frame or blower. Loosen the bolt and slip the solder lug between engine and bolt. Tighten bolt.
Hour meter installation:
The hour meter should be installed in a location which easily viewable and is free of dirt,grease,and oil.
Hour Meter Application:
Hour meter is used for all gasoline Engine,Marine,Motorcycle,Snowmobile,ATV,Glider,Jet Ski,Lawn Mower.etc.

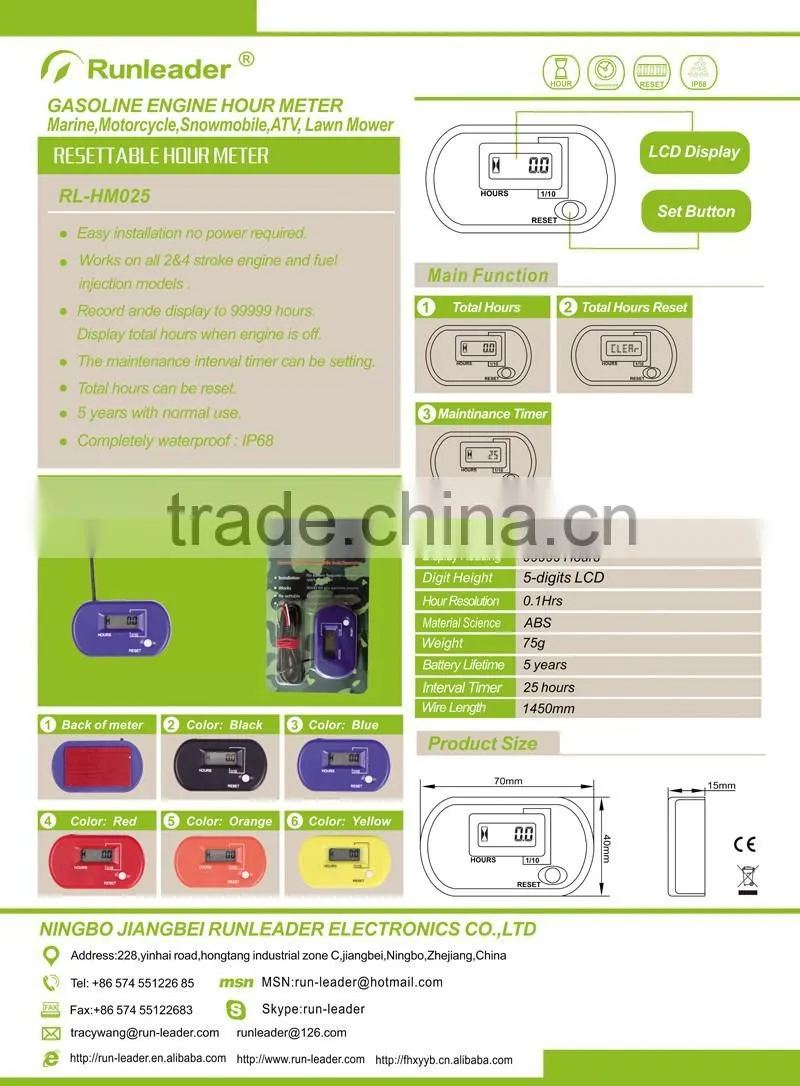

Hour Meter Specification:
Hour Meter Competitive advantage:
1. Waterproof
2. Inductive
3. No power required
4. Resettable

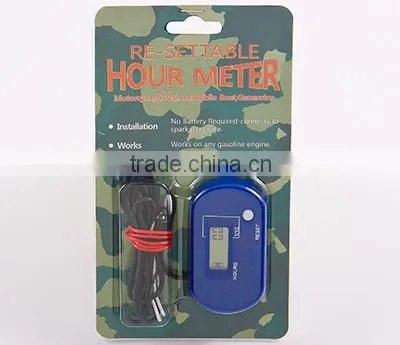

Hour Meter Pictures:
Hour Meter Passed CE&ROHS:
