Help CenterWire Mesh Pallet
US$ 5 - 10
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XIANFU
Model Number:
WM011
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
XIANFU
Model Number
WM011
Material
Q195
Wire Gauge
5-6.4
Mesh Size
50*50
Hole Shape
Square
Surface Treatment
Galvanized
Technique
Welded
Specifications
Size: Max 1350x2600mmMesh Pattern: 1''x1'', 2" x 4", 1" x 4", 2.5 " x 4"
Wire Diameter: 2.9mm - 6.2mm
Custom size available

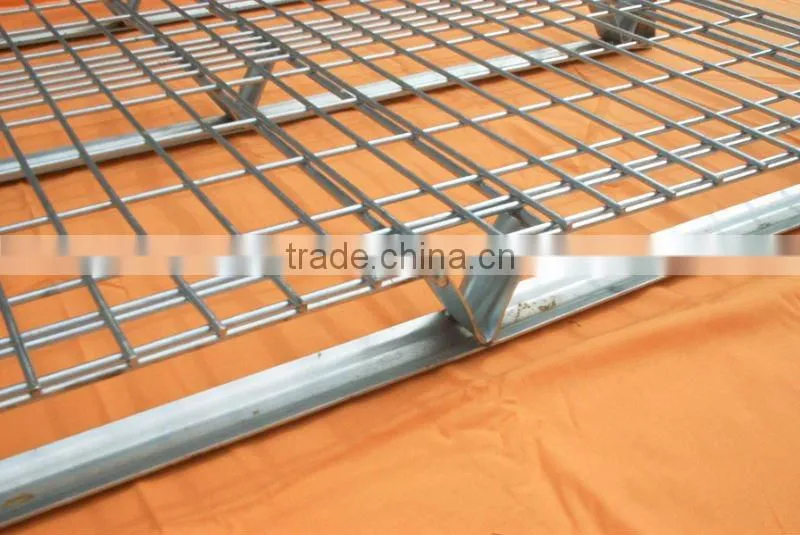

Wire Mesh Storage Wire Decking is a main products in our product line. It is widely used in warehouse, as an accompany of rack. The outside finish can be powder coated, galvanized, and also spray paint. It is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. Wire mesh decking comes in various thicknesses and mesh dimensions. Most wire mesh decking has U-shaped channel or flared supports, to support the load. With this waterfall decking, the wire mesh extends across the top and down the front of the beam to provide more support, and is more desirable in the marketplace.
Features:
- Easy to install, simply drops into place
- Improves fire safety by enhancing the performance of your overhead sprinkler system
- Protects employees and products
- Improves inventory visibility and brightens your facility
- Self-cleaning / maintenance free
- Gives you the flexibility to store cartons, drums, and multiple pallet sizes
Custom Specification Available:
- Size: Max 1350x2600mm
- Mesh Pattern: 1''x1'', 2" x 4", 1" x 4", 2.5 " x 4", 4" x 4", 2" x 2"
- Wire Diameter: 2.9mm - 6.2mm (2 - 9 Gauge)
- Finish: Zinc Plating, Powder Coating, Baked Spray Paint or Hot Dip Galvanization
Stock size popular in US market | ||||||
Model (Flared or step style) |
Size (D x L) |
Weight (lbs) |
Mesh |
Gauge / mm |
Channels |
Capacity |
2446-3-2545 |
24" x 46" |
12.4 |
2.5" x 4.5" |
4 / 5.3 |
3 |
3000 |
3046-3-2545 |
30" x 46" |
15.6 |
2.5" x 4.5" |
4 / 5.3 |
3 |
3000 |
3646-3-2545 |
36" x 46" |
18.4 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2700 |
3652-3-2545 |
36" x 52" |
19.6 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2500 |
3658-3-2545 |
36" x 58" |
21.8 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2750 |
4246-3-2545 |
42" x 46" |
21.5 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2800 |
4252-3-2545 |
42" x 52" |
23 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2500 |
4258-4-2545 |
42" x 58" |
27.5 |
2.5" x 4.5" |
4 / 5.3 |
4 |
2800 |
4446-3-2545 |
44" x 46" |
23 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2500 |
4452-3-2545 |
44'' x 52'' |
27 |
2.5" x 4.5" |
4 / 5.3 |
4 |
2600 |
4846-3-2545 |
48" x 46" |
25 |
2.5" x 4.5" |
4 / 5.3 |
3 |
2500 |
4852-4-2545 |
48" x 52" |
31 |
2.5" x 4.5" |
4 / 5.3 |
4 |
2500 |
4858-4-2545 |
48" x 58" |
33 |
2.5" x 4.5" |
4 / 5.3 |
4 |
2500 |
6046-4-2545 |
60" x 46" |
38 |
2.5" x 4.5" |
4 / 5.3 |
4 |
2500 |
Stock size popular in Australia market | ||||||
Model |
Length (mm) |
Depth (mm) |
Wire (mm) |
Mesh (mm) |
Supports |
Capacity (kgs) |
Flared wire deck |
1250, 1350 |
840, 900, 1070, 1170, 1220 |
4.0, 5.0, 5.3, 5.5 |
25x100, 50x100 |
2, 3, 4 |
500, 1000, 1500 |
Stock size popular in UK market | ||||||
Model |
Length (mm) |
Depth (mm) |
Wire (mm) |
Mesh (mm) |
Supports |
Capacity (kgs) |
Flared wire deck |
1118, 1320 |
910, 1110 |
5.0 |
50x100 |
2, 3, 4 |
1000, 1500 |
Stock size popular in France market | ||||||
Model |
Length (mm) |
Depth (mm) |
Wire (mm) |
Mesh (mm) |
Supports |
Capacity (kgs) |
Flared wire deck Step wire deck |
1000, 1050, 1100 |
880 |
5.0 |
50x100 |
3, 4 |
1000
|
