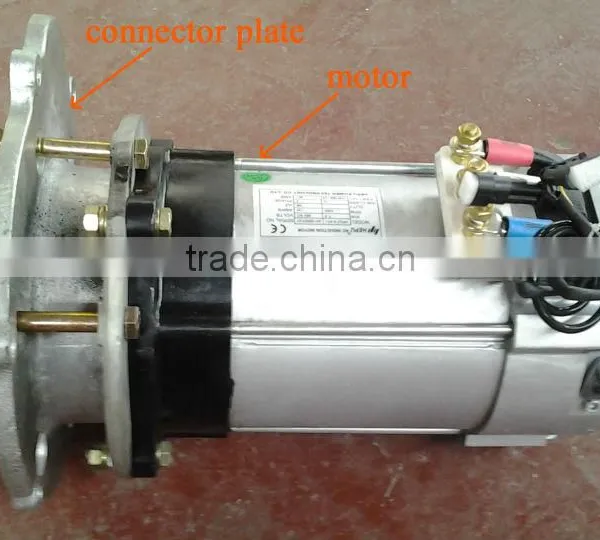

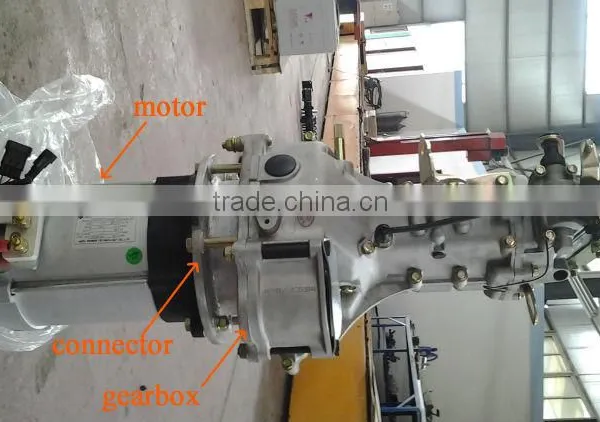

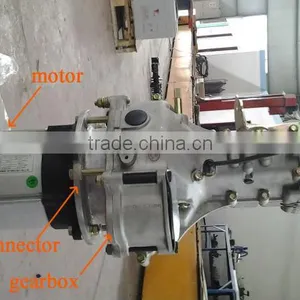

Help CenterAC Motor 10kw for Electric Car
US$ 450 - 850
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Haoyu
Model Number:
AC-10
Type:
Induction Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Brake Vacuum Pump Assembly, Brake Assist for Mini CarUS$ 125 - 185MOQ: 10 Units -
6V/8V/12V Electric Car Battery/traction Battery/Gel for Electric Vehicle,38Ah/60Ah/80Ah/100Ah/120Ah/135Ah/150Ah/180Ah/200AhUS$ 200 - 230MOQ: 20 Pieces
-
Sedan Car Spare Part-brake Pad,semi-metallicUS$ 1.8 - 4.6MOQ: 100 Sets
-
Hot Sell Electric Car Spare Part-PMSM Motor, 20kwUS$ 800 - 900MOQ: 10 Sets
-
Top Quality Electric Car Spare Part-PMSM Motor 7.5kwUS$ 680 - 800MOQ: 10 Sets
Brand Name
Haoyu
Model Number
AC-10
Type
Induction Motor
Output Power
10kw
Protect Feature
Waterproof
Phase
Three-phase
Certification
CCC
AC Voltage
Other, 96V
Place of Origin
Shandong, China
Efficiency
IE 3
Specifications
AC motor 10kw for electric car1) Power: 10kw
2) Voltage:72V,96v
3)3000rpm
AC motor 10kw for electric car
| Model | HYAC-10-96 |
| Type | 10KW,96V |
| Rated power | 10KW |
| Peak power | 20KW |
| Output method | Spline |
| Matching vehicle | High speed electric car |
| Rated voltage | 96(V) |
| Rated current | 110(A) |
| Peak current | 450(A) |
| Peak speed | 6500(rpm) |
| Rated speed | 3000(rpm) |
| Rated torque | 31.8(N.m) |
| Peak torque | 120(N.m) |
| Cooling method | Natural cooling |
| Protection degree | IP54 |
| Insulation level | H |
| Overall dimension | φ210mm x 324mm |
| Weight | 47kg |
It features:
Heavy duty commutator construction
Special purpose designs for a wide range of applications
Robust construction for long and reliable service life
Wide range of speed regulation with constant torque output
High efficiency designs for maximum run time
High efficiency motor
Fully impregnated frame and field
