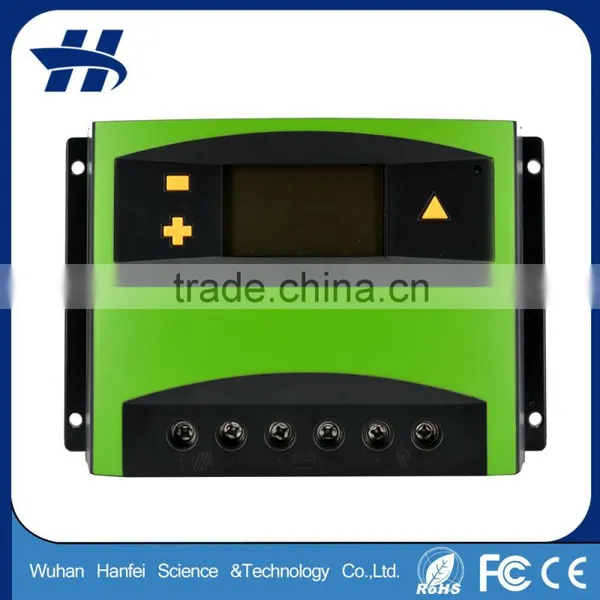

12v 24v PWM Solar Charger Controller 60A
TK series is a new series of intelligent multi-purpose solar charge controller.
It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly
installation and operation.All in all,it is a popular high-efficient product.
Features
1. Vivid LCD indicators show system battery capacity, charging and discharging state of battery.
2. Protection functions such as overcharging, over discharging, overloadand reverse connection.
3. PWM charging increases charging efficiency by 3% to 6%, compared with non-PWM charging. 4. You can adjust the parameters.
5. USB output function.
ptoduct parameters

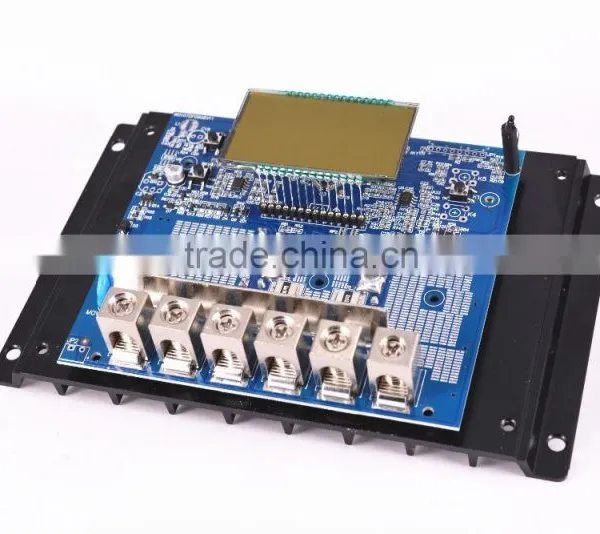

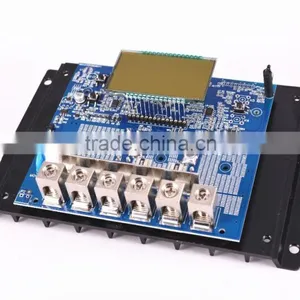

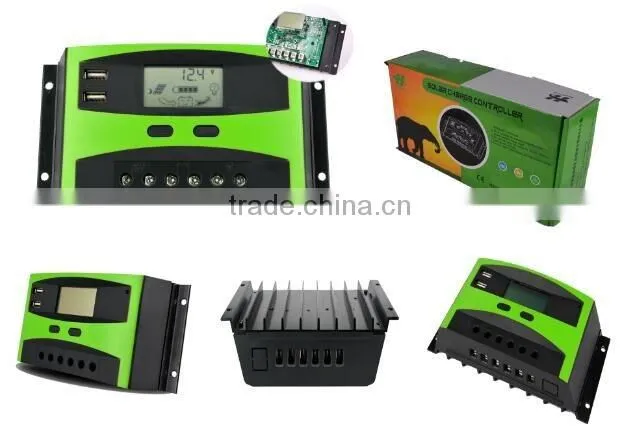

product details
Technical data
Model |
40D |
50D |
60D |
4048D |
5048D |
6048D |
||
Input | ||||||||
PV voltage |
≤50V |
≤100V |
||||||
Rated Charge Current |
40A |
50A |
60A |
40A |
50A |
60A |
||
Output | ||||||||
System Voltage |
12V/24V Auto |
48V |
||||||
HVD |
16.00V×1/×2/×4(0.5V) |
|||||||
Rated Discharge Current |
40A |
50A |
60A |
40A |
50A |
60A |
||
No-load Loss |
≤13mA |
≤15mA |
||||||
Charge Loop Voltage Drop |
≤0.17V |
≤0.28V |
≤0.17V |
≤0.28V |
||||
Discharge Loop Voltage Drop |
≤0.10V |
≤0.10V |
≤0.10V |
≤0.10V |
||||
Charging Mode |
PWM Multi-stage(bulk, absorption,float) |
|||||||
Float Charge Voltage |
13.8(13V~15V)×1/×2/×3/×4 |
|||||||
Absorption Charge Voltage |
14.4V(13V~15V) ×1/×2/×3/×4 |
|||||||
Duration of Absorption Charge |
2hs |
|||||||
LVD |
10.8V(10V~14V) ×1/×2/×3/×4 |
|||||||
LVR |
12.6V(10V~14V) ×1/×2/×3/×4 |
|||||||
Load Working Mode |
Regular Controller Mode Light Control with switch-off point at night Light control Mode |
|||||||
Light Control Voltage |
5V(1V~10V) ×1/×2/×3/×4 |
|||||||
Battery Type |
GEL, SLD, FLD and USr(default) |
|||||||
Other | ||||||||
Man-machine interface |
LCD,3 buttons |
|||||||
Heat Sink |
AL alloy |
|||||||
Wiring |
PCB terminal, ≤25mm2 |
|||||||
Working Temperature |
-20 ~ +55 °C |
|||||||
Storage Temperature |
-30 ~ +80 °C |
|||||||
Working humidity |
10% ~ 90%, No Condensation |
|||||||
Dimension |
40A & 50A(188*125*48.5mm) 60A(187*125*56mm) |
|||||||
Net weight |
562g |
701g |
564g |
703g |
||||
IP Code |
IP30 |
|||||||
FAQ
1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3 Q:What certificate do you have?
3 A:We have CE,ROHS.
4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.
5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.
6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.
7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
Wuhan Hanfei Science &Technology Co., Ltd. was established in Jul.2015 with more than 1.5 million RMB registered capital. We are a new and high-tech enterprise which was specialized in power products researching, manufacturing and marketing.
We provide products including solar charge controllers, power inverter, etc., as well as design and supply relevant solar application systems. The company has passed the ISO9001: 2008, and products have passed CE ,ROSH certificate, as well as other domestic and international authoritative certification and a number of patents. The products have been extensively applied and highly appraised in a number of major projects at home and abroad. And our customers are l in more than 120 foreign countries and regions. Also we have applied own brand “Hanfsolar” in 2015.
