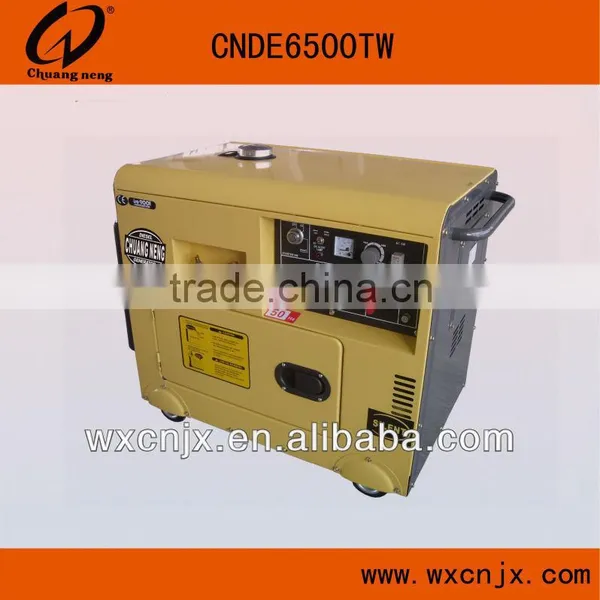

DIESEL GENERATOR (CNDE6500TW)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CHUANGNENG
Model Number:
CNDE6500TW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
CHUANGNENG
Model Number
CNDE6500TW
Output Type
DC
Speed
3000/3600rpm
Frequency
50/60Hz
Rated Voltage
230V
Rated Current
7.4/7.8A
WELDING&GENERATING SET
Technical Specification:
Model |
CNDE6500TW |
|
Rated frequency (Hz) |
50 |
60 |
Rated voltage (V) |
230 |
230 |
Rated current (A) |
7.4 |
7.8 |
Rated output power (kw) |
1.7 |
1.8 |
Phase number |
Single phase |
|
Rated rotation speed (rpm) |
3000 |
3600 |
Welding voltage at zero load(V) |
65 |
|
Rated welding DC current(A) |
180 |
|
Welding work voltage |
25-30 |
|
Welding load continuous ratio |
50% |
|
Current regulation range(A) |
80-200 |
|
Noise level (d8(A)@7m) |
70-74 |
|
Engine model |
CN186F/E |
|
Engine type |
Single cylinder, 4-stroke, air-cooled |
|
|
Direct injection, diesel engine |
|
Rated power (kw/rpm) |
5.9(8.02)/3000 6.5(8.84)/3600 |
|
Fuel |
0#(summer)-10#(winter) light diesel oil |
|
Lube |
SAE10W30(above CC grade) |
|
Fuel capacity L(gal.) |
15(3.3) |
|
Lube capacity L(gal.) |
1.65(0.36) |
|
Displacement ml(cu.in) |
418(25.51) |
|
