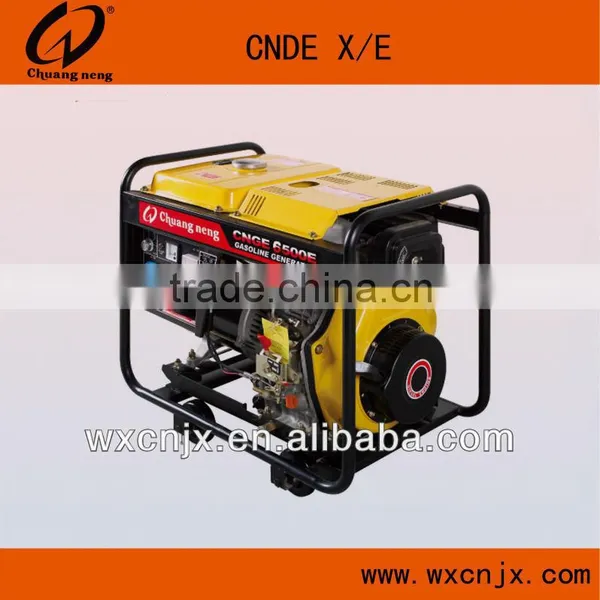

DIESEL GENERATOR SET (CNDE X/E)

Name: DIESEL GENERATOR SET (CNDE X/E)
Brand: CHUANGNENG
SKU: 102979505

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

CHUANGNENG

Model Number:

CNDE X/E

Wuxi Chuangneng Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name CHUANGNENG

Model Number CNDE X/E

Output Type DC

Speed 3000/3600rpm

Frequency 50/60Hz

Rated Voltage 230/115V

DIESEL GENERATOR SET

Techincal Specification:

Model	CNDE2500X/E		CNDE3500X/E		CNDE6500X/E
Rated frequency (Hz)	50	60	50	60	50	60
Rated voltage (V)	230	230/115	230	230/115	230	230/115
Rated current (A)	7.4	8.7/17.4	12.2	13.0/26.1	21.7	23.9/47.8
Rated output power (kw)	1.7	2	2.8	3	5	5.5
Rated rotation speed (rpm)	3000	3600	3000	3600	3000	3600
DC output	12V8.3A		12V8.3A		12V8.3A
Power factor (cos<li)	1		1		1
Phase number	Single phase/Three phase
Noise level (d8(A)@7m)	72-77		72-77		74-77
Engine model	CN170F/E		CN178F/E		CN186F/E
Engine type	Single cylinder, 4-stroke, air-cooled
	Direct injection, diesel engine
Displacement (ml(cu.in))	211(12.88)		296(18.06)		418(25.51)
Rated power (kw/rpm)	2.5/3000 2.8/3600		3.7/3000 4.0/3600		5.9/3000 6.5/3600
Fuel	0#(summer)-10#(winter) light diesel oil
Lube	SAE10W30(above CC grade)
Fuel capacity (L(gal.))	12.5(2.75)		12.5(2.75)		12.5(2.75)
