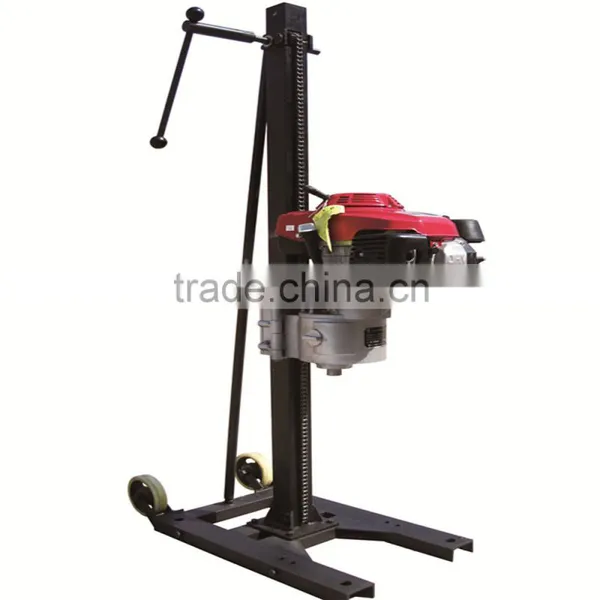

Help CenterTGQ-15 Sampling Drill Petro Geology Exploration
Related Products
Product introduction:
TGQ-15 sampling drill is light in weight, modular design, installation,
Easy to remove, suitable for the terrain and vegetation, and other conditions to restrict the construction of areas, suitable for human to move simple operation, can be achieved diamond drilling, carbide drilling, spiral drilling, etc.
Drilling technology can also rock sampling, soil sampling machine started.
Then, the performance is stable and reliable.
Product features:
Small volume, light weight, easy to operate, easy to operate
Technical parameter:
Borehole diameter 46/60(mm)
Spindle speed 150/500/1200(rpm)
Machine weight 76(kg)
Drill frame Single column bracing
Feeding way Chain sprocket
Drill frame for process 1.2(m)
Drill frame height 1.65(m)
Hand wheel and gear ratio 1 : 30
Maximum lifting force 750(kg)
Gasoline engine direct drive, deceleration box integrated design
