Increasing Module Efficiency Certificates for Solar Charge Controller
- 30000 Piece / Pieces per Month
- Shnaghai
- T/T Credit Card
- TENTEK EMS Controller 1.6kW with Smart Meter
- Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
- Ipandee Ce Fcc Rohs Certificate Pv Input Rs485 Solar Regulator Mppt 40A 12V 24V Mppt Charge Controller For Household
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
- Ipandee Off-Grid System Explorer-Ns Series Oled Display Suitable All Battery 30A 40A 50A 60A 12V 24V Solar Controller For Rv
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
Product Details
Place of Origin: | Hubei, China | Brand Name: | hanf | Model Number: | TK50D |
Application: | Solar System Controller | Rated Voltage: | Other, 12v 24v | Maximum Current: | 50A |
Product Description

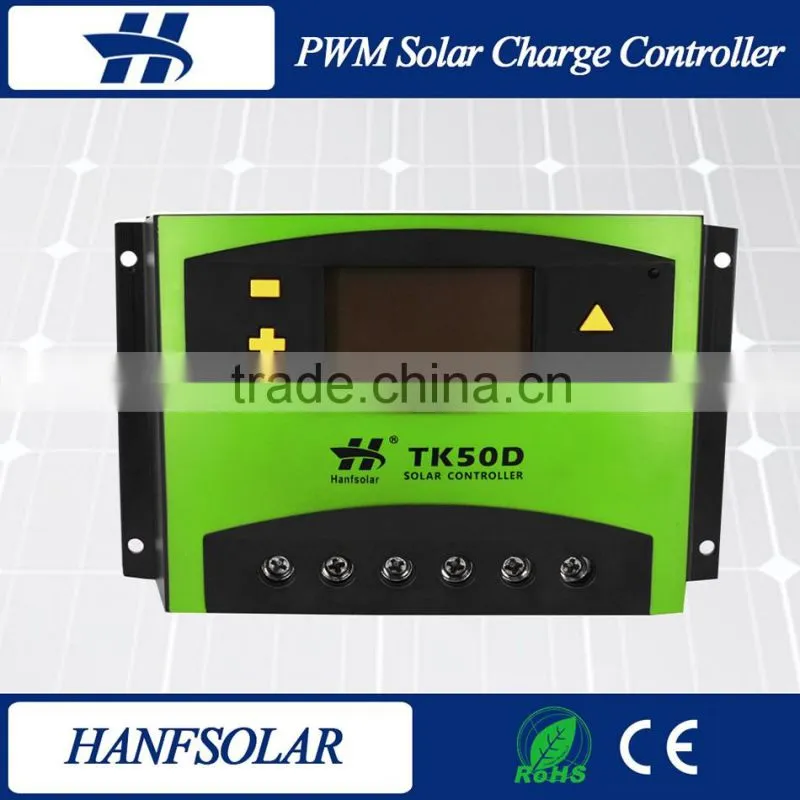

Increasing Module Efficiency Certificates for Solar Charge Controller
TK series is a new series of intelligent multi-purpose solar charge controller
It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly
installation and operation.All in all,it is a popular high-efficient product.
Ⅰ :product parameters

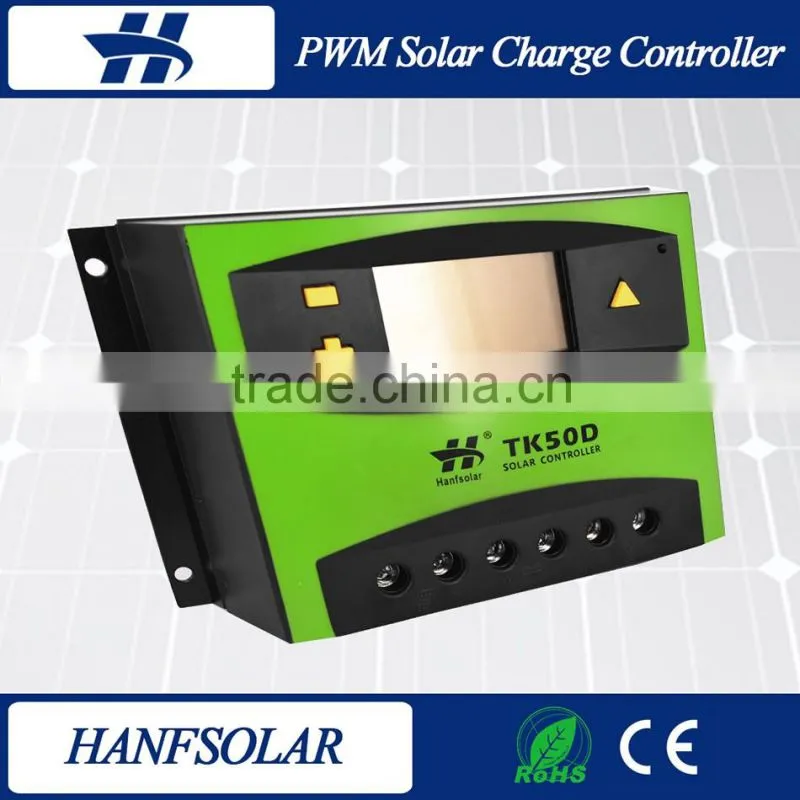

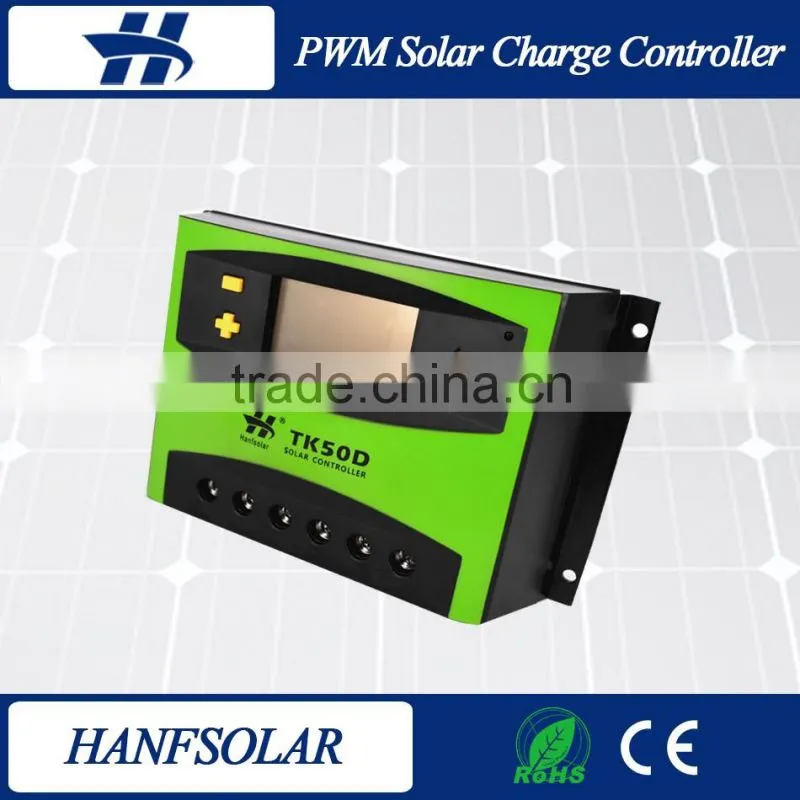

Ⅱ : product details
Product size: 188 mm * 95 mm * 47.5 mm
1pc/color box,30pcs/ctn
Ctn size:545mm*425mm*175mm
CBM/ctn:0.047
G.W:16.8kg
Ⅲ :Features:
1.Vivid LED indicators show system battery capacity,charging and discharging state of battery
2.Protection functions such as overcharging,over discharging,overload and reverse connection.
3.PWM charging increases charging efficiency by 3% to 6%,compared with non-PWM charging.
4.The parameters of charging and discharging are preset,so no need to adjust the parameters.
(special parameters need to be advised in advance)
5.USB output function
IV :Technical data :
Model | 40D | 50D | 60D | 4048D | 5048D | 6048D | ||
Input | ||||||||
PV voltage | ≤50V | ≤100V | ||||||
Rated Charge Current | 40A | 50A | 60A | 40A | 50A | 60A | ||
Output | ||||||||
System Voltage | 12V/24V Auto | 48V | ||||||
HVD | 16.00V×1/×2/×4(0.5V) | |||||||
Rated Discharge Current | 40A | 50A | 60A | 40A | 50A | 60A | ||
No-load Loss | ≤13mA | ≤15mA | ||||||
Charge Loop Voltage Drop | ≤0.17V | ≤0.28V | ≤0.17V | ≤0.28V | ||||
Discharge Loop Voltage Drop | ≤0.10V | ≤0.10V | ≤0.10V | ≤0.10V | ||||
Charging Mode | PWM Multi-stage(bulk, absorption,float) | |||||||
Float Charge Voltage | 13.8(13V~15V)×1/×2/×3/×4 | |||||||
Absorption Charge Voltage | 14.4V(13V~15V) ×1/×2/×3/×4 | |||||||
Duration of Absorption Charge | 2hs | |||||||
LVD | 10.8V(10V~14V) ×1/×2/×3/×4 | |||||||
LVR | 12.6V(10V~14V) ×1/×2/×3/×4 | |||||||
Load Working Mode | Regular Controller Mode Light Control with switch-off point at night Light control Mode | |||||||
Light Control Voltage | 5V(1V~10V) ×1/×2/×3/×4 | |||||||
Battery Type | GEL, SLD, FLD and USr(default) | |||||||
Other | ||||||||
Man-machine interface | LCD,3 buttons | |||||||

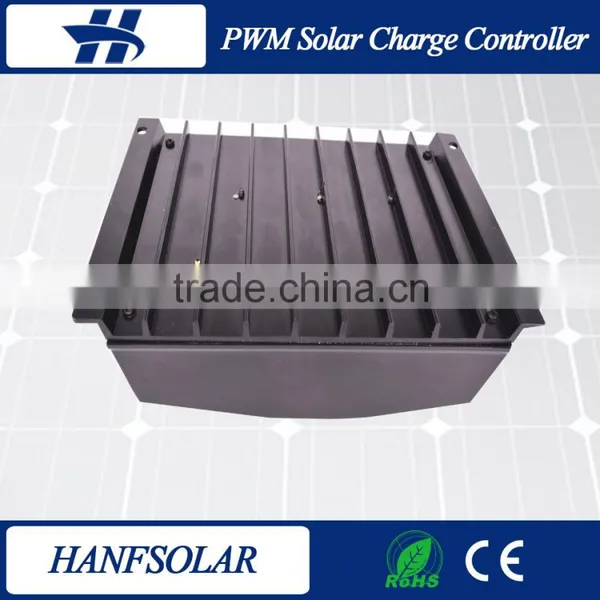

Heat Sink | AL alloy | |||||||

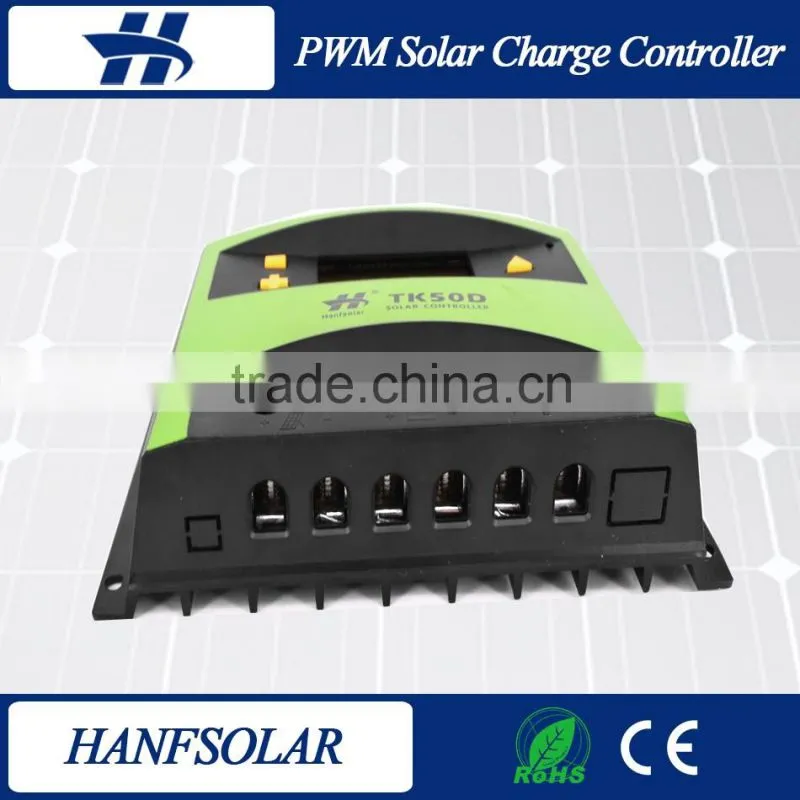

Wiring | PCB terminal, ≤25mm2 | |||||||
Working Temperature | -20 ~ +55 °C | |||||||
Storage Temperature | -30 ~ +80 °C | |||||||
Working humidity | 10% ~ 90%, No Condensation | |||||||
Dimension | 40A & 50A(188*125*48.5mm) 60A(187*125*56mm) | |||||||
Net weight | 562g | 701g | 564g | 703g | ||||
IP Code | IP30 |
1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3 Q:What certificate do you have?
3 A:We have CE,ROHS.
4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.
5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.
6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.
7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
