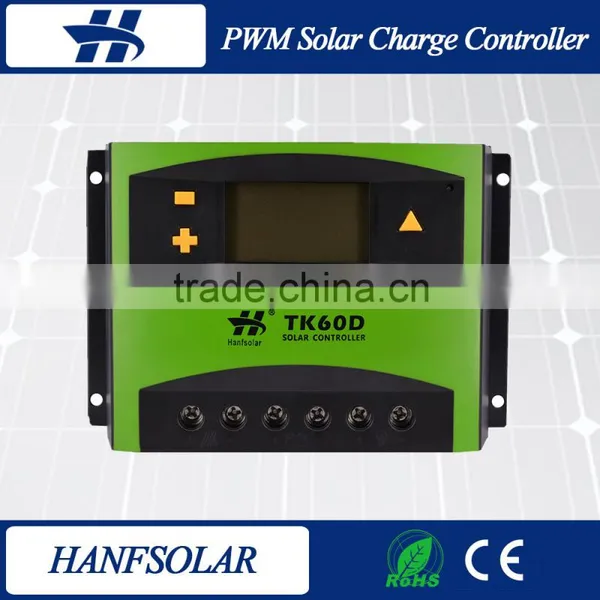

New Series of Intelligent Multi-purpose 60A 12v 24v 48v Solar Charge Controller
US$ 48 - 56
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
hanf
Model Number:
TK60D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shnaghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hanf 30A 12v 24v 48v Multi-purpose Solar Charge ControllerUS$ 19 - 22MOQ: 1 Piece -
10a Battery Overcharge Protect 12v 24v Auto 20a Solar Charge ControllerUS$ 48 - 56MOQ: 1 Piece
-
USA Stock no Tax 20A Solar Charge ControllerUS$ 9 - 11.5MOQ: 1 Piece
-
Viewstar 60A 12V/24V/48V Automatic Recognition Solar Charge ControllerUS$ 48 - 56MOQ: 1 Piece
-
Cheap Price Free Shipping for Solar Charge ControllerUS$ 32 - 37.5MOQ: 1 Piece
Place of Origin
Hubei, China
Brand Name
hanf
Model Number
TK60D
Application
Solar System Controller
Rated Voltage
Other, 12v 24v 48v Auto
Maximum Current
60A
friendly interface of fixed LCD display 50A 12v 24v 48v Auto Solar Charge Controller
Product Description
TK series is a new series of intelligent multi-purpose solar charge controller.
It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly installation and operation.All in all,it is a popular high-efficient product.
1.Connection diagram
duct details
Package Information:
Product size: 188 mm * 125 mm * 56 mm
1pc/color box,24pcs/ctn
Ctn size:545mm*425mm*175mm
CBM/ctn:0.047
G.W:20.2kg
3.Features
(1)Vivid LCD graphic symbols
(2)Simple button operation
(3)Automatic identification of system voltage level
(4)Intelligent PWM charging mode
(5)Adjustablecharge-discharge protection
(6)Automatic temperature compensation
(7)Settable operation mode of load
(8)Battery reverse-discharge protection
(9)Battery low voltage disconnection(LVD)
(10)Battery reverse connection protection
(11)Overcurrent protection
4.Technical Data
| Model | 50D | 60D | 5048D | 6048D |
| Input | ||||
| PV voltage | ≤50V | ≤100V | ||
| Rated Charge Current | 50A | 60A | 50A | 60A |
| Output | ||||
| System Voltage | 12V/24V Auto | 48V | ||
| HVD | 16.00V×1/×2/×4(0.5V) | |||
| Rated Discharge Current | 50A | 60A | 50A | 60A |
| No-load Loss | ≤13mA | ≤15mA | ||
| Charge Loop Voltage Drop | ≤0.17V | ≤0.28V | ≤0.17V | ≤0.28V |
| Discharge Loop Voltage Drop | ≤0.10V | ≤0.10V | ≤0.10V | ≤0.10V |
| Charging Mode | PWM Multi-stage(bulk, absorption,float) | |||
| Float Charge Voltage | 13.8(13V~15V)×1/×2/×4 | |||
| Absorption Charge Voltage | 14.4V(13V~15V) ×1/×2/×4 | |||
| Duration of Absorption Charge | 2hs | |||
| LVD | 10.8V(10V~14V) ×1/×2/×4 | |||
| LVR | 12.6V(10V~14V) ×1/×2/×4 | |||
| Load Working Mode | Regular Controller Mode | |||
| Light Control with switch-off point at night | ||||
| Light control Mode | ||||
| Light Control Voltage | 5V(1V~10V) ×1/×2/×4 | |||
| Battery Type | GEL, SLD, FLD and USr(default) | |||
| Other | ||||
| Man-machine interface | LCD,3 buttons | |||
| Heat Sink | AL alloy | |||
| Wiring | PCB terminal, ≤25mm2 | |||
| Working Temperature | -20 ~ +55 °C | |||
| Storage Temperature | -30 ~ +80 °C | |||
| Working humidity | 10% ~ 90%, No Condensation | |||
| Dimension | 50A(188*125*48.5mm) 60A(187*125*56mm) | |||
| Net weight | 562g | 701g | 564g | 703g |
| IP Code | IP30 | |||
Main products
Product application
Company Information
About Us
FAQ
1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3 Q:What certificate do you have?
3 A:We have CE,ROHS.
4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.
5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.
6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.
7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
