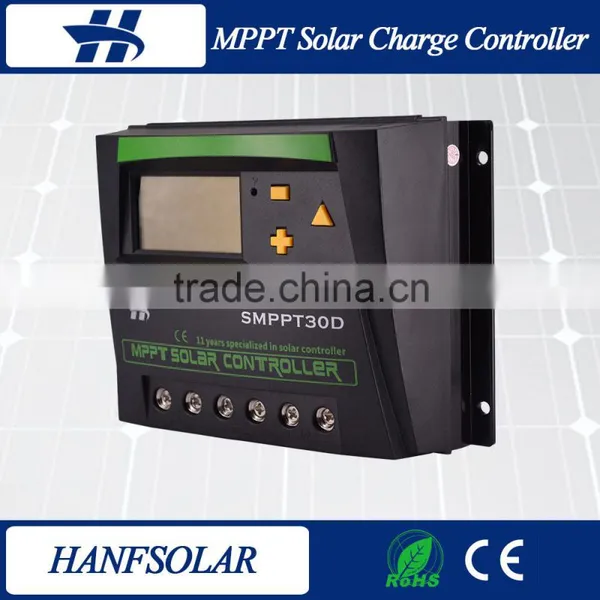

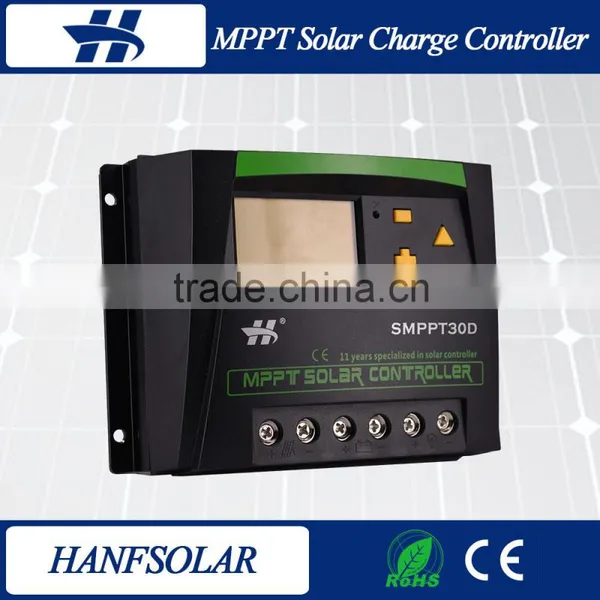

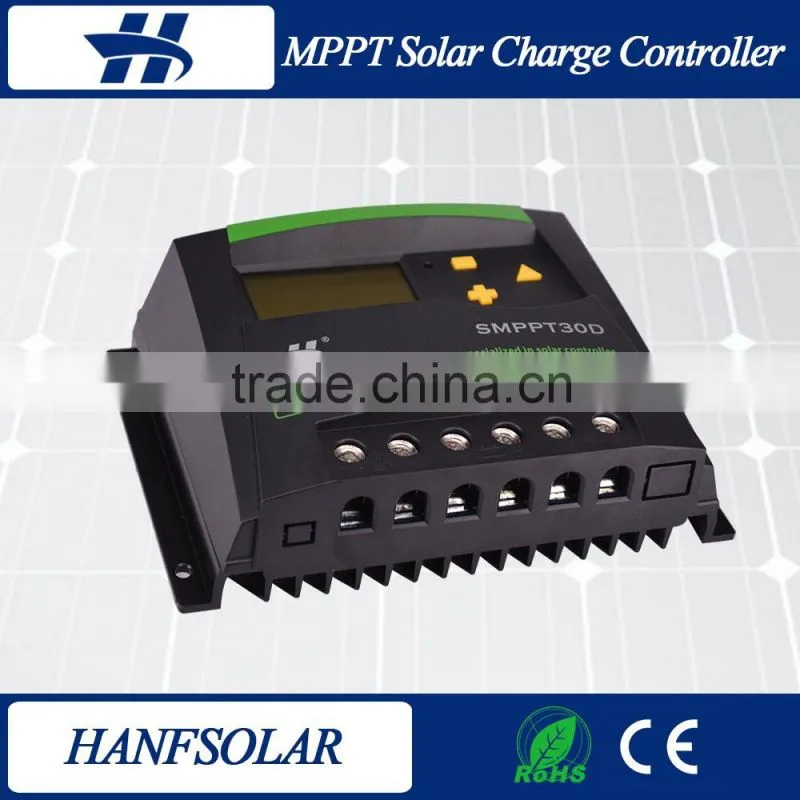

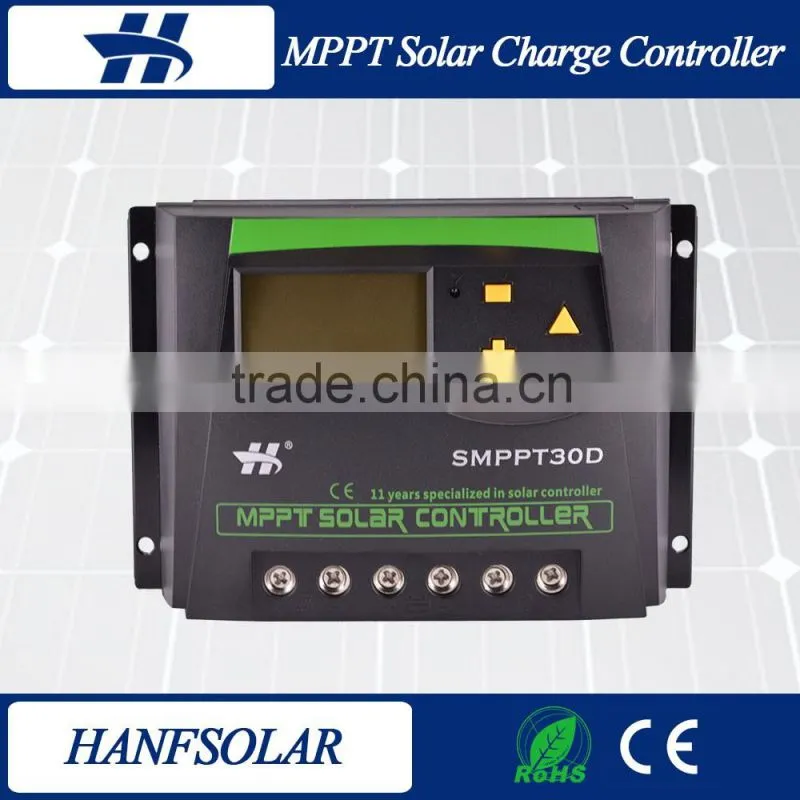

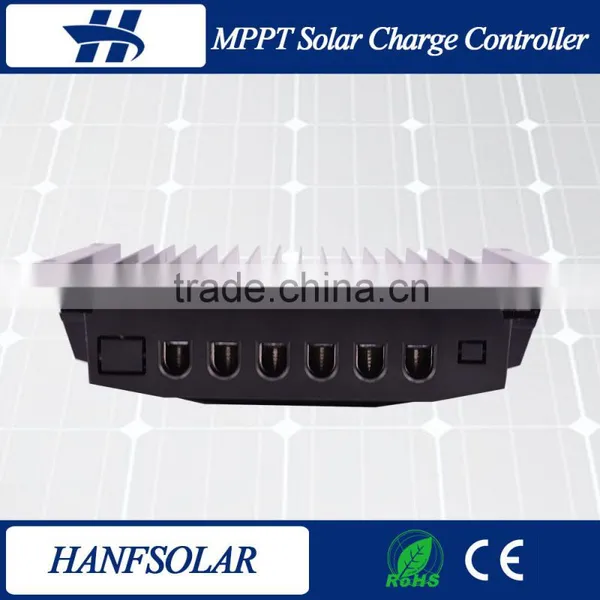

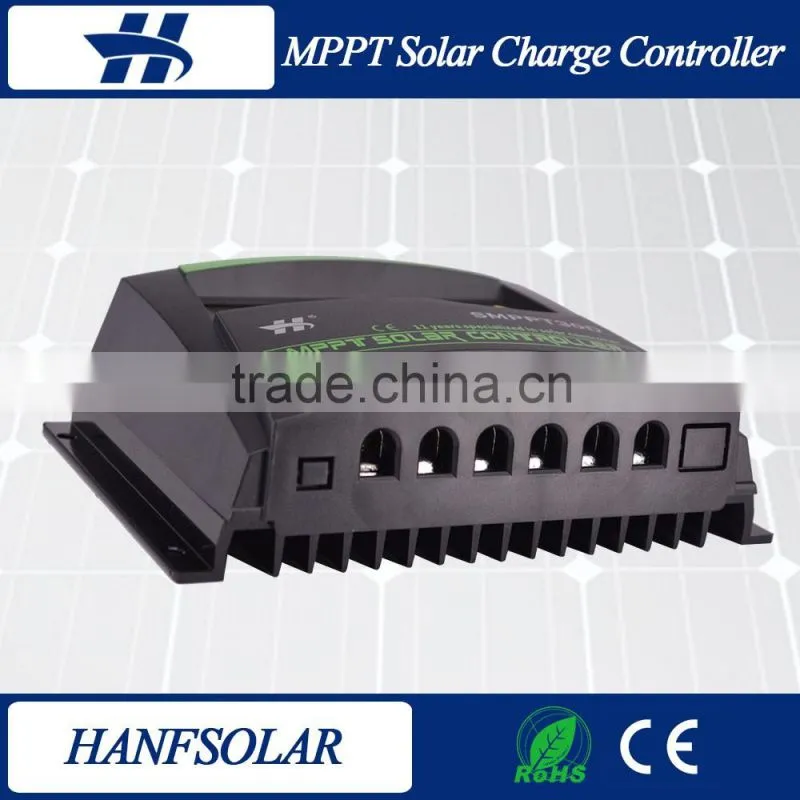

10 Years Producing Experience 12V/24V Mppt Solar Charge Controller
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
hanf
Model Number:
SMPPT30D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shnaghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Price Good Quality 10a ce Rohs Solar Charge ControllerNegotiableMOQ: 1 Piece -
Constant Voltage 12v 24v Solar Charge ControllerNegotiableMOQ: 1 Piece
-
10 A/20A/30A/40A China Price Solar Charge ControllerNegotiableMOQ: 1 Piece
-
Hanf High Quality Instruction 10a Solar Charge ControllerNegotiableMOQ: 1 Piece
-
CE and Rohs Approved Air Cooling Portable Mppt Solar Charge ControllerNegotiableMOQ: 1 Piece
Place of Origin
Hubei, China
Brand Name
hanf
Model Number
SMPPT30D
Application
Solar System Controller
Rated Voltage
Other, 12v 24v
Maximum Current
30A
10 years producing experience 12V/24V mppt solar charge controller
Product Description
Functions
(1) Maximum Power Point Tracking technology
(2) Multi-stage Charge Control
(3) Charge Voltage Temperature-compensated
(4) Discharge Control
(5) Protection against Reverse Connected Batter
(6) Protection against Reverse Connected Solar Modules
(7) Reverse Current Protection
(8) Overtemperature Protection
(9) PV Overvoltage Protection
(10) Current-limited for Excessive Charging Current
(11) Load Output Overload Protection
If the permissible load current is exceed, then the load output is switched off. The overload current vs. duration shows as follows:
| Rate of Current | Duration (s) |
| 1.1Irate ≤I< 1.2Irate | 120 |
| 1.2Irate ≤I< 1.5Irate | 60 |
| 1.5Irate ≤I< 1.8Irate | 10 |
| I≥ 1.8Irate | 0.2 |
| Note: Irate=10A, nominal load current | |
product detailsThe controller restarts the load every 3 minutes automatically, but the user can also restart the load by the Restart key.
Technical data :
| Input | Maximum PV voltage | 75V |
| Maximum input power | 390W (12V), 780W (24V) | |
| Output | System voltage | 12V (24V) |
| Maximum battery voltage | 16V (32V) | |
| Maximum charging current | 30A | |
| Maximum load current | 30A | |
| Own consumption | ≤12mA | |
| Charging control mode | 4-stage (MPPT, Absorption, Equalization, Float) | |
| Float charge | 13.8V (27.6V) | |
| Absorption charge | 14.4V (28.8V), duration 2 hours | |
| Equalization charge | 14.6V (29.2V), duration 2 hours | |
| Load disconnection (LVD) | 10.8V (21.6V) | |
| Load reconnection (LVR) | 12.6V (25.2V) | |
| Temperature compensation | -4mV/ cell/ °C | |
| Battery type | Lead acid (Gel, Sealed, Flooded) | |
| Other | Maximum efficiency | 97% |
| Human interface | LCD, buttons | |
| Cooling style | Passive cooling | |
| Maximum wire size | 25 mm2 | |
| Ambient temperature | -10 to +50 °C | |
| Storage temperature | -20 to +60 °C | |
| Humidity | 0 to 90%, no condensation | |
| Dimensions | mm | |
| Weight | Kg | |
| Grounding | Positive grounding | |
| Degree of protection | IP32 |

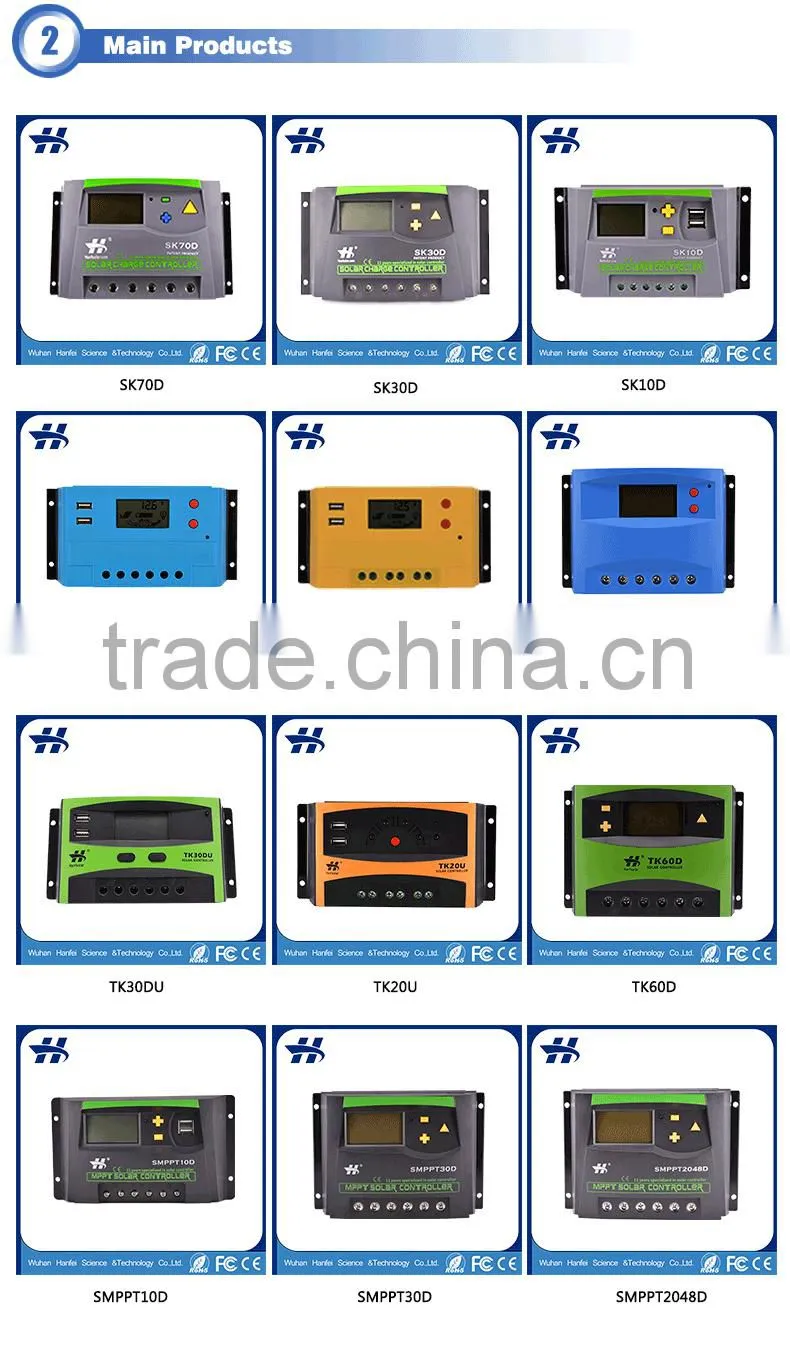

Main products
