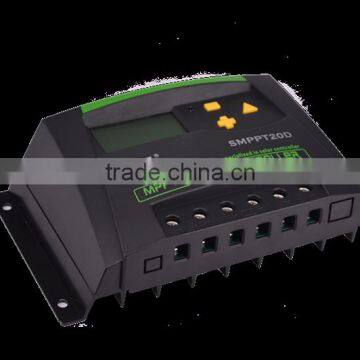

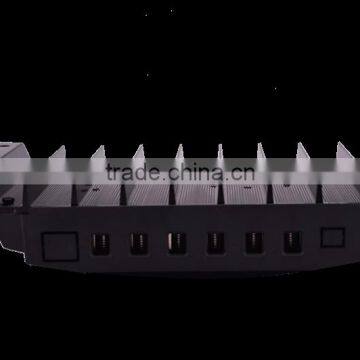

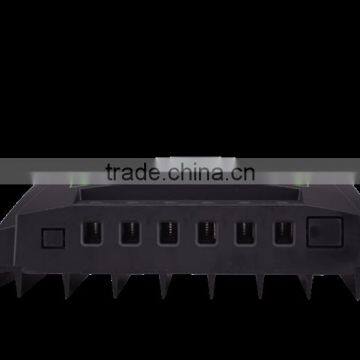

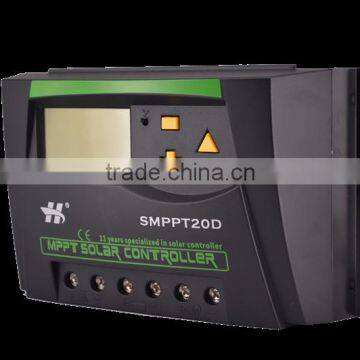

Hot Selling PWM Cheap Power 20a 12v 24v Solar Charge Controller
US$ 32 - 46
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
hanf
Model Number:
SMPPT20D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shnaghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Charging Mode 10A 12v 24v Mppt Solar Charge ControllerUS$ 25 - 31MOQ: 1 Piece -
Voltage Range 10-40V Mppt Solar Charge ControllerUS$ 25 - 31MOQ: 1 Piece
-
Inverter LCD Display 10A Mppt Solar Charge ControllerUS$ 25 - 31MOQ: 1 Piece
-
Factory Diretory 12v 24v Mppt Solar Charge ControllerUS$ 25 - 31MOQ: 1 Piece
-
Inverter Intelligent 12v 24v 10A Mppt Solar Charge ControllerUS$ 25 - 31MOQ: 1 Piece
Place of Origin
Hubei, China
Brand Name
hanf
Model Number
SMPPT20D
Application
Solar System Controller
Rated Voltage
Other, 12v 24v
Maximum Current
20A

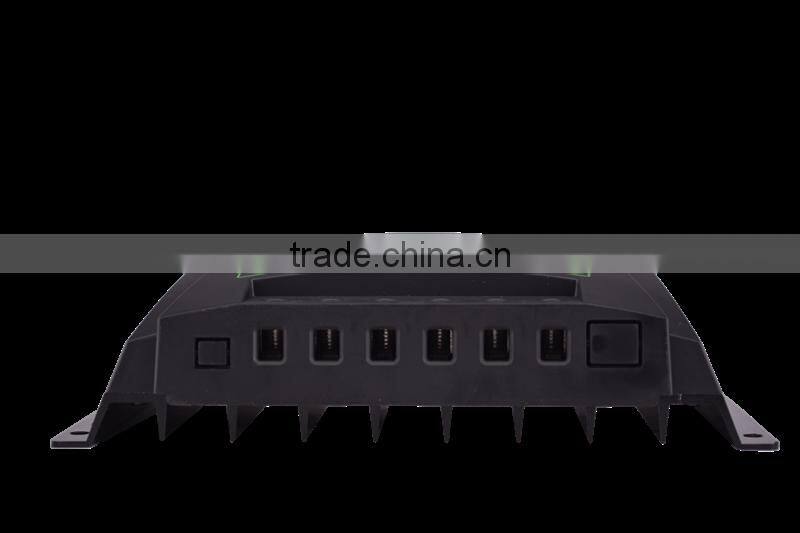

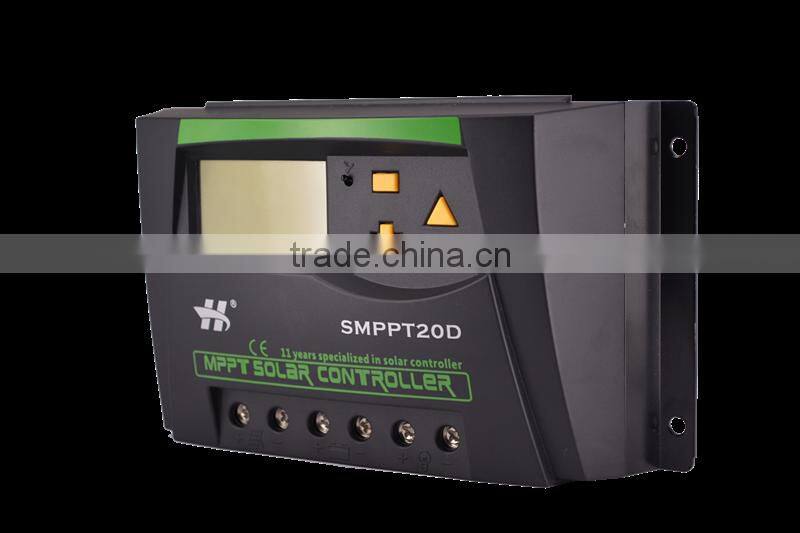

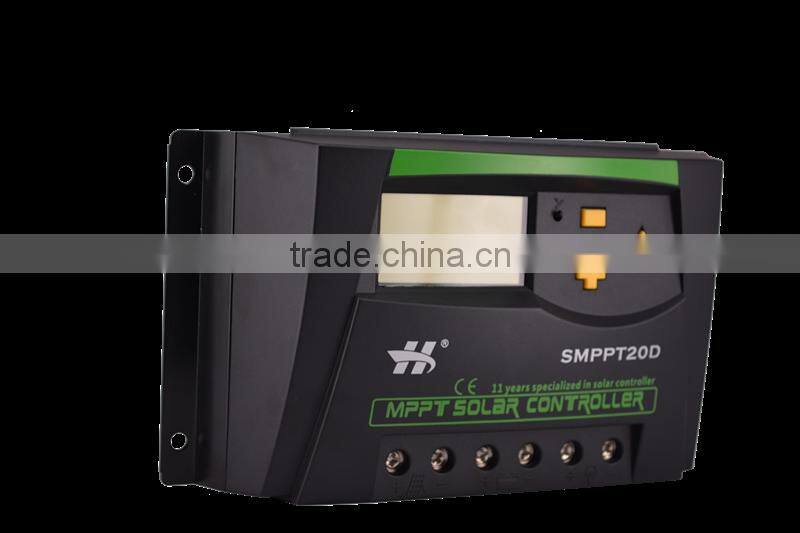

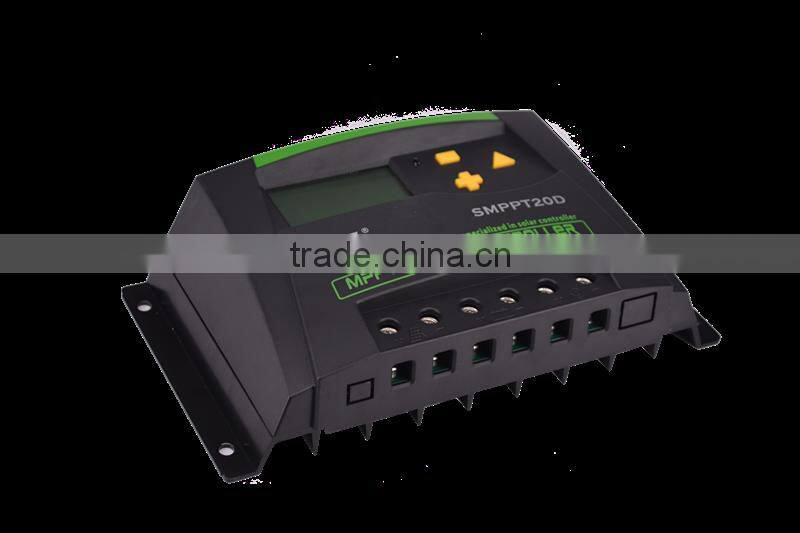

Hot Selling PWM Cheap power 20a 12v 24v solar charge controller
Product Description
Functions
(1) Maximum Power Point Tracking technology
(2) Multi-stage Charge Control
(3) Charge Voltage Temperature-compensated
(4) Discharge Control
(5) Protection against Reverse Connected Batter
(6) Protection against Reverse Connected Solar Modules
(7) Reverse Current Protection
(8) Overtemperature Protection
(9) PV Overvoltage Protection
(10) Current-limited for Excessive Charging Current
(11) Load Output Overload Protection
If the permissible load current is exceed, then the load output is switched off. The overload current vs. duration shows as follows:
| Rate of Current | Duration (s) |
| 1.1Irate ≤I< 1.2Irate | 120 |
| 1.2Irate ≤I< 1.5Irate | 60 |
| 1.5Irate ≤I< 1.8Irate | 10 |
| I≥ 1.8Irate | 0.2 |
| Note: Irate=10A, nominal load current | |
The controller restarts the load every 3 minutes automatically, but the user can also restart the load by the Restart key.
product details

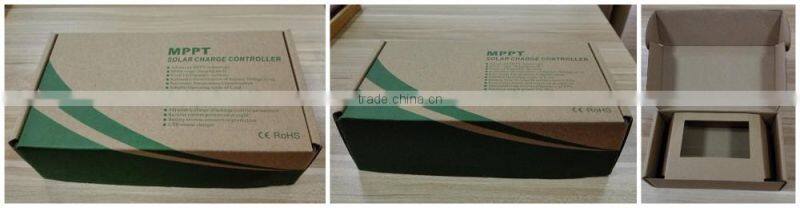

Package Information:
Product size: 196 mm * 111mm * 54mm
1pc/color box,30pcs/ctn
Ctn size:605mm*440mm*200mm
CBM/ctn:0.053m3
G.W:17kg
Technical data :
| Model | ||
| Input | Maximum PV voltage | 75V |
| Maximum input power | 260W (12V), 520W (24V) | |
| Output |
System voltage | 12V (24V) |
| Maximum battery voltage | 16V (32V) | |
| Maximum charging current | 20A | |
| Maximum load current | 20A | |
| Own consumption | ≤12mA | |
| Charging control mode | 4-stage (MPPT, Absorption, Equalization, Float) | |
| Float charge | 13.8V (27.6V) | |
| Absorption charge | 14.4V (28.8V), duration 2 hours | |
| Equalization charge | 14.6V (29.2V), duration 2 hours | |
| Load disconnection (LVD) | 10.8V (21.6V) | |
| Load reconnection (LVR) | 12.6V (25.2V) | |
| Temperature compensation | -4mV/ cell/ °C | |
| Battery type | Lead acid (Gel, Sealed, Flooded) | |
| Other |
Maximum efficiency | 97% |
| Human interface | LCD, buttons | |
| Cooling style | Passive cooling | |
| Maximum wire size | 16 mm2 | |
| Ambient temperature | -10 to +50 °C | |
| Storage temperature | -20 to +60 °C | |
| Humidity | 0 to 90%, no condensation | |
| Dimensions | mm | |
| Weight | Kg | |
| Grounding | Positive grounding | |
| Degree of protection | IP32 | |
