Specifications
3BB single monocrystalline solar cell1.International Standard
2.Perfect quality and long lifespan

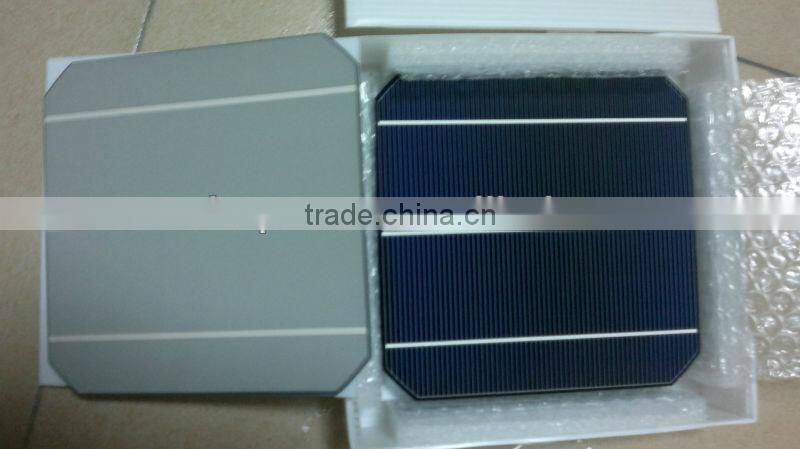

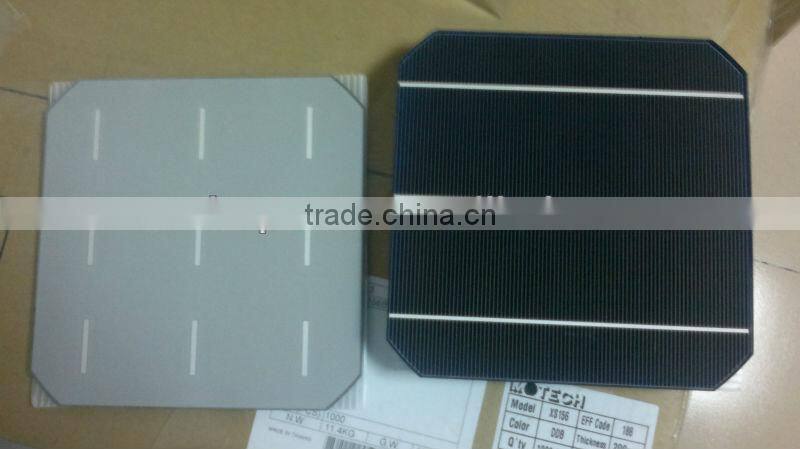

3BB single monocrystalline solar cell
Mono-Crystalline Silicon Solar Cell (3 Bus Bars)
Dimension 125mm*125mm±0.5mm
Thickness Wafer(Si):200±20μm
Cell:240±40μm
Front Silver bus bars;Dark blue/other silicon nitride antireflection coating
Back Silver/Aluminum bus bars;Full-surface aluminum BSF
| Electrical Characteristics | ||||||
| Efficiency(%) | Pmpp(W) | Umpp(V) | Impp(A) | Uoc(V) | Isc(A) | FF(%) |
| 18.60-18.80 | 2.88 | 0.536 | 5.372 | 0.637 | 5.762 | 78.45 |
| 18.40-18.60 | 2.85 | 0.533 | 5.344 | 0.636 | 5.750 | 77.89 |
| 18.20-18.40 | 2.82 | 0.528 | 5.336 | 0.635 | 5.740 | 77.3 |
| 18.00-18.20 | 2.79 | 0.526 | 5.298 | 0.634 | 5.725 | 76.78 |
| 17.80-18.00 | 2.76 | 0.523 | 5.269 | 0.633 | 5.681 | 76.63 |
| 17.60-17.80 | 2.72 | 0.518 | 5.260 | 0.631 | 5.651 | 76.41 |
| 17.40-17.60 | 2.69 | 0.513 | 5.251 | 0.630 | 5.630 | 75.95 |
| 17.20-17.40 | 2.66 | 0.508 | 5.242 | 0.628 | 5.620 | 75.44 |
| 17.00-17.20 | 2.63 | 0.503 | 5.232 | 0.627 | 5.613 | 74.78 |
Production and Quality Control :
1.Precision cell efficiency sorting procedures.
2.Strict criteria for color uniformity and appearance.
3.Reverse current and shunt resistance screening.
4.REACH-SVHC test passed, ISO9001, ISO14001 and OHSAS 18001 certificated.
5.Calibrated against Fraunhofer ISE
With strong and reliable connenction with most of the major solar cell manufacturers around the world, we can source all kinds of solar cell for our clients.
( Shenzhen Longda Bojin Technology Co., Ltd is a company registered under the name of Shenzhen JGN Solar-Energy Co., Ltd. The owners of the two companies are brother-in-laws. )
Shenzhen JGN Solar-Energy Co., Ltd entered solar business back in 2004.
We grow up from a small solar plant making small size solar panel and solar lighting products, to a company with TUV, ROHS certificates with solar panel output 500MW.
