60kw dynamo prices for vertical axis wind turbine for sale
1.Advantages of our vertical axis wind turbine:
|
1.Low starting torque. 2.Low start wind speed. 3.Low speed permanent magnet generator. 4.No vibration & low noise. 5.All of our products confirm to CE. 6.PWM constant voltage recharge function provides stable output. 7.Reliable wind power system by multifunction controller. 8.On-grid or Off-grid wind power system optional. 9.2-year warranty for generator and 20-25 years service life. 10.Electronic brake and manual brake, optional. 11.High efficiency and Low mechanical resistance energy loss. 12. Special sealed wind turbines, moisture, sand and water proof. |
2.Infomation of vertical axis wind turbine:
Rated power |
60KW |
Max power |
65KW |
Output voltage |
690V |
Rated wind speed |
10m/s |
Rotor diameter |
8m |
Blade material |
FRP |
Start-up wind speed |
3m/s |
Work wind speed |
3-25m/s |
Rotation speed |
60r/min |
Number of blades |
7 |
Turbine weight |
3500kg |
Tower height |
18m |
Tower type |
Steel (Q235B) |
Output controller system |
Controller , Inverter |
3.The vertical axis wind turbine Connection Mode:

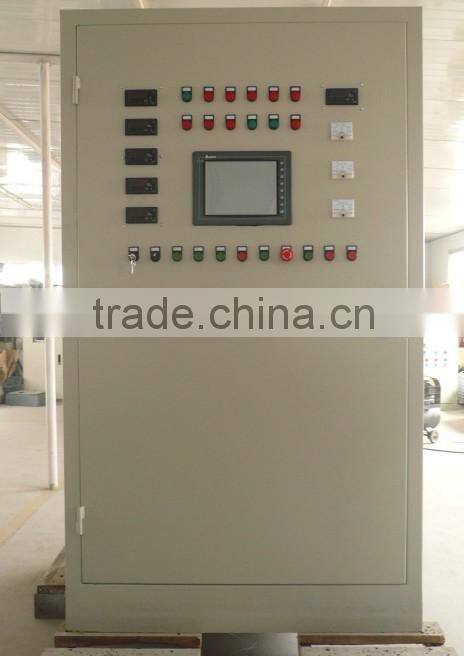

4.Control systerm of vertical axis wind turbine:
|

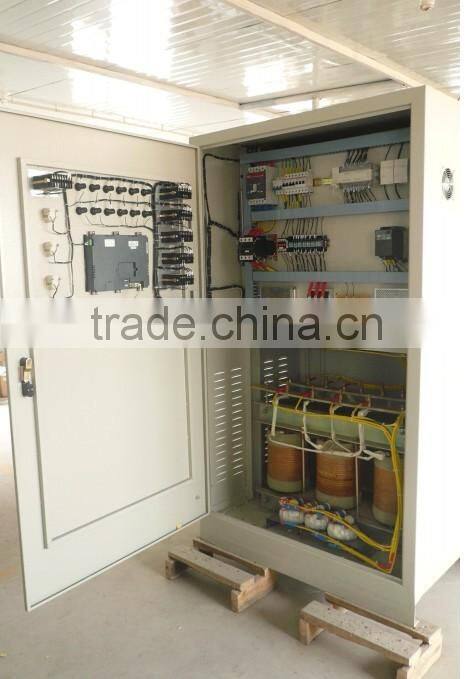

ON-GRID Control system |
Controller |
|
Rated output voltage of generator:AC690v Rated output current:70A way of protection:Manual,brake,unload. Operating environment temperature:-10℃~40℃ Relative humidity:30%~90%,>90%(No condensation) Operating environment height:<2000m Protective level:IP44 Way of cooling:enforcement Noise:30-40dB |
|

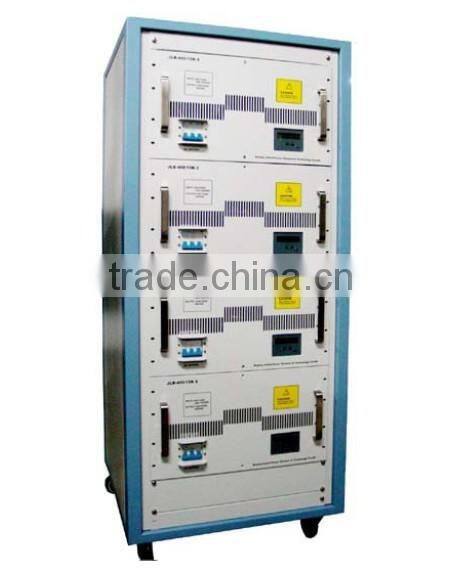

Inverter |
|
Output way of power:three phase/four lines Rated power:100KW Normal voltage:380v±3% Normal frequency:50Hz±0.05 Waveform:pure sine wave Distortion of total sinusoidal:linear load 5%,nonlinear load <8% Dynamic load and voltage transient:<5% Overload capacity:overload125% 2min,overload 150% 1min Working temperature of environment:-10℃~40℃ Relative humidity:<90% Relative humidity:<2000m(100m increase 1% decreases) Way of cooling:enforcement air-cooled(temperature controlled) Noise :50-65dB |
60kw dynamo prices for vertical axis wind turbine for sale
|
1.Tower type and tower height can be changed as per your request.
2. Working voltage can be special requested.
3. For the details,please feel free to contact us. |
5.The certificate of vertical axis wind turbine:
Look forward to your contact,and welcome to have a factory visit.
Mob: +86-18353242172
Skype: selina.zhou92
