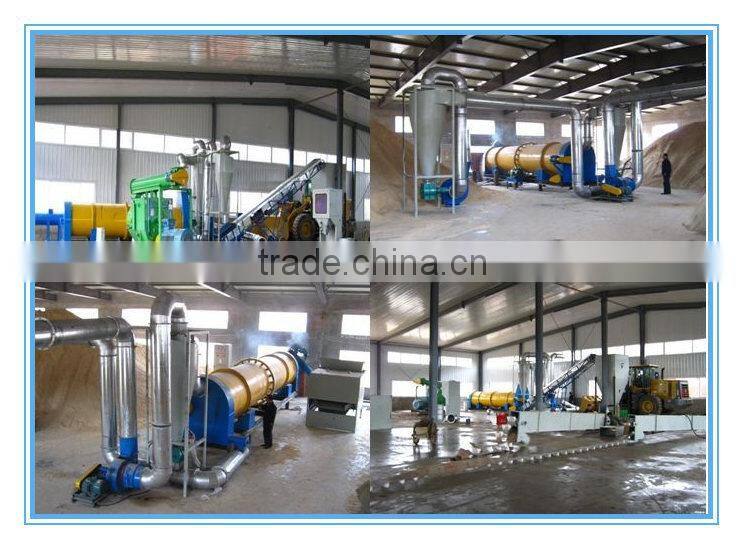

Sawdust rotary dryer
1. Shanghai quanlai sawdust rotary drum dryer component
Screw conveyor for feeding; furnace; professional sawdust rotary dryer; dust catcher; belt conveyor for discharging; control system.
2. Shanghai quanlai sawdust rotary drum dryer usage
Sawdust rotary dryer is for drying sawdust moisture from 40-45% to 13-15%, one set dryer capacity can reach 0.5-6t/h.
3. Sawdust dryer Working principle:
The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot airflow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
4. Sawdust rotary drum dryer heat source: coal; wood; oil; gas burn provide hot air for the dryer.
5. Technical Specification:
Quanlai New type Sawdust dryer | ||||
Model | Power | Capacity | Weight | Measure |
QLDS-I | 4KW | 0.8t/h | 6.5t | 1.5×5.5×2 |
QLDS-II | 5.5KW | 1.2t/h | 9.5t | 1.8×5.5×2 |
QLDS-III | 7.5KW | 2t/h | 12.5t | 2.5×9.5×2.2 |
QLDS-IV | 11KW | 2.5t/h | 15t | 2.8×9.5×2.5 |
QLDS-V | 15KW | 3.5t/h | 18t | 3.0×10×2.8 |
QLDS-VI | 18.5KW | 4t/h | 21t | 3.0×11×3.0 |
