Help CenterSOP8-R Pressure Sensor Module
Related Products
-
0.5-4.5V,10Bar, Differential Pressure Sensor ModuleNegotiableMOQ: 1000 Pieces -
SOP8-Q Square Pressure Sensor ModuleNegotiableMOQ: 1000 Pieces
-
CNG/LPG Differential Pressure Sensor ModuleNegotiableMOQ: 1000 Pieces
-
10 Bar,G1/2,220V Water Pump Digital Pressure Control WPC-10US$ 12.00 - 18.00MOQ: 10 Pieces
-
10 Bar,G1/2,220V Water Pump Digital Pressure ControllerUS$ 14.00 - 20.00MOQ: 10 Pieces
- 1.5% Maximum Error Over 0 to 85°c
- Temperature Compensated Over -40 to +125 °c
- Small Size
- High reliability, low drift

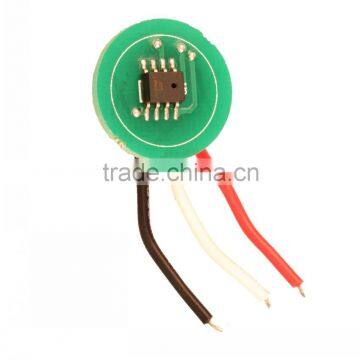

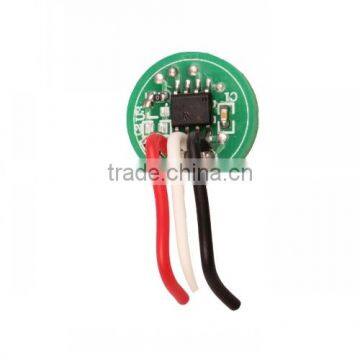

SOP8-R Pressure Sensor is consists of SOP8 packaged pressure sensor and signal conditioning circuit. The pressure sensor systems mounted on a Φ=10mm FR4 PCB. The SOP8-R Pressure Sensor has the features of the small form factor and high reliability. The pressure range of the sensor cell is 0~2000KPa absolute pressure. The supply voltage is 5 ± 0.5V,the type supply current is 2.0mA, the output is 0~5V.
The relationship between input and output can customize the characteristics design according to the requirements of the costumer.
Applications
- Automotive Pressure Monitoring
- Pneumatic Gages
- Hand-held Meters
Pin Configuration
1) Pressure sensor side 2) Sensor Signal Conditioner side
3) Lateral side
Operating Characteristics |
Table 1. Operating Characteristics (VS=5.0Vdc, TA=25℃)
Characteristic |
Symbol |
Min |
Typ |
Max |
Unit |
Supply Voltage |
Vs |
4.5 |
5 |
5.5 |
V |
Supply Current |
Io |
|
1.8 |
3 |
mV |
|
Accuracy (0 to 85℃) |
|
|
|
1.5% |
%FS |
Response Time 2 |
TR |
|
1.0 |
|
mS |
Warm-Up Time 3 |
|
|
10 |
|
mS |
Offset Stability 4 |
|
|
±0.5 |
|
%FS |
Power ON Rise Time |
Tpon |
|
|
100 |
mS |
- Device is ratiometric within this specified excitation range.
- Response Time is defined as the time for the incremental change in the output to go from 10% to 90% of its final value when subjected to a specified step change in pressure.
- Warm-up Time is defined as the time required for the product to meet the specified output voltage after the Pressure has been stabilized.
- Offset Stability is the product’s output deviation when subjected to 1000 hours of Pulsed Pressure, Temperature Cycling with Bias Test.

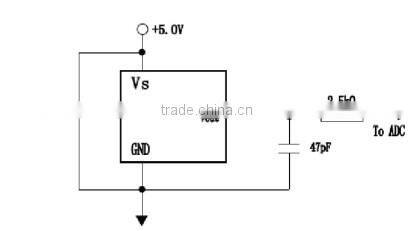

Typical Application Circuit
