SOP-8 Pressure Sensor

SOP-8 Pressure Sensor thumbnail-1
SOP-8 Pressure Sensor thumbnail-2
SOP-8 Pressure Sensor thumbnail-3

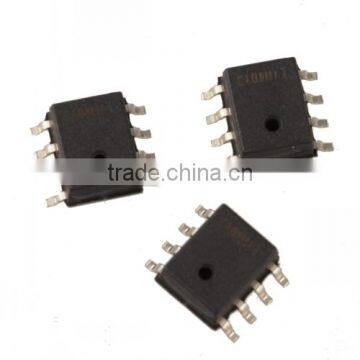

SOP-8 Pressure Sensor photo-1
SOP-8 Pressure Sensor photo-2

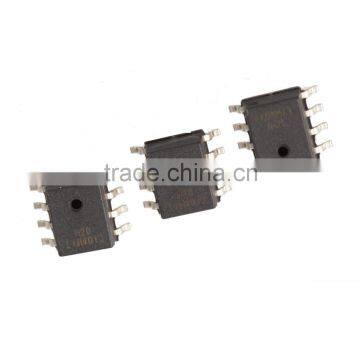

SOP-8 Pressure Sensor photo-3
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SEMORE
Model Number:
SOP-8
Contact Supplier Request Quote Chat Now
Shanghai Semore Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SEMORE
Model Number SOP-8
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor



  •  Solid, MEMS technique, high reliability
  •  Low cost surface mount package SOP8
  • Wide Temperature range (-40 to +125C)
  •  Standard pressure range: 0~150KPa, 0~300KPa, 0~700KPa, 0~1700Kpa
  •  Gel protection against humidity and water
  •  Small size
  •  High reliability, low drift



The low cost surface mount package SOP8 pressure sensor series is designed for pressure sensor systems
with highest demands on resolution and accuracy. The series of pressure sensor is a small size piezo-resistive pressure sensor.
When the input voltage is 5VDC, the sensor produces mV DC output voltage which is direct proportion of the input pressure.
Pressure sensor is the absolute pressure sensor, and we can also offer the differential pressure mode.





Applications


  •  For high resolution absolute sensor systems



  •  Engine control



  • Barometers, Altimeters, Audiometers, Magnetometer



  •  Automotive Tire Pressure Monitoring



  •  Pneumatic Ages



  • Hand-held Meters



  •  Home Appliances





























Characteristics - Specifications



All parameters are measured at 5.0V supply at room temperature, unless otherwise specified.







Min

Gyp

Max

Unit

Remarks

Excitation Voltage





5.0



V







1

Excitation Current





1.0



A

Span

(FS Range)

150KPa

70

100

150

V

300KPa

70

100

150

V

700KPa

70

100

150

V

1.7MPa

100

150

200

V

Offset



-50



50

mV

2

TC Span



-24

-19

-15.5

%FS / 100C

3

TC Offset



-7



7

%FS / 100C

3

TCR



18

22

33

% / 100C

3

Linearity



-0.45

-0.15

+0.45

%FS

4

Bridge impedance



4

5

6

kΩ



Proof Pressure



2





Fixed FS



Burst Pressure



4





Fixed FS



Operating Temperature



-40



+125

C



Storage Temperature



-55



+150

C





Notes:



  1. Measured at 5V constant voltage excitation
  2. The offset is ±50mV for 100KPa, 150KPa



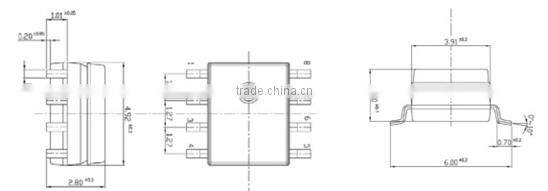

PIN

Description

1

NC

2

Out+

3

NC

4

In-

5

In-

6

Out-

7

NC

8

In+



  1. Measured from 0 to 60C
  2. Defined as best straight line







Pressure Ranges



K Pa

Type

150

SO15

300

SO30

700

SO70

1700

S170
