Home > Electrical & Electronics > Sensor > Pressure Sensor > PX005GD MEMS Medical Instrument Pressure Sensor

PX005GD MEMS Medical Instrument Pressure Sensor

Name: PX005GD MEMS Medical Instrument Pressure Sensor
Brand: SEMORE
SKU: 102954649
Availability: InStock

PX005GD MEMS Medical Instrument Pressure Sensor thumbnail-1

PX005GD MEMS Medical Instrument Pressure Sensor thumbnail-2

PX005GD MEMS Medical Instrument Pressure Sensor photo-1

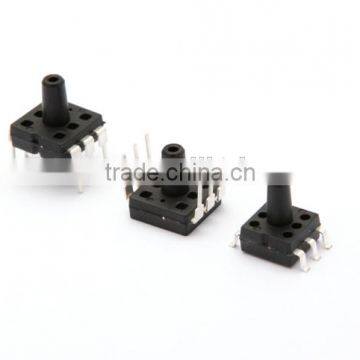

PX005GD MEMS Medical Instrument Pressure Sensor photo-2

US$ 0.75 - 0.85 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SEMORE

Model Number:

PX005GD

Contact Supplier Request Quote Chat Now

Shanghai Semore Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SEMORE

Model Number PX005GD

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Solid state, MEMS technology, high reliability
Low cost
Standard pressure range :0-5.8 PSi (40KPa)
Ease of use.

PX005GD Sphygmomanometer MEMS pressure sensor of international advanced TO8 packaging technology to measure the pressure gauge pressure 0-40KPa, can be used for blood pressure, air pressure, pipeline gas, and other aspects of the pressure measurement, stable and reliable performance.

DIP form of a table pressure sensor. When using 3VDC power supply, the sensor generates a millivolt output voltage proportional to the input pressure.

Technical Parameters
Model Number	PX005GD Series
Pressure Range	5.8psi(Gauge Pressure)
Size	8.48.48.9mm(not including the size of pin)
Overload Capacity	Double
Working voltage	5VDC or constant current 1 mA(typical)
Output Signal	mV
Accuracy	±0.2%FS
Operating Temperature	-55~+150°C
Pressure Medium	No-corrosive Gas, Liquid and Steam
Application	Blood pressure monitors, medical devices and monitoring, environmental measurement, consumer products and sports products
