300W Vertical Windmill Blades,wind Generator China

300W Vertical Windmill Blades,wind Generator China photo-1
300W Vertical Windmill Blades,wind Generator China photo-2
300W Vertical Windmill Blades,wind Generator China photo-3

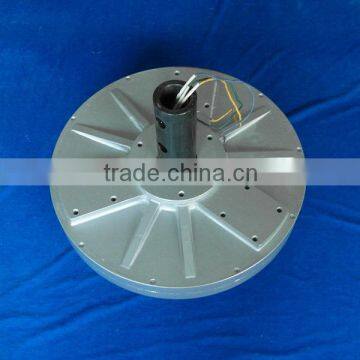

300W Vertical Windmill Blades,wind Generator China photo-4

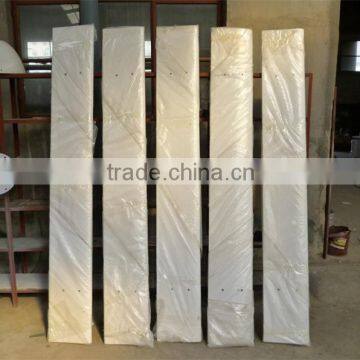

300W Vertical Windmill Blades,wind Generator China photo-5

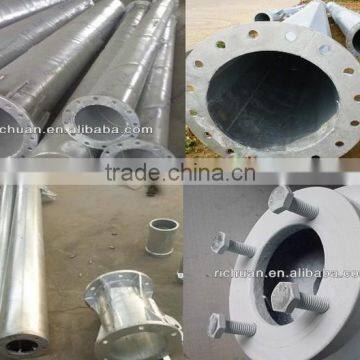

300W Vertical Windmill Blades,wind Generator China photo-6
US$ 970 - 1,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
RICHUAN
Model Number:
RCVA-300W, RCHA-300w
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name RICHUAN
Model Number RCVA-300W, RCHA-300w



300W vertical windmill blades,wind generator china



Product Description



1.Advantages of our wind generator china:

300W vertical windmill blades,wind generator china

 1.Low starting torque.

 2.Low start wind speed.

 3.Low speed permanent magnet generator.

 4.No vibration & low noise.

 5.All of our products confirm to CE.

 6.PWM constant voltage recharge function provides stable output.

 7.Reliable wind power system by multifunction controller.

 8.On-grid or Off-grid wind power system optional.

 9.2-year warranty for generator and 20-25 years service life.

10.Electronic brake and manual brake, optional.

11.High efficiency and Low mechanical resistance energy loss.

12. Special sealed wind turbines, moisture, sand and water proof.



300W vertical windmill blades,wind generator china

   300w house using vertical wind turbine

2.Infomation of wind generator china:

300w Vertical Axis Wind Turbine Generator OFF-GRID
Power300W
Type of generatorPermanent-magnet 24vA.C.
Rotor diameter:1.2m
Blade Material:FRP (Fiber glass reinforced*5)
Rated rotor speed150r/min
Rated speed10m/s
Rated Power300W
Max Power450w
Start up wind speed3(m/s)
Work speed3-25(m/s)
Security wind speed40(m/s)
Height of guy cable tower6m
Top quality except tower75kg
Output controller systemController , Inverter

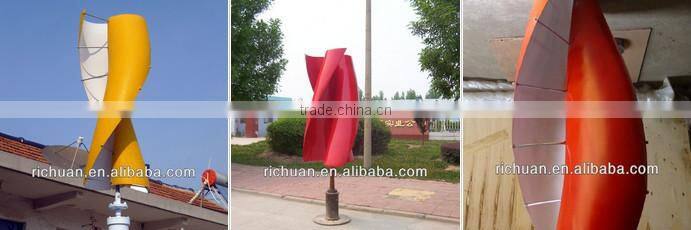

3.The wind generator china pictures for referance:

300W vertical windmill blades,wind generator china

300W vertical windmill blades,wind generator china

4.Control systerm of wind generator china:



Micro-computer intelligence controller:

300W vertical windmill blades,wind generator china

1. If the system meet problem,and the wind turbine is running ,it can prevent the wind turbine race rotation.

2 .Have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.

3. When the charge current is high in strong wind, controller can load the wind turbine automatically. And charging the battery with low current.

4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop chargingthe batteries.

5. The wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%.

6. Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.



Pure sine wave inverter:

300W vertical windmill blades,wind generator china



1. Pure sine wave output can drive any household appliances.

2. Use integrated circuit, less wire connection.

3. Adopting micro-processor technology, improving system integration.

4. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short. circuit protection, over thermal protection, etc.

5. Be able to work in wind power or wind&solar hybrid system.

6. With high efficiency transformer instead of high frequency e-circuit design.

7. Automatic regulate voltage.

8. LCD display operation status.

9. High running stability and reliability.

10. True sine wave form power output.

11. High efficient transformer isolation.

12. Buzzer alarm while over-loading/voltage, high-temperature.



Packaging & Shipping



300W vertical windmill blades,wind generator china



5.Packaging&shipping of wind generator china:

300W vertical windmill blades,wind generator china

6.The factory of w wind generator china:

7.The wind generator china installation instructions:

300W vertical windmill blades,wind generator china

300W vertical windmill blades,wind generator china

300W vertical windmill blades,wind generator china



300W vertical windmill blades,wind generator china300W vertical windmill blades,wind generator china



Company Information



300W vertical windmill blades,wind generator china

8.Company information:

Qingdao Richuan Precision Machinery Co., Ltd. is a high-tech company located in Qngdao,engaged in the research,development,production,sales and service o small-and medium-scale wind turbines.



Our main products include horizontal axis and vertical axis wind turbines,off-grid and grid-connected,solar panels and wind-solar hybrid lighting systerms.These units are now widely used in agricultural and pastoral areas,mountainous areas,island,frontier defense sentry station,observatories and other areas with insufficient electricity and rich wind resources.

9.The markets of our wind generator china:



High quality and competitive price guarantee us a huge market all over the world , such as in  Eastern Asia , Europe , North America ,South America and Middle East .etc.



10.The certificate of wind generator china:



300W vertical windmill blades,wind generator china



Our Services





300W vertical windmill blades,wind generator china

1.Tower type and tower height can be changed as per your request.



2. Working voltage can be special requested.



3. For the details,please feel free to contact us.



FAQ



300W vertical windmill blades,wind generator china

 1: Are you a manufacturer?
A1:yes. We have 5 years export exprience.

2. If I want cheaper quality, can you produce?
A5.Yes, just send us your quality details, such as the material, what cheaper
parts instead etc, we will do that as your request and calculate the price.


3. If I order big quantity, what's the good price?
A6.Please send the details enquiry to us, such as the Item Number, Quantity
for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.



Look forward to your contact,and welcome to have a factory visit.
