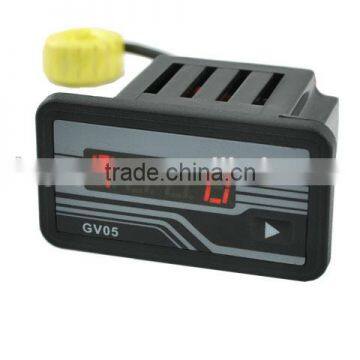

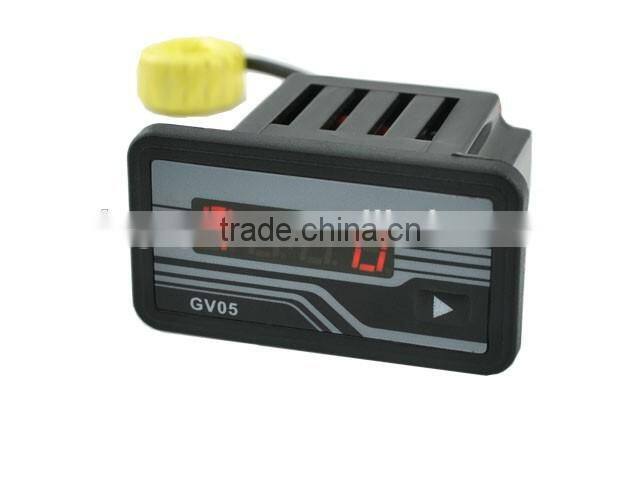

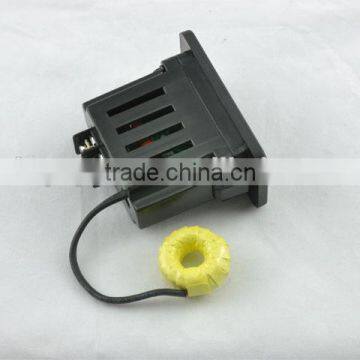

Digital Generator Meter GV05

GV05 Digital Generator Meter

u Brief introduction

GV05 is one light and low price-orientated module used for checking and demonstrating voltage, current,power,frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

u Features

• Ø Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
• Ø Results shown by 4-position digital LED tube
• Ø Self-recycling of parameters
• Ø With Page Turning Buttons
• Ø Extra working power is not needed

u Parameter demonstration

• Ø Phase voltage
• Ø Current
• Ø Power
• Ø Frequency
• Ø Run time
• Ø Accumulating time

u Range and accuracy

• Ø AC voltage:Phase voltage AC165-260V,Line voltage AC300-450V;Deviation≤±1%
• Ø Current: 0~30A/0~50A/0~90A,deviation≤±2%
• Ø Power:0~6Kw/0-10Kw/0-18Kw,deviation≤±2%
• Ø Frequency:45-70HZ,deviation≤±0.5%
• Ø Accumulated time:0-9999hours (min:0.1hours),deviation≤±1%.

u Specification

• Ø Power Supply: AC165~275V/ AC280~450V
• Ø Consuming power:MAX:1 W
• Ø Temperature: -40℃ ~ 75℃
• Ø Size (W * H * D):60mm * 33mm * 51mm
• Ø Installation Size(W * H): 51mm * 26mm
• Ø Weight:50g
