Electronic Type Yarn Evenness Tester with Measuring Meter

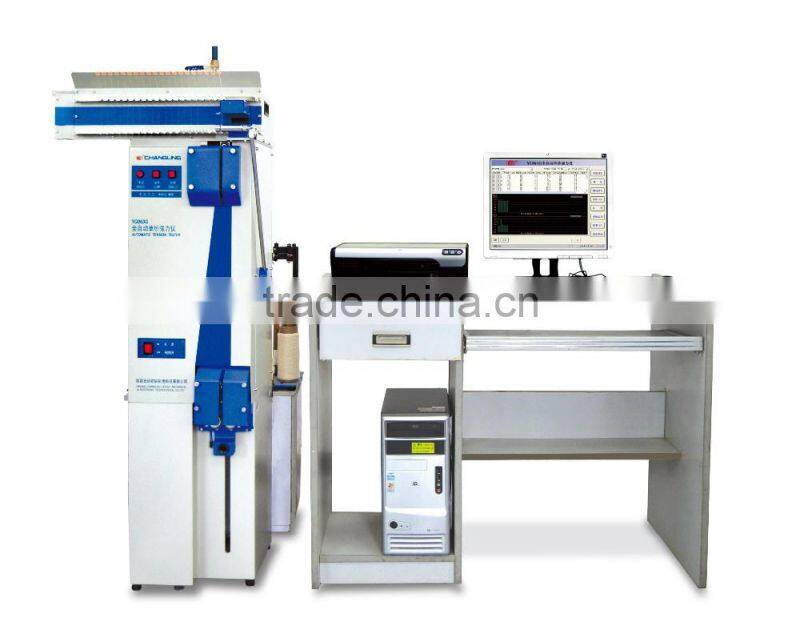

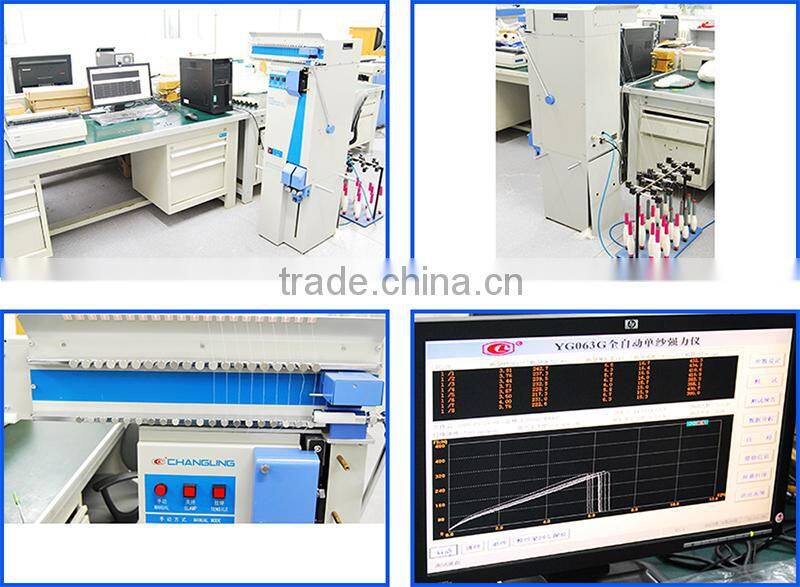

YG063G electronic type yarn evenness tester with measuring meter adopts constant rate of elongation (CRE) principle, which is suitable for testing breaking force index of single yarn or ply yarn of cotton, wool, man-made fiber blended, its performance all meet GB/T3916-1997 standard.This instrument is mainly composed of tester, computer, printer, yarn creel and worktable (equipped by user), computer is composed of host machine, display, mouse, keyboard.
Main features:
♦It adopts computer as control terminal and man-machine interface,data processing ability is high.
♦It adopts pneumatic holding device,soft reliable holding is not easy to damage yarn.
♦It has function of automatic eliminating abnormal data,correcting moisture regain,diagnosing fault.
♦Testing data is stable and reliable,which can be compared with UST3.
♦Testing efficiency is high,and 100 times tests of ordinary cotton yarn only need 8 min to 11 min.
| Testing principle | constant rate of extension (CRE) |
| Sample length | 500mm±1mm |
Force testing range | 0~5000cN, sensitivity<1.5cN |
| Elongation range | 0~250mm, error<±1mm |
| Tension speed range | 50mm/min~5000mm/min |
| Pre-tension range | 2cN~150cN |
| Interval sampling length | 0~100m |
| Testing contents | 1~100 time/tube, 1~40 tube/group, total numbers ≤2000 |
| Output index | breaking strength, breaking elongation rate, breaking time, |
| breaking work, breaking intensity, tension CV value, elongation | |
| CV value, max tension and elongation value, min tension and elongation value, | |
| minimal quintic average, fiducial interval,spline graph, splattering | |
| graph,histogram and breaking strength correction, etc. | |
| Power supply | voltage AC220V±10% |
| frequency 50Hz±5% | |
| power consumption ≤400W | |
| Environment | temperature 20℃±10℃ |
| humidity 60±15%RH |
♦Transportation
Transportation will be launched about 10 days after receiving the payment of the instrument.
♦After -sale service
No maintenance cost during ONE year warranty.And guarantee the southeast Asia and the central Asia company once a year.
♦Installation of new instrument
It is depending on the complexity of the instrument and the technology of the local technological staff.
♦What if the voltage different with China?
We considered that the foreign countries' plugs and the voltage is different with the plugs and the voltage in China,we can provide a booster or a buck converter for the foreign buyers.
♦Are you a manufacturer or trade company?
We are a professional manufacturer holding our own international trade department,for that we can better understand customer's needs and offer a reasonable price.
♦Others
In order to ensure that the buyers can using the facilities and simple maintenance,changling textile company will provide the place and the training resources for free for foreign buyers communicate and study in changling.
