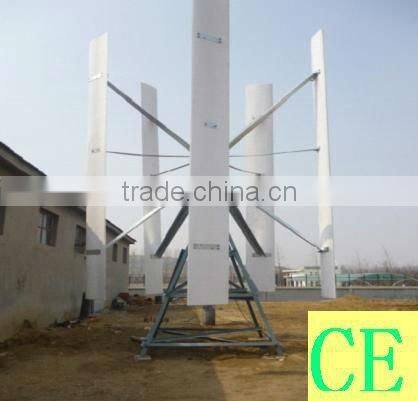

5KW VAWT Vertical Axis Wind Turbine Generator Hybrid Solar and Wind Power System

5KW VAWT Vertical Axis Wind Turbine Generator Hybrid Solar and Wind Power System photo-1
US$ 7,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
RICHUAN
Model Number:
RCVA-5KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name RICHUAN
Model Number RCVA-5KW
Type Wind Power Generator

Specifications

1.Low start-up wind speed
2.Permanent magnet generator
3.Low price
4.CE
5.environmental protection

5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system


Product Description



1.Product Parameters and Features



  off-grid:



Power

5000W

Type of generator

Permanent-magnet 216v A.C.

Rotor diameter:

3.5m

Blade Material:

FRP (Fiber glass reinforced*5)

Rated rotor speed

100r/min

Rated speed

12m/s

Rated Power

5000W

Max Power

5500w

Start up wind speed

3(m/s)

Work speed

3-25(m/s)

Security wind speed

40(m/s)

Height of guy cable tower

8m

Top quality except tower

250kg

Output controller system

Controller , Inverter



   on-grid:



Power

5000W

Type of generator

Permanent-magnet 240v A.C.

Rotor diameter:

3.5m

Blade Material:

FRP (Fiber glass reinforced*5)

Rated rotor speed

100r/min

Rated speed

12m/s

Rated Power

5000W

Max Power

5500w

Start up wind speed

3(m/s)

Work speed

3-25(m/s)

Security wind speed

40(m/s)

Height of guy cable tower

8m

Top quality except tower

250kg

Output controller system

Controller , Inverter







1.Low starting torque, low start-up wind speed.

2.Low speed permanent magnet generator.

3.No vibration & low noise.

4.All of our products confirm to CE .

5.Reliable wind power system by multifunction controller.

6.PWM constant voltage recharge function provides stable output.

7.On-grid or Off-grid wind power system optional.

8.2-year warranty for generator and 18-20 years service life.

9.Electronic brake and manual brake, optional.

10.High efficiency and Low mechanical resistance energy loss.

11.Special sealed wind turbines, moisture, sand and water proof.

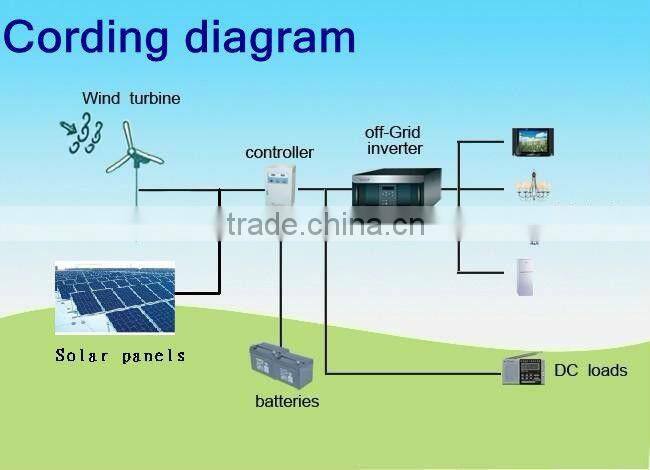

2. Control System:

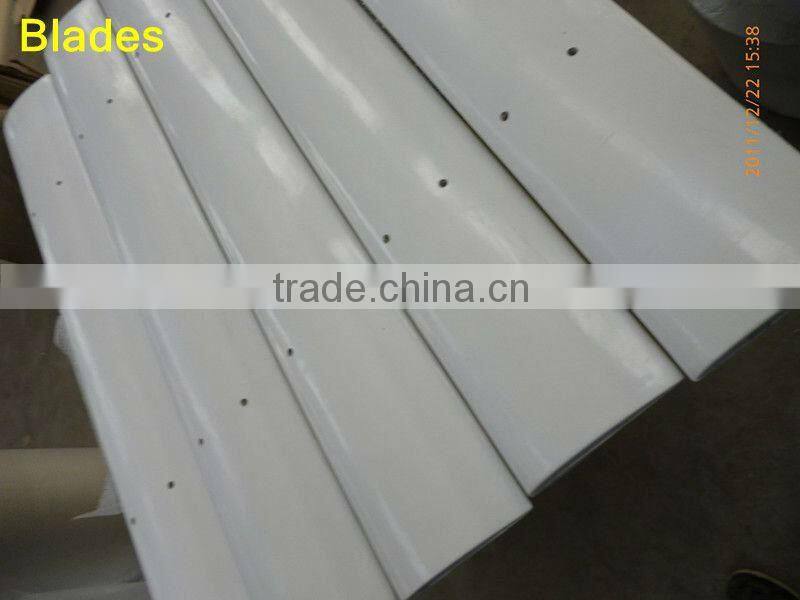

3. Pictures for Your Reference5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system



  5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system 5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system


FAQ



4.Notes

5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system

a. Tower type and tower height can be changed as per your request.

b. Working voltage can be special requested.

c. For the details,please feel free to contact us.


Company Information



High quality and competitive price guarantee us a huge market all over the world , such as in Eastern Asia , Europe , North America ,South America and Middle East .



5KW VAWT Vertical Axis Wind Turbine Generator hybrid solar and wind power system
