high efficiency 400w vertical axis Wind solar hybrid street lamp system

Specifications

400w vertical axis Wind solar hybrid street lamp system
1.high stability ,efficiency
2.Life span:20~25 years
3.CE



high efficiency  400w vertical axis Wind solar hybrid street lamp system



1.Product Description

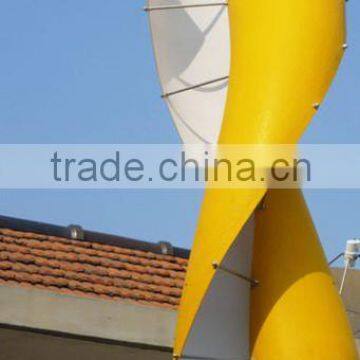

wind turbine

1. Low starting torque

2. Low start wind speed

3. Low speed permanent magnet generator

4. No vibration & low noise

5. All of our products confirm to CE

6. PWM constant voltage recharge function provides stable output

7. Reliable wind power system by multifunction controller

8. On-grid or Off-grid wind power system optional

9. 1 year warranty for generator and 18-20 years service life.

10. Electronic brake and manual brake, optional.

11. High efficiency and Low mechanical resistance energy loss.

12. Special sealed wind turbines, moisture, sand and water proof

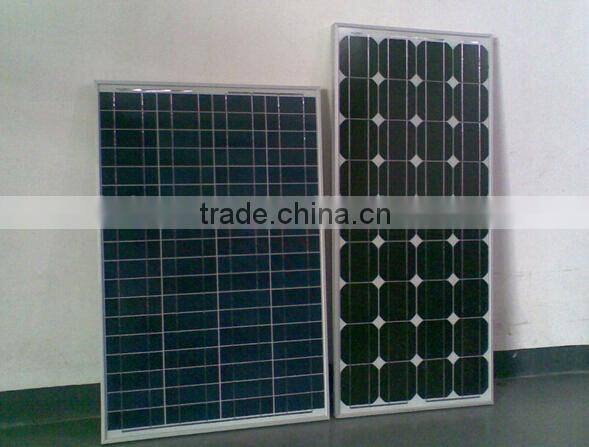

solar panel



1. High reliability with guaranteed +/-3% output power tolerance.

2. The modules can withstand high wind-pressure, snow load and extreme temperatures.

3.Bypass diodes to minimize power loss with shading.

4.High and stable conversion efficiency to ensure the highest quality.





2. Product parameter





Model	RC-WS-400W
Power	400W
Wind turbine power	300W
Solar panel power	100W
System DC voltage	24V
Charge control	automatic intelligent controll

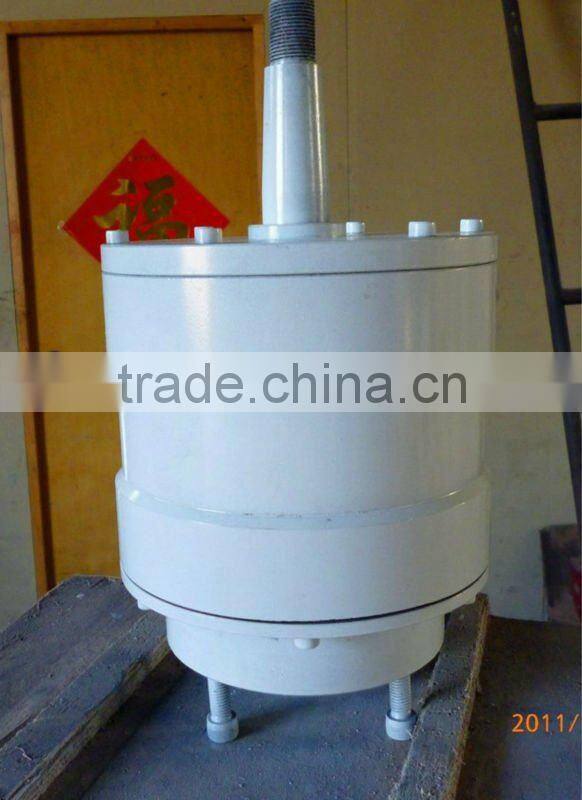

wind turbine generator





Wind turbine type	PMG (on constant magnets)
Rotor diameter	1.2M

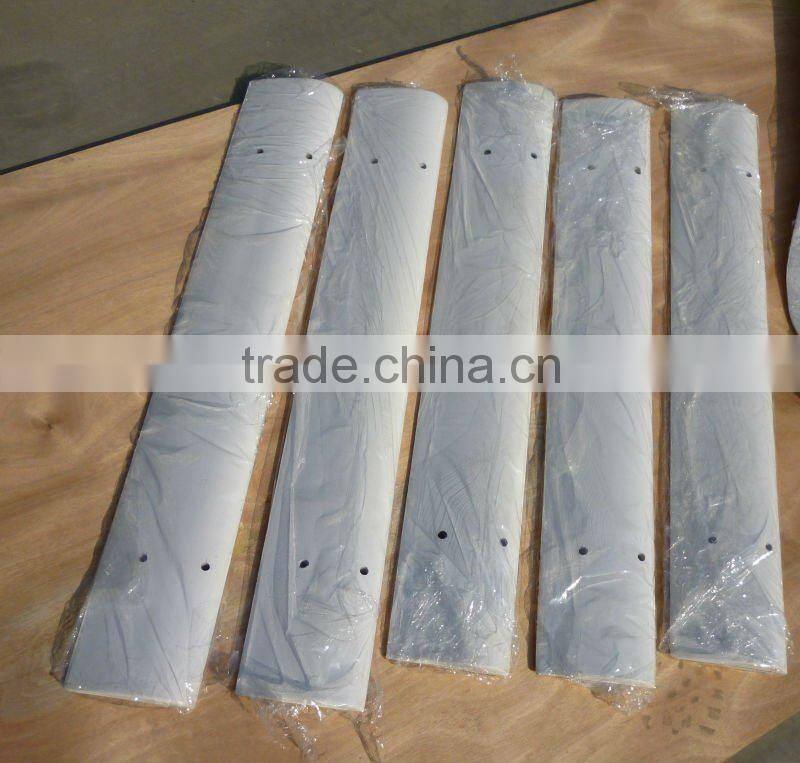

Blades material	FRP(composite material)
Rated wind speed	10m/s
Start wind speed	3m/s
Working wind speed	3-25m/s
Security wind speed	40m/s

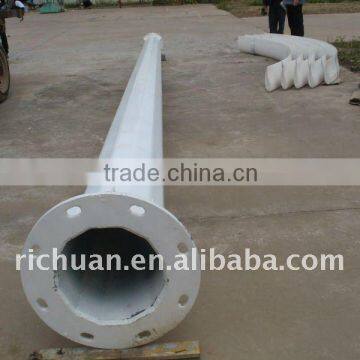

Tower type	steel(Q235B)
Tower height	8m
Weight(without tower)	54kg

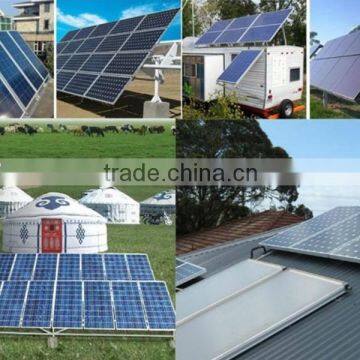

solar panel





Solar model	100W/50W 2PCS
Wp max	50W
Vmp	17.20V
Imp	4.65A
Voc	21.60V
Isc	5.71A
Size(mm)	935×670×35
Weight(kgs)	7.50







3. company profile









Qingdao Richuan Precision Machinery Co., Ltd. is a high-tech company located in Qingdao, engaged in the research, development, production, sales and service o small-and medium-scale wind turbines.

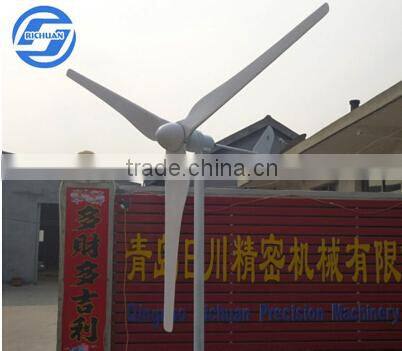

 Our main products include horizontal axis and vertical axis wind turbines, off-grid and grid-connected, solar panels and wind-solar hybrid lighting systems. These units are now widely used in agricultural and pastoral areas, mountainous areas, island, frontier defense sentry station, observatories and other areas with insufficient electricity and rich wind resources.



4. Note



1. Tower type and tower height can be changed as per your request.

2. Working voltage can be special requested.

3. For the details, please feel free to contact us.





5. Main Market



 High quality and competitive price guarantee us a huge market all over the world , such as in Eastern Asia , Europe , North America ,South America and Middle East .

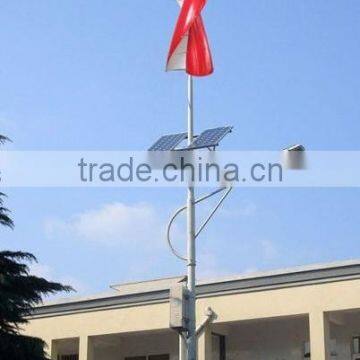

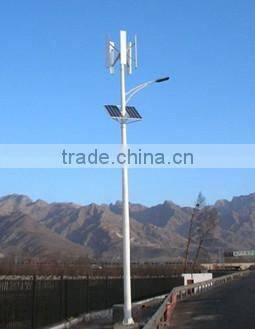

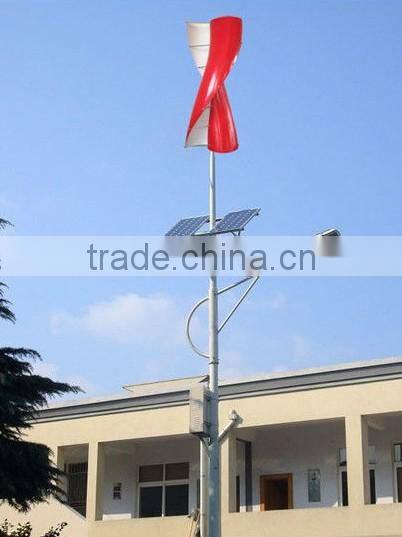

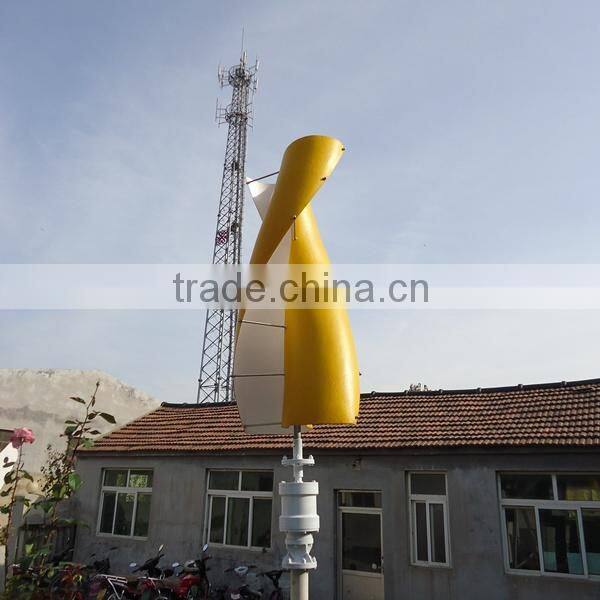

6. Pictures display





















 Any request, pls let me know!
