Product Description
High Performance CT3000 Evenness Tester and yarn tester
- Description
CT3000 Evenness Tester is based on the platform of virtual instrument structure. It’s capacitive and
photoelectric detection method ,high performance testing instrument for the textile laboratory.
It can be used to test evenness of yarns, hairness, roving, slivers which are spun with cotton, wool,
flax and short synthetic fiber. It is very helpful for improving and assuring quality of yarns.
- Features
1.Auto measuring ,guiding yarn,change slot ,roller back and forth,etc.
2.Yarn traction system adopts high-speed double active structures,and the top speed is up to 800m/min
3.Spectrogram adopts 170 channels,which makes user judge trouble position more accurately
4.It equips with expert analysis system ,which diagnoses and analyses each procedure automatically.
-
Key Specification of CT3000 Evenness Tester and yarn tester
The whole machine indicators |
Testing time: freely set between 10s and 20m, take 10s as interval |
hauling speed: 25m/min,50m/min,100m/min,200m/min,400m/min,800m/min | |
Batch test index: ≤20 | |
statistic index:mean,max,min,cvb,Q95 | |
input power:voltage AC220V±10%,frequency 50Hz/60Hz,power consumption ≤350W | |
Capacitance test index |
Capacitive measuring slots:four |
Testing range:1tex~12ktex | |
Coefficient of Variation:CV% or U% value testing range: 0.01%~99.99% | |
Faults value:thin places -30%, -40%, -50%, -60% | |
thick places +35%, +50%, +70%, +100% | |
neps +140%, +200%, +280%, +400% | |
The spectrum analysis range: ordinary spectrogram measurable wave-length range 1cm~2937m | |
spectrum channels 170 | |
fine spectrogram measurable wave-length range 1cm~2937m spectrum channels 340 | |
Aberrance-the length of the curve cutting length range:1cm~1472m | |
linear density frequency distribution graph:two linear density frequency distribution graphs, | |
one is within the range of -100%~+100%, one is beyond the range of +100% | |
drift rate-Threshold figure:reference length is given1cm,10cm,20cm,50cm,1m, | |
the threshold is 0 ~ 50% of the positive and negative deviation rate curve |

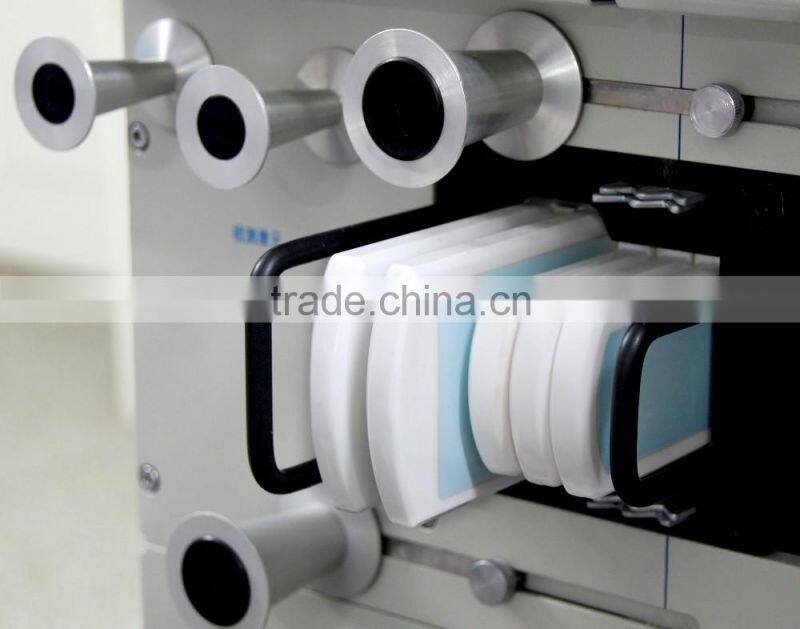

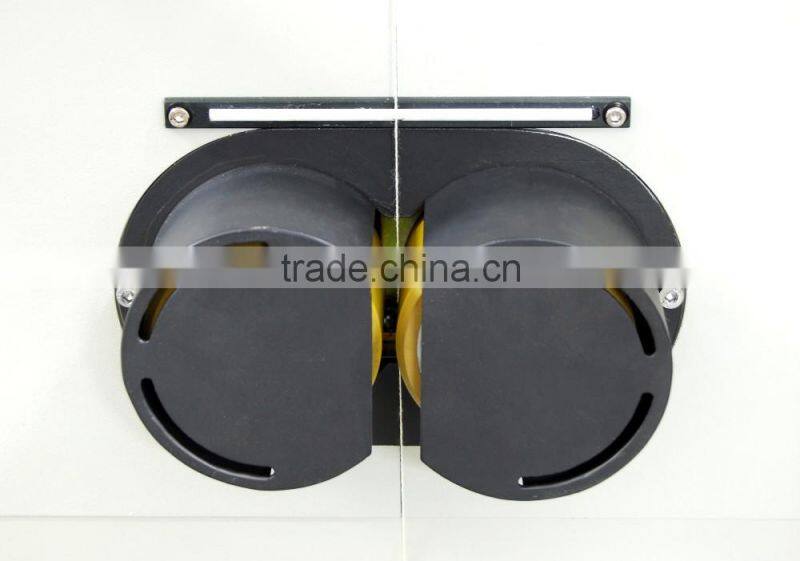

Detecting Until Pulling Roller
FAQ
1.Transportation:
Transportation will be launched about 10 days after receiving the payment of the instrument.
2.After-sale Service:
No maintenance cost during ONE year warranty.And we guarantee the southeast
Asia and the central Asia company once a year
3.Installation of New instrument
It is depending on the complexity of the instrument and the technology of the local technological staff.
4.What if the voltage different with China?
We considered that the foreign countries'plugs and the voltage is different with the plugs and voltage in China,we can provide a booster or a buck converter for the foreign buyers.
5.Others
In order to ensure that buyers can using the facilities and simple maintenance,Chang-ling txtile company will provide the place and the trainning resources for free for foreign buyers communicate and study in Changling.
