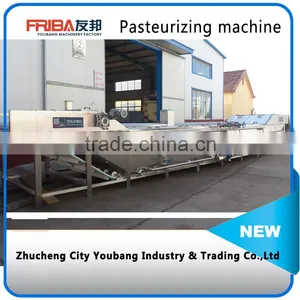

Help CenterTofu Pasteurization Machine
Related Products
-
Automatic Milk Product Pasteurization Sterilizer EquipmentUS$ 20000.00 - 20000.00MOQ: 1 Set -
Canned Food Pasteurization MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Steam Heating Pasteurization MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Pouch Sterilization MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Harmonious Milk/yogurt Pasteurization MachineUS$ 5,000 - 50,000MOQ: 1 Set
Scope Application
It is suitable for sterilization under 100℃ and cooling of flexible packed vegetables, low temperature meat product, harmonious milk, leisure food, cans, glass bottles, pickled vegetables, seasoning packet and so on
The pasteurization machine is produced by high-quality stainless steel, and using advanced control instrument, the appearance is beautiful, operation and maintenance is convenient.
The present labor intensity is low compared with sterilizing pool sterilizing , it has high degree of automation control, temperature can be controlled within 98 °C automatically , the water temperature difference of upper level and lower level is small.
It is easy to control the quality of the products, the machine in full compliance with GMP, HACCP certification requirements, it is healthful and high efficiency, so it is the ideal machine for the food processing .
Technical parameters
Sterilization time |
10-40min |
Steam pressure |
1-4kg |
Cooling model |
The normal temperature or the forced ice water |
Reticular belt width |
500-1200mm |
Air consumption |
0.5-1.0m3/h |
Sterilization temperature |
65°C-95°C(adjustable) |
Processing capacity |
Be designed according to customers requirements |
Running speed |
Stepless speed regulation |
Power |
Normal temperature:3KW Ice water:22KW |
Power supply |
380V,50HZ(or customized) |
The main parts of machine
Serial number |
Name |
Material |
Remark |
1 |
Steel plate |
SUS304 |
The world famous brand |
2 |
Stainless steel mesh belt |
SUS304 |
China famous brand
|
3 |
Stainless steel pipe |
SUS304 |
|
4 |
Reducer |
|
The world famous brand
|
5 |
Temperature sensor |
|
|
6 |
Steam conditioning film valve |
|
|
7 |
Thermal protector |
|
|
8 |
Eelectrical components |
|
The world famous brand
|
9 |
Water circulating pump |
|
Chinese best brand |
10 |
Frequency converter |
|
The world famous brand |
11 |
Corner sprocket |
SUS304 |
China famous brand |
12 |
Bearing |
SUS304 |
Chinese Standard |

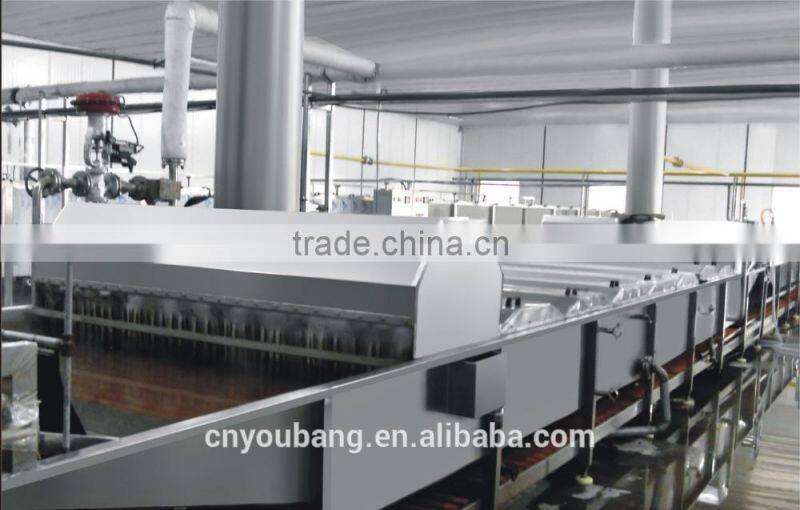

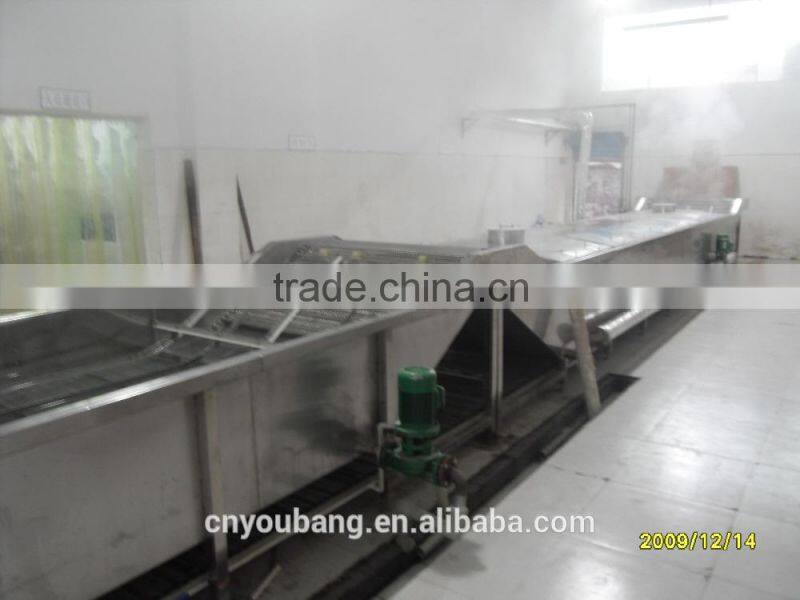

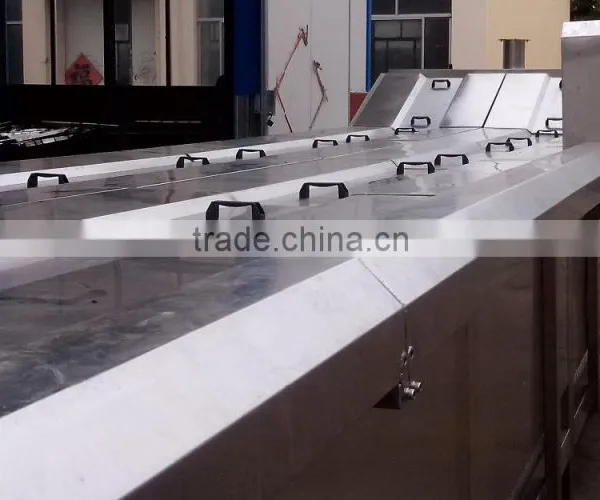

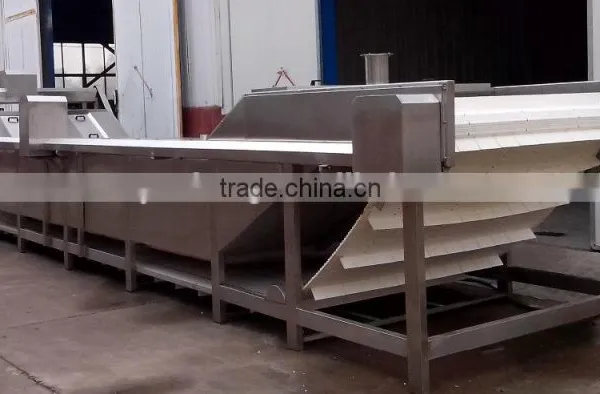

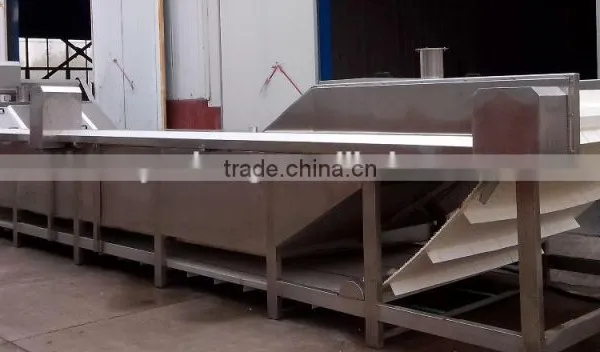

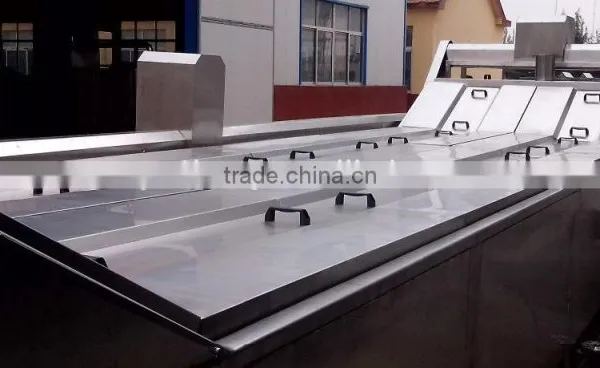

The machine in workshop
Zhucheng Youbang Industry & Trading Co.,Ltd
Yangjialing Indrustial park, Mizhou St., Zhengcheng Shandong
Mobile :18265607822
Fax :0536-6054697
