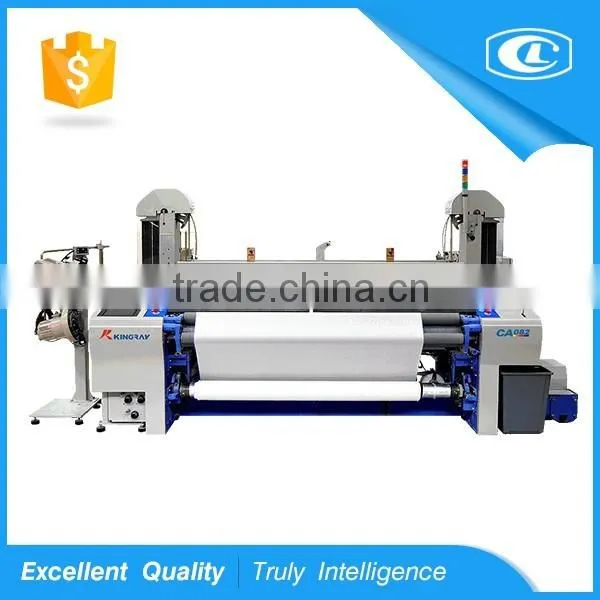

CA082 series of air-jet loom
CT3000 Evenness Tester YG063G Automatic tension tester
Weaving width range (cm): 190~360
Range of yarns: Spun:Nm200~Nm8. 5 Filament:33~667dtex
Weft selection: 2~8 colours
Main driver: Rush-start motor,3.0kW, 3.7kW, 5.5kW (Jacquard)
Power supply: Three phase 380V(AC), 50/60Hz
Shedding: Negative cam shedding, Positive cam shedding,
Positive dobby shedding

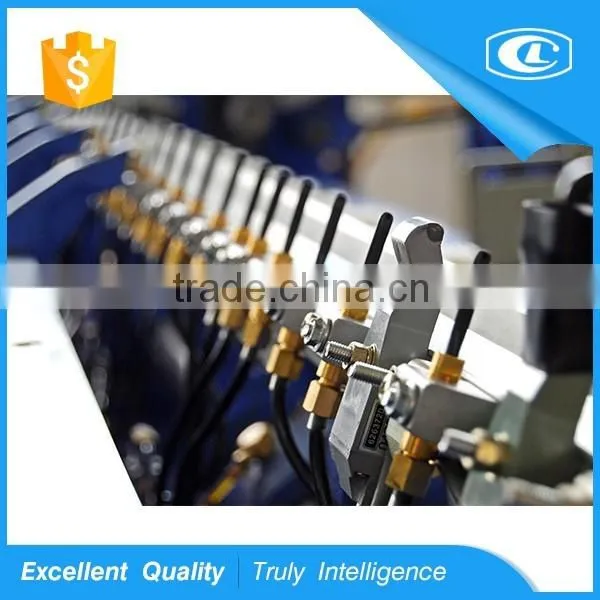

Weft insertion: Main nozzles combined with auxiliary main nozzles,
Relay nozzles for different colour control and supportive control,
AJC picking automatic control , first pick control
Weft insertion rate: 1200m/min~2000m/min
Let-off and Take-up: Double back roller,active warp easing
Electronic let-off with automatic reverse function
Electronic take-up
Pick density range :25~250pcs/inch
Beating: 4 rods beating (width 280cm below),
6rods beating (width 280cm and above),

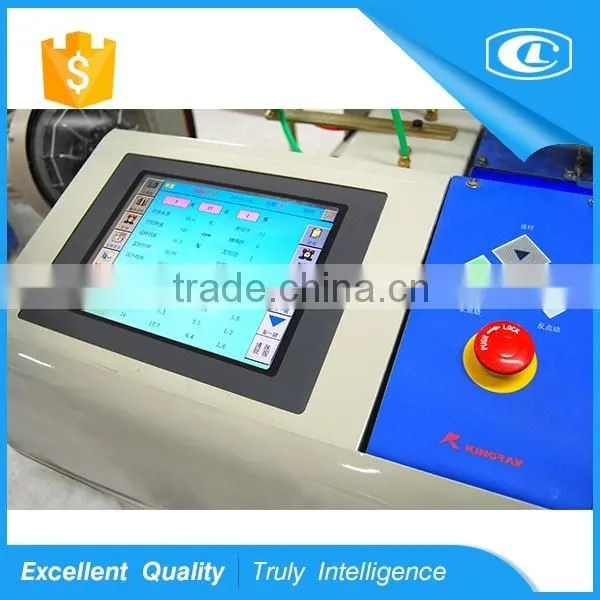

Automatic: Artifical intelligent touch screen with functions of parameter setting,
Auto-control ,automatic monitoring, self diagnosis.
FAQ
1.Transportation:
Transportation will be launched about 10 days after receiving the payment of the instrument.
2.After-sale Service:
No maintenance cost during ONE year warranty.And we guarantee the southeast
Asia and the central Asia company once a year
3.Installation of New instrument
It is depending on the complexity of the instrument and the technology of the local technological staff.
4.What if the voltage different with China?
We considered that the foreign countries'plugs and the voltage is different with the plugs and voltage in China,we can provide a booster or a buck converter for the foreign buyers.
5.Others
In order to ensure that buyers can using the facilities and simple maintenance,Chang-ling txtile company will provide the place and the trainning resources for free for foreign buyers communicate and study in Changling.
