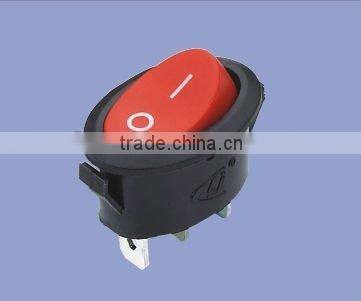

Mini Round Rocker Switches in AC 10A 16A 250V

Mini Round Rocker Switches in AC 10A 16A 250V photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
mini round rocker switches
Model Number:
KCD1-B7
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name mini round rocker switches
Model Number KCD1-B7
Protection Level IP65
Max. Current 16A
Max. Voltage 250V

Specifications

1.mini round rocker switches in AC 10A 16A 250V
2.6A 125V
3.100% test before shipment
4.more than 10000cycles life
5.CE

mini round rocker switches in AC 10A 16A 250V









mini round rocker switches in AC 10A 16A 250V











mini round rocker switches in AC 10A 16A 250V











Actuator (non-lighted): Nylon 66 94V-2
Actuator (lighted):Polycarbonate
Case:Nylon 66 94V-2
Spring:Steel Wire
Contacts:Silver Alloy
Movable Arm:Silver-Plated Copper Alloy
Terminals:Tin-Plated Copper Alloy

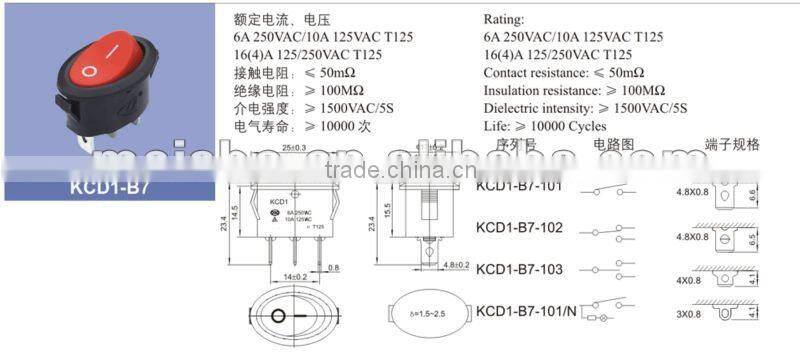

SPECIFICATIONS
Ratings:
4A 6A 10A 16A 250V  125VAC
Electrical Life at Rated Load10,000 (VDE)
6,000 (UL)
Dielectric Strength1500vac/5S
Insulation Resistance:100MΩ min
Initial Contact Resistance: 50MΩ  max
Temperature Range:-20°C to +85°C



  • High current rating to 20 amps
  • New style with rounded corners
  • Lighted and non-lighted
  • Maintain-action and momentary
  • Available in a variety of colors
  • Mechanical life: min. 50,000 operations

 mini round rocker switches in AC 10A 16A 250V
