Help CenterBOPP Adhesive Tape Slitting and Rewinding Machine During Canton Fair
Related Products
-
OPP Tape Slitting MachineUS$ 6,000 - 12,000MOQ: 1 Set -
OPP Tape Slitting and Rewinding MachineUS$ 6,000 - 12,000MOQ: 1 Set
-
OPP Tape Slitter and Rewinder MachineUS$ 6,000 - 12,000MOQ: 1 Set
-
HFT BOPP Tape Slitter and Rewinder MachineryUS$ 5,000 - 8,500MOQ: 1 Set
-
BOPP Adhesive Tape Slitting and Winding LineUS$ 5,000 - 8,500MOQ: 1 Set

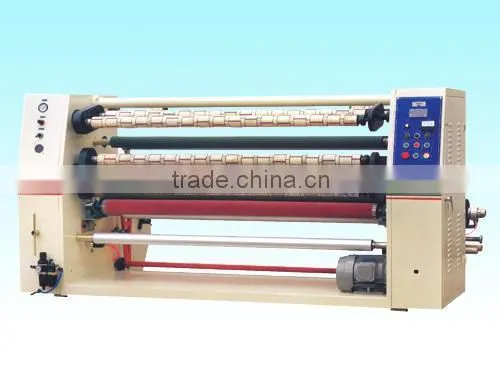

BOPP adhesive tape slitting and rewinding machine applicable for slitting all kinds of Bopp tapes, masking paper, cellophane and others.
Main technical parameters :
Guiding roller width |
1330MM |
Max unwinding diameter |
600MM |
Min slitting width |
12MM |
Max rewinding diameter( four shaft exchange) |
250MM |
Max rewinding diameter( two shaft exchange) |
400MM |
Machine speed |
0-180M/MIN |
Blade size |
0.2*22*60MM |
Total power |
5HP |
BOPP tape poduction line Including :
Paper core cutter
Paper core loading machine
Mini rewinding macine
Features:
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length.
It can automatically decelerate and stall when operating at high speed.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is
adopted with the dual control equipped with the clutch and the independent slide setting for free
adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. (Optional) Auto labeling and slitting stationery tape functions.
