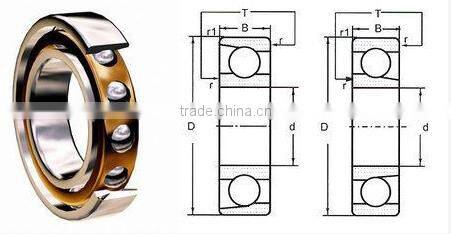

| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||||
| d | D | B | rs min | r1s min | Cr | Cor | Grease | Oil | (Approx.) | CLUNT |
| 40 | 80 | 18 | 1.1 | 0.6 | 36.9 | 25.6 | 7500 | 10000 | 0.369 |
7208C |

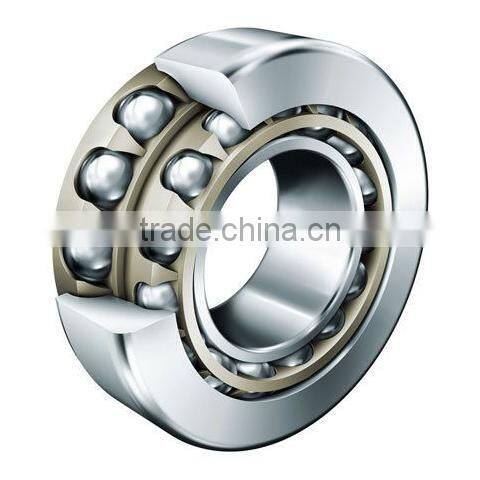

A part of Angular Contact Ball Bearing
| 7316C | 36316 | 80×170×39 | 3.6 |
| 7316AC | 36316F | 80×170×39 | 3.95 |
| 7317C | 36317 | 85×180×41 | 4.3 |
| 7317CJ | 36317F | 85×180×41 | 4.97 |
| 7318C | 36318 | 90×190×43 | 5 |
| 7318CJ | 36318F | 90×190×43 | 4.99 |
| 7318CM | 36318 | 90×190×43 | 5.79 |
| 7318C | 36318J | 90×190×43 | 4.92 |
| 7318CM | 36318H | 90×190×43 | 5.64 |
| 7319C | 36319 | 95×200×45 | 5.7 |
| 7319CM | 36319 | 95×200×45 | 6.67 |
| 7319CM | 36319H | 95×200×45 | 6.73 |
| 7320C | 36320 | 100×215×47 | 7.6 |
| 7320CM | 36320H | 100×215×47 | 8.54 |
| 7320CJ | 36320F | 100×215×47 | 7.24 |
| 7321C | 36321 | 105×225×49 | - |
| 7322C | 36322 | 110×240×50 | 11.266 |
| 7322CM | 36322H | 110×240×50 | 11.35 |
| 7324C | 36324 | 120×260×50 | - |
| 7324CM | 36324H | 120×260×50 | 13.5 |
| 7326C | 36326 | 130×280×58 | 17.4 |
| 7328C | 36328 | 140×300×62 | 21.5 |
| 7330C | 36330 | 150×320×65 | 25.1 |
| 7332C | 36332 | 160×340×68 | 30.2 |
| 7334C | 36334 | 170×360×72 | 35.7 |
| 7336C | 36336 | 180×380×75 | 41.3 |
| 7338C | 36338 | 190×400×78 | 47.6 |
| 7340C | 36340 | 200×420×80 | 53.7 |
Packaging
(1)plastic bag + kraft paper + carton box + plywood pallet
(2). As the customers' requirement.
Delivery Details:10-20 days

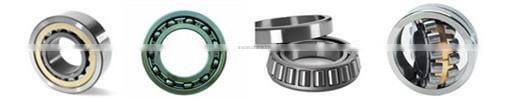

| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
Who are we?
We are professional bearing supplier and manufacturer,not only the trade company,
we are engaged in bearing industry more than 20 years.And we have a wide variety
of bearings in huge stocks.
Big Bearing, Huge Stock, Complete Model, Factory Price, Good Quality.
Manufacture According To Drawings And OEM Service.
LYDC's big stock
1.Could you supply sample for free?
Yes, we can supply sample for free, but need our customer afford freight.
2.Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
3.Can we customize the bearings?
Yes, sure. We can customize the bearings as your requirements.
4.How does your factory do regarding quality control?
Quality first is our principle.We always attach great importance to quality control
from the every beginning to the end of the production. Every product will be fully
assembled and carefully tested
