Specifications
1.11Years'experience2Brand pulverizer,shredder,sifter,separator
3Lifetime warranty
4.Lowest price
5.ISO9001SGSCertification
Tire Retreading Best Shredders /Tire Best Shredders
We produce rough crusher, shredder,automatic tire cutter,bead-wire drawing machine,tire splitting machine,separator,screener,conveyer and all kinds of waste tire recycling machines,and with the strong technology we can accept custom made!
Tel: +86-510-66200163
cell phone: +86-151-6165-5901
Contact:Mandy Van
Skype:mandy20120903
China Expert on Waste Rubber Pulverization
Background: Waste tyre is solid waste in Britain, Canada or other developed countries, so got it with lower prices, may have a big wealth, because waste tyre really is a treasure for its broad use.
In recent years, with the development of industry, waste tyre can play an important role , whether bias tyre or radial tyre, its main component is rubber, metal, textile,, these materials can be recycled. With radial tyre for example, 25% of steel wire can be processed into steel grit, as shipyard derusting, every tons of price is RMB5000, also can make steel ball for cement mill every tons of price is RMB6000. And 75% of rubber mixture, can be processed into fine glue powder, every tons of price is RMB3000, for other hand this waste rubber can be processed into reclaimed rubber, every tons of price is RMB4000, these material has been widely used in rubber industry, building materials industry and plastics, coatings, highway, etc. So waste tyre isn't junk but the recycling of renewable resources.
Main Processing:
1.steel wire drawer: separate the wire in the tyre.
2.whole tyre crusher: crush the tyre to 30-80cm chips
3.rubbing/cutting machine: coarse crushing, fine milling, separating steel wire etc .
4.rubber powder screener: grading the crude fibre and rubber powder.
5.Belt Iron separator: mainly applied for separating the iron materials from the rubber particles.
6.Magnetic roller Iron separator: can be effectively used for separating small iron powder.
7.rubber fiber separator: used in separating the fine fluff fibre mixed in rubber powder.
8. rubber fine miller: fine grind the rubber granule to 5-100mesh.
Tire Retreading Best Shredders /Tire Best Shredders
Introduction:

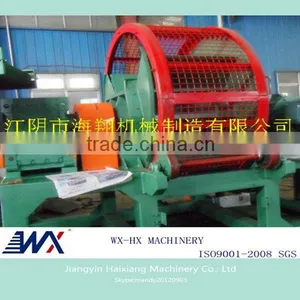

ZPS Tire Shredder is used to shred radial tire and fiber tire into chips of 50*50mm size in ambient process, the tire needs to be debeaded before shredding. It mainly consists of motor, speed reducer, machine frame, shredding blades, rotary screener, transmission system, etc.
Structure and Principle
1. The shredding chamber adopts folio compact structure for easy maintenance;
2. The shredding blade edges are made of hard alloy after special hardness treatment, wear-proof. The blade edges are made replaceable without dismantling the machine, blades changing and repairing jobs are made easy and not costly any more. Heavy-duty, advanced technology and high output;
3. The machine adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;
4. The rotary screener is of steel net structure which has large area for screening qualified size of tire chips to discharge quickly. Low consumption, high output and advanced technology.
Technical Data:
Model |
900 |
1300 |
Capacity (T/H) |
0.8~3 |
2~5 |
Feeding size (mm) |
≤ Ø 850 |
≤ Ø 1250 |
Output size (mm) |
≤ 50*50 |
≤ 60*60 |
Motor power (Kw) |
45+4 |
155+7.5 |
Main shaft speed (RPM) |
16 |
13 |
Weight (T) |
7.6 |
21 |
Delivery time: 25-35 days after receiving 30% deposit.
Service: Provide Installation, maintenance and technical guidance for life.
Guarantee:Quality free for One year,maintainance for lifetime
P.S:The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
