Specifications
1.11Years'experience2Brand pulverizer,shredder,sifter,separator
3Lifetime warranty
4.Lowest price
5.ISO9001SGSCertification

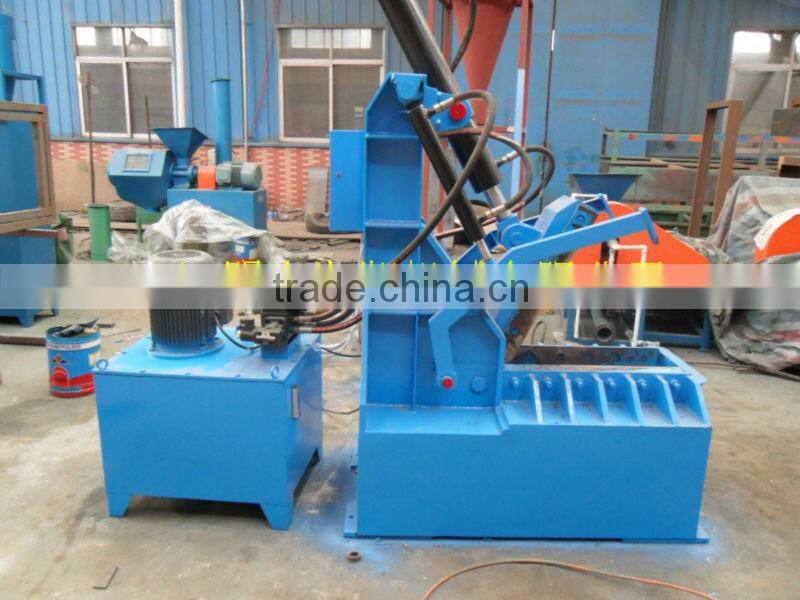

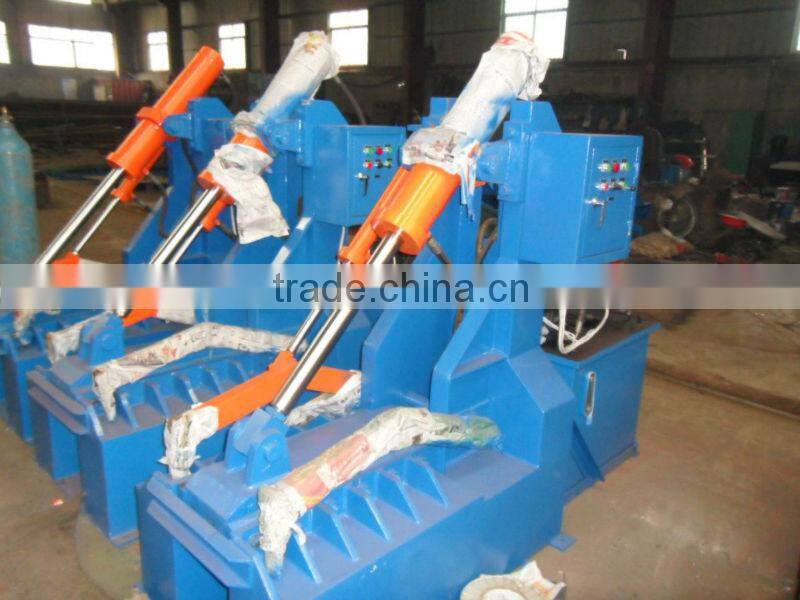

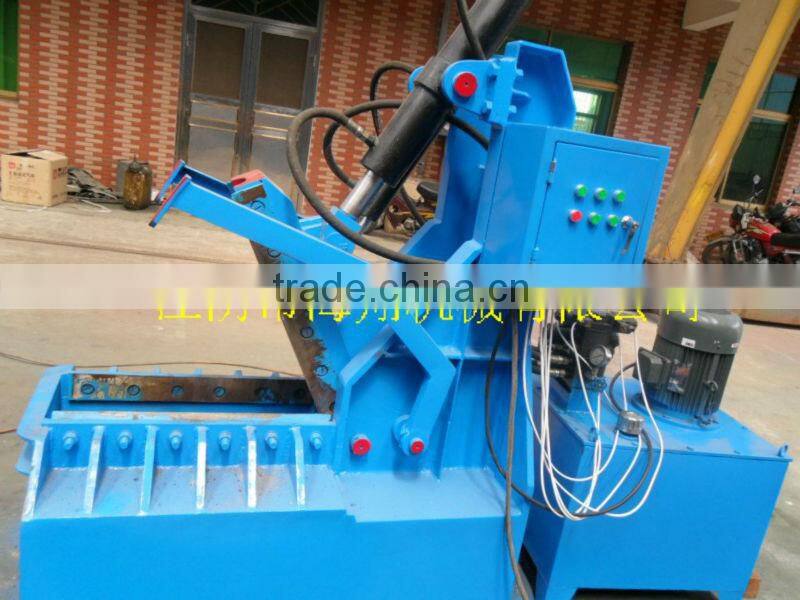

Waste Tyre Cutting Machine/Used Tyre Cutter/Used Tire Cutting Machine
We produce rough crusher, shredder,automatic tire cutter,bead-wire drawing machine,tire splitting machine,separator,screener,conveyer and all kinds of waste tire recycling machines,and with the strong technology we can accept custom made!
Tel: +86-510-66200163
cell phone: +86-151-6165-5901
Contact:Mandy Van
Skype:mandy20120903
Advantage:
1.11Years'experiences manufacturer
2.China expert on waste rubber pulverization
3.Brand pulverizer,shredder,crusher,screener,separator,grinder
4.Lifetime warranty,lowest price
5.ISO9001,SGS certification
Specifiction:
1.Convenient in operation and with good safety protection
2.High efficiency, low energy consumption
3.Widely used cutting machine
4.Big knives , high efficience
5.Hydraulic type
Usage:
It could be applied to cut all kinds of rubber blocks and strips. It is good for cutting rubber tyre, rail tyre, rubber strips etc.
Construction & Principle: :
It mainly consists of the motor, cutting blades, static blades, frame, oil cylinder, hydraulic system, control box, etc.
Its basic principle is: The oil cylinder and hydraulic system are driven by a motor. Put the tyre without wire bead on the stand of the static blades. The tyre is fixed by locking arms tightly then cut by the blades driven by oil cylinder. The tyre is cut into several blocks, which will be more easily crushed or shredded for the next process.
Technical Data:
| Model: | 900 | 1200 |
| Capacity(pcs/h) | 10~30 | 20~40 |
| Handling tire(mm) | ≤1000 | ≤1200 |
| Main power(kw) | 5.5 | 7.5 |
| Working pressure(mpa) | 8 | 12 |
| Length of Blade(mm) | 680 | 800 |
| Cylinder Hydraulic(mm) | 125 | 150 |
| Weight(T) | 1.2 | 2.2 |
Delivery time: 25-35 days after receiving 30% deposit.
Service: Provide Installation, maintenance and technical guidance for life.
Guarantee: free for One year
