Specifications

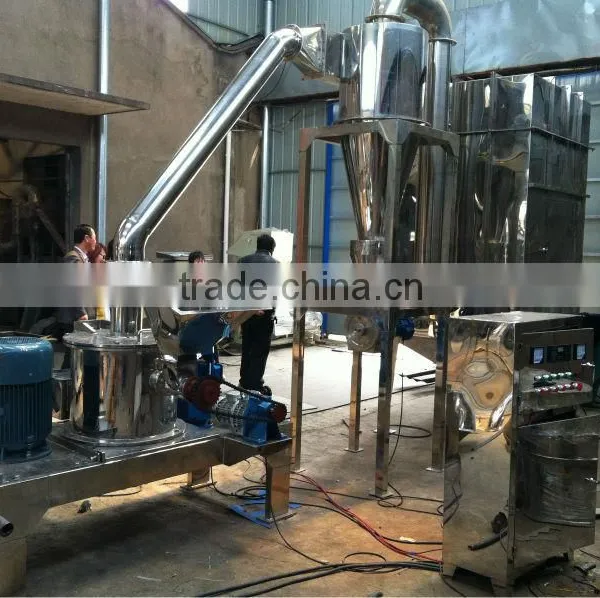

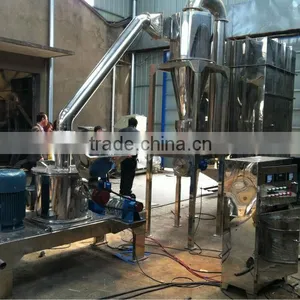

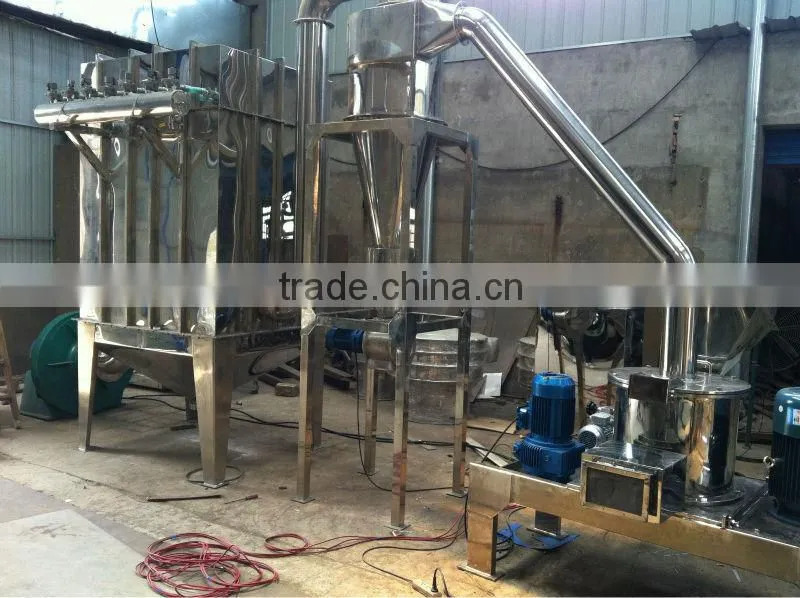

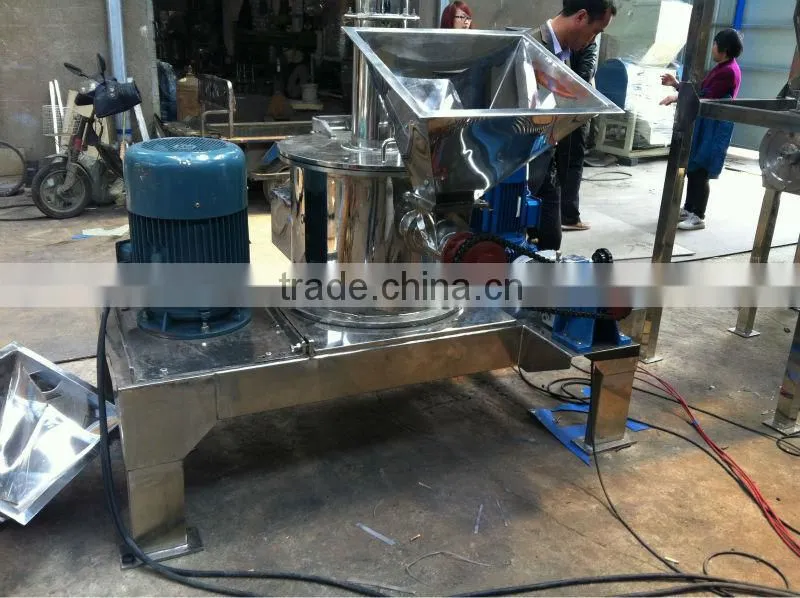

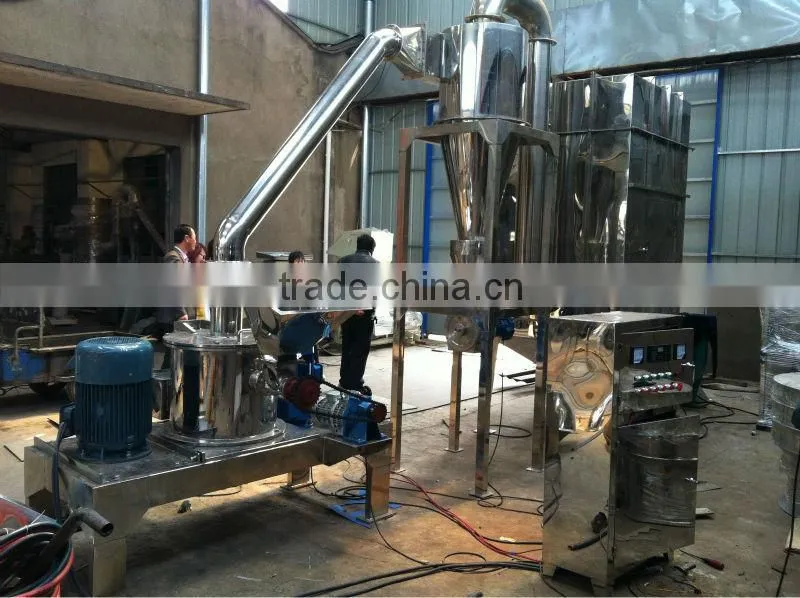

The machine has no screen mesh, negative pressure operation, by winnowing the material to achieve the requirement of the grindinWFJ-15/20 herb pharmaceutical micro pulverizer
Main Application:
Model WFJ-15/20 Micronizer consists of main motor,auxiliary motor,and electrical control cabinet with the capabilities of winnowing,non-sieve or mesh,equality of granule size,and continuous processing etc.It is used in the industries of pharmaceutics,chemical,and food.Its performance is up to the international advanced level.
Operating Principle:
The material is sent to grinding chamber through hopper and screw conveyer, and then pulverized by high speed rotary blades.Processed fine material are winnowed and collected by the negative pressure of an air intake of a blower,dust collector is included.
Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
| Model | Production Capacity(kg/h) | Feeding Size(mm) | Size of output granules(mesh) |
| WFJ-15 | 10~200 | <10 | 80~320 |
| WFJ-20 | 20~300 | <12 | 80~320 |
| Total power(kw) | Main speed(r/min) | Overall Size(L×W×H) | Weight(kg) |
| 13.5 | ~6000 | 4200×1200×2700 | 850 |
| 17.5 | ~4800 | 4700×1250×2900 | 1250 |
